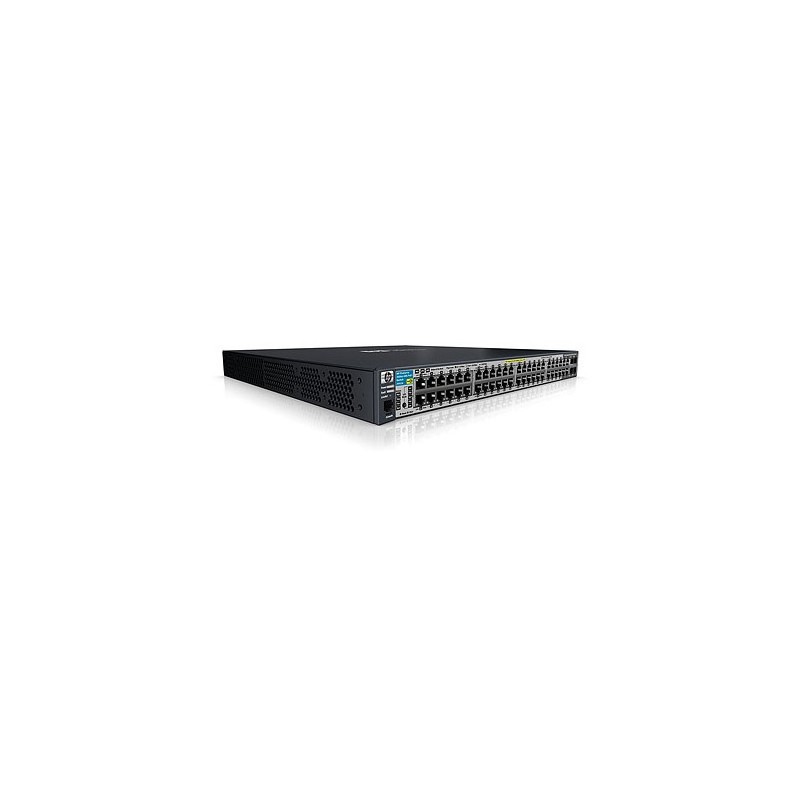

HP  E3500-48G-PoE+ yl Switch
  • HP  E3500-48G-PoE+ yl Switch
The HP E3500 Switch Series consists of the most advanced intelligent edge switches in the HP Networking product line. The E3500 series includes 24-port and 48-port fixed-port switches. The foundation for all these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of Gigabit and 10/100 interfaces; integrated PoE+, PoE, and non-PoE options; and versatile 10-GbE connectivity (CX4, X2, and SFP+) on Gigabit switches, the E3500 switches offer excellent investment protection, flexibility, and scalability, as well as ease of deployment, operation, and maintenance.

Quality of Service (QoS)


• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis



Management


• Remote Intelligent Mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP E8200 zl, E6600, E6200 yl, E5400 zl, or E3500 switch anywhere on the network



Connectivity


• IPv6: IPv6 host: enables switches to be managed and deployed at the IPv6 network's edge. Dual stack (IPv4 and IPv6): transitions from IPv4 to IPv6, supporting connectivity for both protocols . MLD snooping: forwards IPv6 multicast traffic to the appropriate interface. IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic, preventing traffic flooding. IPv6 routing: supports static and OSPFv3 routing protocols.



Performance


• High-speed/capacity architecture: up to 153.6 Gbps crossbar switching fabric provides intra- and inter-module switching with up to 111.5 million pps throughput on the purpose-built ProVision ASICs



Resiliency and high availability


• Virtual Router Redundancy Protocol (requires Premium License): allows groups of two routers to dynamically back each other up to create highly available routed environments



Layer 2 switching


• IEEE 802.1ad QinQ (requires Premium License): increases the scalability of an Ethernet network by providing a hierarchical structure; connects multiple LANs on high-speed campus or metro network



Layer 3 services


• User Datagram Protocol (UDP) helper function: allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP

10G support Yes
Access Control List (ACL) Yes
Acoustic pressure emissions 42 dB
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 44
Broadcast storm control Yes
Built-in processor PowerPC 8540
Combo SFP ports quantity 4
Connectivity technology Wired
Console port RS-232
Copper ethernet cabling technology 1000BASE-T,1000BASE-TX,100BASE-TX,10BASE-T
DHCP client Yes
DHCP server Yes
Dimensions (WxDxH) 443 x 430 x 44 mm
Electromagnetic compatibility FCC, VCCI, EN/CISPR
Expansion slots 1
Flash memory 4 MB
Flow control support Yes
Full duplex Yes
Heat dissipation 1144 BTU/h
IGMP snooping Yes
Input current 7.3/3.3 A
Input frequency 50/60 Hz
Input voltage 100 - 240 V
Internal memory 256 MB
IP routing Yes
Latency 3.4µs/2.1µs
Link aggregation Yes
MAC address table 64000 entries
Management protocols SNMPv1/v2c/v3, LLDP, IGMPv3
Maximum data transfer rate 1 Gbit/s
Memory type DDR
MIB support MIB II, Bridge MIB, RIPv2 MIB, OSPFv2 MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, VRRP MIB, Ping MIB
Multicast support Yes
Networking features Gigabit Ethernet
Networking standards IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
Noise level 58 dB
Number of queues 8
Number of VLANs 2048
Operating altitude 0 - 4600 m
Operating relative humidity (H-H) 15 - 95 %
Operating temperature (T-T) 32 - 131 °F
Power consumption (typical) 638 W
Power over Ethernet (PoE) Yes
Processor frequency 666 MHz
Quality of Service (QoS) support Yes
Rate limiting Yes
Routing entries 10000
Safety CSA, UL, IEC, EN
Security algorithms 802.1x RADIUS,SSH,SSL/TLS
SFP/SFP+ slots quantity 4
Spanning tree protocol Yes
SSH/SSL support Yes
Stackable Yes
Static port security Yes
Storage relative humidity (H-H) 15 - 95 %
Storage temperature (T-T) -40 - 70 °C
Supported data transfer rates 10/100 Mbps
Supported network protocols IPv6, HTML, Telnet, UDP, TFTP, ICMP, TCP, ARP, BOOTP, SNTPv4, CIDR
Switch layer L3
Switch type Managed
Switching capacity 153.6 Gbit/s
System event log Yes
Throughput 111.5 mpps Mpps
Web-based management Yes
Weight 7050 g
Wi-Fi No
Weight (imperial) 15.54 lbs
Dimensions (W x D x H) (imperial) 17.44 x 16.93 x 1.73 "

Specific References

EAN13
0884962722800

Hewlett Packard Enterprise E3500-48G-PoE+ yl

HP E3500-48G-PoE+ yl Switch
Out of Stock
£4,128.41
Tax excluded
Reference: J9311A
Quantity
