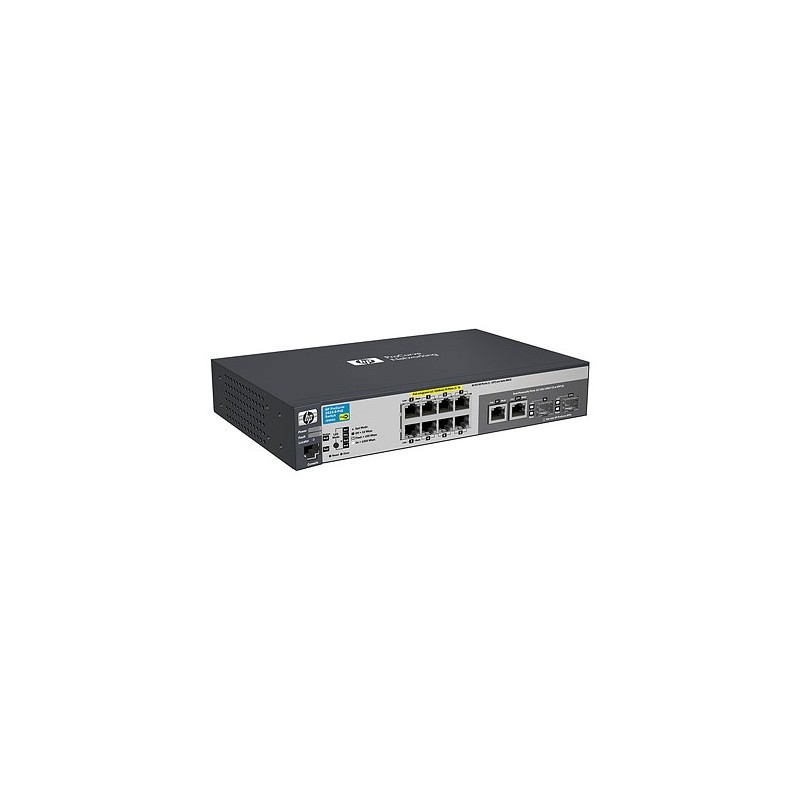

HP  ProCurve 2615-8-PoE Switch
  • HP  ProCurve 2615-8-PoE Switch
The HP E2615-8-PoE Switch is a fully managed 8-port 10/100 switch with an additional 2 dual-personality Gigabit ports for copper or SFP connectivity. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, a free lifetime warranty, and free software updates, the HP E2615-8-PoE Switch is a cost-effective solution. The HP E2615-8-PoE Switch is fanless, providing quiet operation and making it ideal for deployments in open spaces. In addition, the compact form factor allows for flexible deployments, including wall, surface, or rack mounting. These switches can be deployed at enterprise edge and remote branch offices, as well as converged networks.

Management


• Choice of management interfaces: Web graphical user interface (GUI): easy-to-use graphical interface allows configuration of the switch from any Web browser. Command-line interface (CLI): robust command-line interface provides advanced configuration and diagnostics. Simple Network Management Protocol (SNMPv2c/SNMPv3): allows switch to be managed with a variety of third-party network management applications.



Connectivity


• Dual-personality functionality: two 10/100/1000 ports or SFP slots provide optional fiber connectivity such as Gigabit-SX, -LX, -LH, 100-FX, 100-BX, and 1000-BX



Resiliency and high availability


• IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w



Layer 2 switching


• GARP VLAN Registration Protocol (GVRP): allows automatic learning and dynamic assignment of VLANs



Layer 3 routing


• Static IP routing: provides manually configured routing; includes ECMP capability



Security


• Access control lists (ACLs): provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number



Convergence


• IP multicast snooping and data-driven IGMP: automatically prevents flooding of IP multicast traffic

10G support No
Access Control List (ACL) Yes
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 8
Broadcast storm control Yes
Built-in processor PowerPC 8313
Combo SFP ports quantity 2
Connectivity technology Wired
Console port RS-232
Copper ethernet cabling technology 1000BASE-T,1000BASE-TX,100BASE-TX,10BASE-T
Data link protocols LLDP
DHCP client Yes
DHCP server Yes
Dimensions (WxDxH) 159.5 x 90 x 44.5 mm
Electromagnetic compatibility FCC, VCCI, EN/CISPR, ICES, AS/NZS, IEC/EN
Flash memory 32 MB
Flow control support Yes
Full duplex Yes
Heat dissipation 87 BTU/h
IGMP snooping Yes
Input current 1.5 A
Input frequency 50/60 Hz
Input voltage 100 - 240 V
Internal memory 128 MB
IP routing Yes
Latency 5.3µs/2.7µs
Link aggregation Yes
MAC address filtering Yes
MAC address table 8000 entries
Management protocols IGMPv3, SNMPv1/v2c/v3
Maximum data transfer rate 1 Gbit/s
Memory type DDR2
MIB support MIB II, Bridge MIB, RMONv2 MIB, SMON MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB
Mounting EIA
Multicast support Yes
Networking features Gigabit Ethernet
Networking standards IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x
Number of queues 4
Number of VLANs 4096
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 15 - 95 %
Operating temperature (T-T) 32 - 131 °F
Packet buffer memory 0.5 MB
Port mirroring Yes
Power consumption (typical) 86 W
Power over Ethernet (PoE) Yes
Processor frequency 333 MHz
Quality of Service (QoS) support Yes
Rate limiting Yes
Safety cUL, CE, CE, EN, AS/NZS
Security algorithms 802.1x RADIUS,SSH,SSL/TLS
SFP/SFP+ slots quantity 2
Spanning tree protocol Yes
SSH/SSL support Yes
Static port security Yes
Storage relative humidity (H-H) 15 - 95 %
Storage temperature (T-T) -40 - 70 °C
Supported data transfer rates 10/100 Mbps
Supported network protocols IPv4, IPv6, SNTP, UDP, TFTP, ICMP, TCP, ARP, Telnet, BOOTP
Switch layer L3
Switch type Managed
Switching capacity 5.6 Gbit/s
System event log Yes
Throughput 4.1 mpps Mpps
Web-based management Yes
Weight 1660 g
Wi-Fi No
Weight (imperial) 3.66 lbs
Dimensions (W x D x H) (imperial) 10 x 6.28 x 1.75 "

Specific References

EAN13
0884962790038

Hewlett Packard Enterprise E2615-8-PoE

HP E2615-8-PoE Switch
Out of Stock
£473.70
Tax excluded
Reference: J9565A
