Gigabyte GA-Q270M-D3H | Gigabyte Motherboards
  • Gigabyte GA-Q270M-D3H | Gigabyte Motherboards
  • Gigabyte GA-Q270M-D3H | Gigabyte Motherboards
  • Gigabyte GA-Q270M-D3H | Gigabyte Motherboards
  • Gigabyte GA-Q270M-D3H | Gigabyte Motherboards
  • Gigabyte GA-Q270M-D3H | Gigabyte Motherboards
Smart Fan 5



With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.



All Hybrid Fan Pin Headers



- All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

- Supports up to 2 amps with built-in overcurrent protection—a must for high-end high current fans.



New Smart Fan 5 Software



Choose from different modes, Quiet to Full Speed, to match your system usage scenario. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.



Enhanced BIOS Interface



The enhanced BIOS interface also has the advanced features seen in the Smart Fan 5 UI, such as: the ability to set triggers based on different temperature sensors on the board, fan curve definition and the temperature interval setting, which can prevent fan rotation noise caused by sudden temperature change—all without having to load Windows.



Fast Onboard Storage with NVMe

PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)



GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.



Next Generation SATA Express



SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.



2-Way CrossFire™ Multi Graphics



Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.



Intel® GbE LAN Internet Accelerator Networking



The Q270M-D3H motherboard comes equipped with Intel® Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.



Intel® vPro™ Technology



Intel® vPro™ technology is a set of security and manageability capabilities built into Intel® Core™ processor family, Intel® chipsets, and network adapters which can simplify and accelerate critical IT functions.



High Definition Digital Outputs



Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.



Anti-Sulfur Resistor Design



Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.



GIGABYTE APP Center



The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.



System Information Viewer



GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior; these are the possibilities of the System Information Viewer.



@BIOS



The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.



4K Ultra HD Support



4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.



HDMI™ - The Next Generation Multimedia Interface



HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
ACPI version 5.0
ATX Power connector (24-pin) Yes
Audio output channels 7.1 channels
BIOS memory size 128 MB
BIOS type UEFI AMI
Clear CMOS jumper Yes
Compatible processor series Celeron,Core i3,Core i5,Core i7,Pentium
Component for PC
CPU fan connector Yes
Depth 244 mm
DisplayPorts quantity 1
DVI-D ports quantity 1
Ethernet interface type Fast Ethernet,Gigabit Ethernet
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Front panel audio connector Yes
Headphone outputs 1
Linux operating systems supported Yes
Maximum internal memory 64 GB
Memory channels Dual
Memory slots type DIMM
Microphone in Yes
Motherboard chipset Intel Q270
Motherboard chipset family Intel
Motherboard form factor ATX
Non-ECC Yes
Number of chassis fan connectors 1
Number of memory slots 4
Number of SATA III connectors 6
Parallel port via internal header Yes
PCI Express x1 slots 1
PCI Express x16 slots 2
PCI slots 1
Processor family Intel
Processor socket LGA 1151 (Socket H4)
PS/2 ports quantity 2
RAID levels 0,1,5,10
S/PDIF out connector Yes
S/PDIF out port Yes
Serial port headers 2
Serial port via internal header Yes
Supported memory clock speeds 2133,2400 MHz
Supported memory module capacities 4GB,8GB,16GB
Supported memory types DDR4-SDRAM
Supported storage drive types HDD,SSD
Unbuffered memory Yes
USB 2.0 connectors 2
USB 2.0 ports quantity 2
VGA (D-Sub) ports quantity 1
Wi-Fi No
Width 244 mm
Windows operating systems supported Yes
Number of M.2 (M) slots 1
Number of SATA Express connectors 1
USB 3.0 (3.1 Gen 1) Type-A ports quantity 4
USB 3.0 (3.1 Gen 1) connectors 2
Front panel connector Yes

Specific References

EAN13
4719331849290

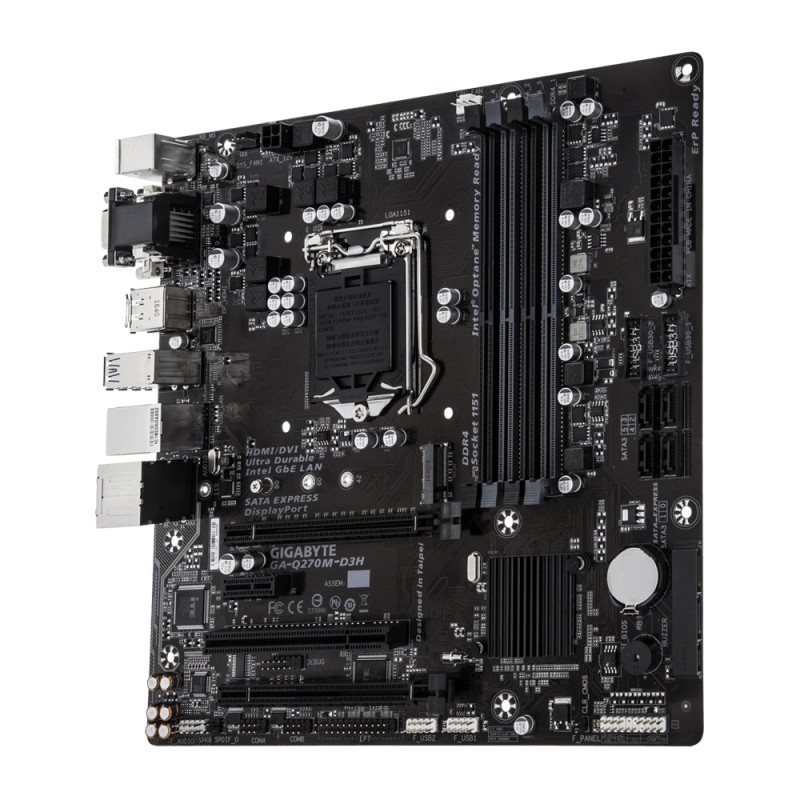

Gigabyte GA-Q270M-D3H

Socket LGA1151, Intel Q270 Chipset, 4 x DDR4 up to 64GB, 1 x Gigabit Ethernet, 6 x SATA III, 1 x SATA Express, 1 x M.2, 2 x PCI-Express x16, 1 x PCI Express x1, 1 x PCI
Out of Stock
£152.08
Tax excluded
Reference: GA-Q270M-D3H
Quantity
