The Eaton EX UPS, part of the Pulsar Series, offers high availability, flexibility and minimum total cost of ownership for Servers, data storage, network equipment, telephony - VOIP, medical equipment and industrial processes. Delivering on-line double conversion protection in Tower or versatile Rack/Tower format.
- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options
- Available in Tower or Rack/Tower convertible versions (including short-depth versions)
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up
- Multilingual LCD display for easy operation, access to measurements and customized set-up
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
- Maximum availability through ON-LINE double conversion topology with automatic by-pass, output power factor 0,9, and extended runtime options
- Available in Tower or Rack/Tower convertible versions (including short-depth versions)
- Fully hot swappable using the HotSwap MBP (Detachable Maintenance By-Pass) : UPS can be replaced without power interruption
- Individually controlled outlets provide load shedding, remote reboot of individual equipment and sequential start up
- Multilingual LCD display for easy operation, access to measurements and customized set-up
- Best-in class power management with USB+Serial port and slot for optional Management Cards (Web/SNMP, Contacts, ModBus)
| AC outlet types | C13 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Certification | CE, TüV GS, CB report, UL 1778 cUL CSA 22.2 |
| Colour of product | Grey |
| Communication options, slot | 1 Minislot |
| Depth | 490 mm |
| Dimensions (W x D x H) | 152.4 x 449.6 x 495.8 mm (6 x 17.7 x 19.52 ") |
| Dimensions (WxDxH) | 153 x 440 x 242 mm |
| Form factor | Tower |
| Height | 242 mm |
| Input connection type | C14 |
| Input operation voltage (max) | 284 V |
| Input operation voltage (min) | 100 V |
| LED indicators | Yes |
| Noise level | 45 dB |
| Nominal input voltage | 230 V |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output connections | (6) C13 |
| Output operation voltage (max) | 250 V |
| Output operation voltage (min) | 200 V |
| Output power | 1350 W |
| Output power capacity (VA) | 1500 VA |
| Package weight | 17962 g |
| Power plug | C14 coupler |
| Power supply input frequency | 40/70 Hz |
| RS-232 ports | 1 |
| Safety | IEC/EN 62 040-1, IEC/EN 62 040-2, IEC/EN 62 040-3 (VFI-SS-113), IEC/EN 60 950-1 (RD) |
| Serial ports quantity | 1 |
| Source data-sheet | Icecat.biz |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 10 min |
| USB 2.0 ports quantity | 1 |
| Weight | 18000 g |
| Width | 153 mm |
| Output power capacity | 1500 VA |
Specific References
- EAN13
- 3553340681837

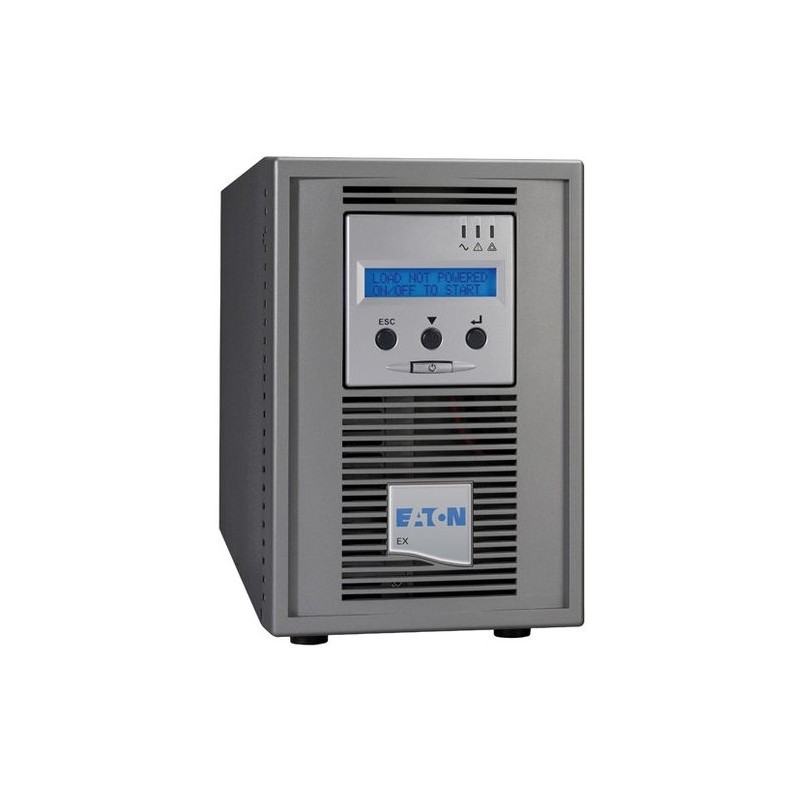

Eaton EX 1500
EX 1500VA / 1350W
£1,048.78
£873.98 Ex. VAT
EX 1500VA / 1350W
