The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
| AC outlet types | C13 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Automatic battery test | Yes |
| Battery replacement alarms | Audible,LED |
| Battery technology | Sealed Lead Acid (VRLA) |
| Bundled software | Eaton Intelligent Power |
| Cold start | Yes |
| Colour of product | Black |
| Compatible operating systems | Windows 7/Vista/XP Mac OS X Linux |
| Depth | 235 mm |
| Emergency Power Off (EPO) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN (RJ-45) ports quantity | 1 |
| Form factor | Rackmount |
| Height | 263 mm |
| Hot-swap battery | Yes |
| Input connection type | IEC |
| Input operation voltage (max) | 284 V |
| Input operation voltage (min) | 161 V |
| LED indicators | Yes |
| Mac compatibility | Yes |
| Modem (RJ-11) ports | 1 |
| Nominal input voltage | 220 V |
| Nominal output voltage | 220-240 V |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 500 W |
| Output power capacity (VA) | 800 VA |
| Overload protection | Yes |
| Power plug | C14 coupler |
| Power supply input frequency | 50/60 Hz |
| Rack capacity | 2U |
| Rack mounting | Yes |
| Safety | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| Source data-sheet | Icecat.biz |
| Surge protection | Yes |
| Surge protection features | Fax,Modem,Network,Telephone |
| Typical backup time at half load | 11 min |
| USB 2.0 ports quantity | 1 |
| Weight | 4100 g |
| Width | 81 mm |
| Output power capacity | 800 VA |
| Audible alarm(s) | Yes |
Specific References
- EAN13
- 3553340620836

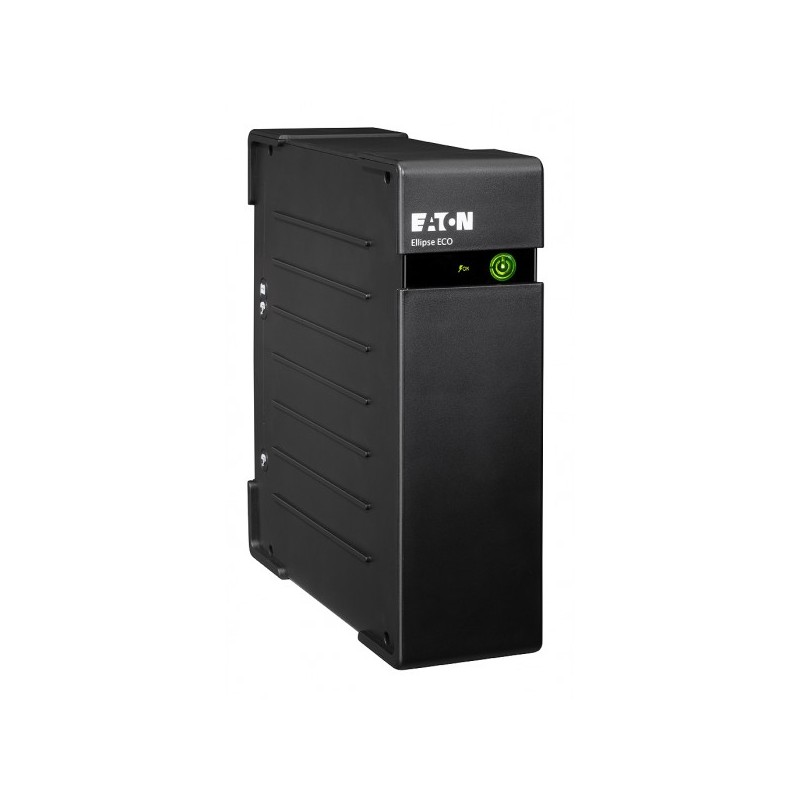

Eaton Ellipse ECO 800 USB IEC
Ellipse ECO 800 USB IEC
£193.57
£161.31 Ex. VAT
Ellipse ECO 800 USB IEC
