The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
| AC outlet types | C13 coupler,C19 coupler,Terminal |
| AC outlets quantity | 11 AC outlet(s) |
| Automatic battery test | Yes |
| Colour of product | Black |
| Crest factor | 3:1 |
| Depth | 685 mm |
| Display | LCD |
| Efficiency | 98 % |
| Energy Star certified | Yes |
| Form factor | Rackmount/Tower |
| Height | 440 mm |
| Input current THD | 5 % |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 100 V |
| Maximum current | 90 A |
| Noise level | 45 dB |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Output power | 5400 W |
| Output power capacity (VA) | 6000 VA |
| Output voltage regulation | 1 % |
| Output voltage THD | 2 % |
| Power plug | Terminal |
| Power supply input frequency | 40/70 Hz |
| Rack capacity | 3U |
| Rack mounting | 3U |
| RS-232 ports | 1 |
| Safety | EN 62040-1, UL 1778, CSA 22.2 |
| Typical backup time at half load | 11 min |
| USB 2.0 ports quantity | 1 |
| Weight | 48000 g |
| Width | 130 mm |
| Output power capacity | 6000 VA |
Specific References
- EAN13
- 0743172039354

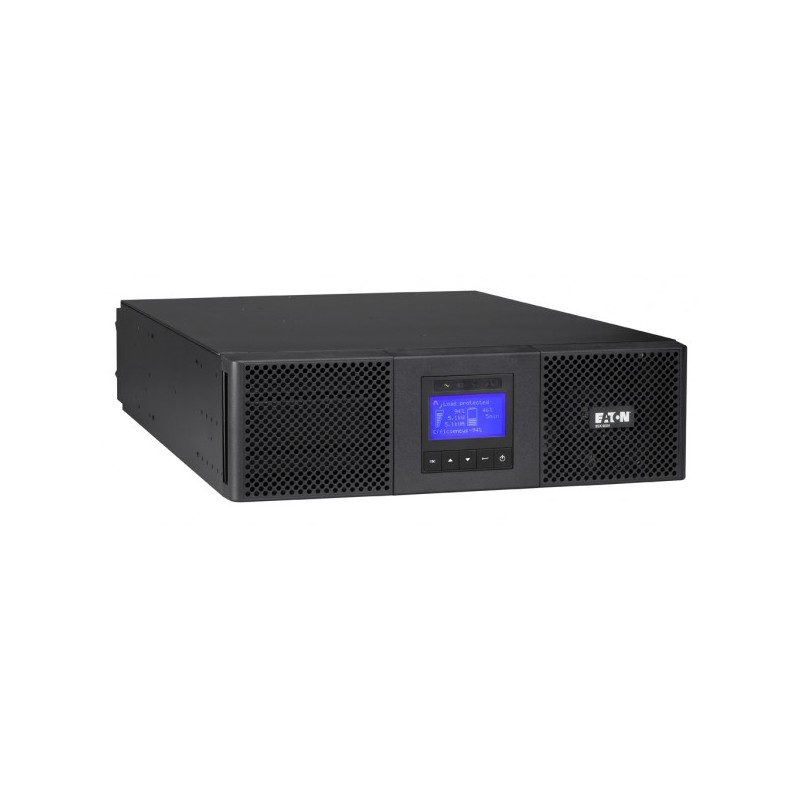

Eaton 9SX 6000i RT3U
6 kVA, 5.4 kW, LCD, Terminal, 8x C13, 2x C19, USB, RS-232, 45 dB, 48 kg
£3,885.90
£3,238.25 Ex. VAT
6 kVA, 5.4 kW, LCD, Terminal, 8x C13, 2x C19, USB, RS-232, 45 dB, 48 kg
