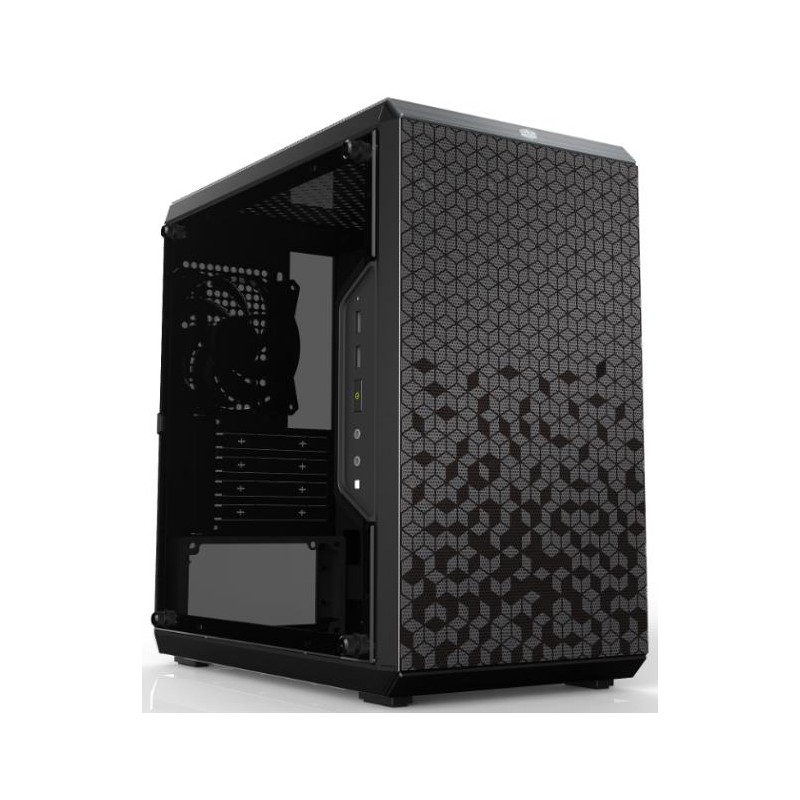

The MasterBox Q300L is your straightforward option in the lineup of the brand new MasterBox Q-series from Cooler Master. A series that might be small in size but excels in functionality and modularity without compromising on the thermal performance.
Although the size wouldn’t tell, the MasterBox Q300L supports a standard ATX PSU which we don’t see often in the market with this size. Based on the different system setup, the I/O panel can be adjusted to six different locations, three options at each side of the case. You can decide which setup fits your system best.
Due to the cube design of the frame and special pattern design on the dust filter will make the chassis stand out from the rest. The combination of a practical design and the unique customizable outlook makes the MasterBox Q300L the perfect choice for office and home usage.
- High Flexibility for System Building: The I/O panel can be adjusted to six different locations. On both side of the body you can install the I/O panel at the front, top or bottom
- Minimized Dimension with ATX PSU Support: Despite the Micro-ATX form factor and the body depth and height of only 370mm x 370mm, the MasterBox Q300L can accommodate a normal ATX PSU
- Patterned Dust Filter: Special pattern on the dust filter creates a unique outlook for the chassis
- Clean Routing Space: Behind the motherboard tray, it offers 28mm wide and spacy room for hidden cable management
- Excellent Thermal Performance: The open design of the perforated front, top and bottom guarantees excellent thermal performance
- Edgo-to-Edge Acrylic Transparent Side Panel: Show off your build through the full size transparent side panel
Audio input |
Y |
Audio output |
Y |
Bottom fans diameters supported |
120 mm |
Cable management |
Y |
Colour of product |
Black |
Depth |
387 mm |
Form factor |
Midi-Tower |
Front fans diameters supported |
120,140 mm |
Height |
378 mm |
LED indicators |
Y |
Liquid cooling capability |
Y |
Material |
Plastic,Steel |
Maximum bottom fans |
1 |
Maximum CPU cooler height |
157 mm |
Maximum front fans |
2 |
Maximum graphics card length |
360 mm |
Maximum PSU length |
160 mm |
Maximum rear fans |
1 |
Maximum top fans |
2 |
Number of expansion slots |
4 |
Package depth |
435 mm |
Package height |
461 mm |
Package weight |
4700 g |
Package width |
276 mm |
Power supply included |
N |
Power supply location |
Bottom |
Rear fans diameters supported |
120 mm |
Rear fans installed |
1x 120 mm |
Side window |
Y |
Supported hard disk drive sizes |
2.5,3.5 " |
Supported motherboard form factors |
Micro-ATX,Mini-ITX |
Top fans diameters supported |
120 mm |
Type |
PC |
Weight |
3700 g |
Width |
230 mm |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
Supported power supply form factors |
ATX,PS2 |
Front radiator fan sizes supported |
120,240 mm |
Rear radiator fan sizes supported |
120 mm |
Anti-dust filter |
Y |
Cooling |
Y |
Number of 3.5" bays |
1 |
Number of 2.5" bays |
2 |
Specific References
- EAN13
- 4719512065488
Cooler Master Q300L Data Sheet
