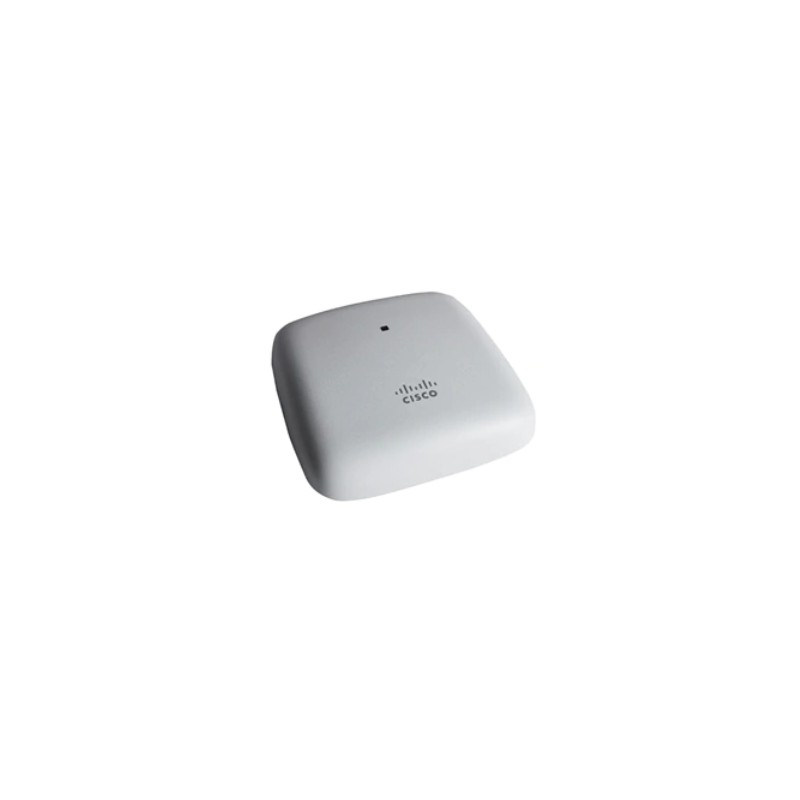

Cisco CBW140AC
  • Cisco CBW140AC
  • Cisco CBW140AC
Ideal for smaller networks, the Cisco® Business 140AC Access Point brings a full slate of Cisco high-performance functionality to the business environment.



The Cisco Business 140AC Access Point delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2 (Figure 1). It also meets the growing flexibility requirements of wireless networks by introducing mesh technology—all while delivering a simple user experience.



The 140AC access point extends coverage and capacity to Wi-Fi clients such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.



By adhering to the 802.11ac Wave 2 standard, the Cisco Business 140AC Access Point delivers a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps, providing the necessary foundation to stay ahead of the performance expectations and needs of wireless users.



In recent years, small businesses have increasingly preferred wireless access as the principal form of network connectivity. Along with this shift, there is an expectation that wireless should enable a high-performance experience. The Cisco Business 140AC Access Point delivers industry-leading performance for highly secure and reliable wireless connections, for a optimal end-user experience.



Increased wireless performance and coverage, featuring mesh technology



The Cisco Business 140AC Access Point supports the latest 802.11ac Wave 2 standard for higher performance, greater coverage, and higher-density networks. With simultaneous dual radios and dual bands with 802.11ac Wave 2 MU-MIMO functionality, this access point can handle the increasing number of high-bandwidth devices and applications that will soon become a common part of the network.



Integrated mesh technology enables deployment flexibility that is simple and secure. You can easily expand coverage and capacity using Cisco Business wireless mesh extenders, which include models that can be placed on a desktop, plugged into an AC electrical outlet, or mounted directly to a wall.



Cisco Business Mobile app



The Cisco Business 140AC Access Point is managed by the Cisco Business Mobile app, an intuitive client application that simplifies traditional challenges associated with wireless network deployment, right from your mobile device. You can easily extend your network by adding new mesh extenders using Quick Response (QR) codes and wireless network activation in minutes. A robust management capability dynamically changes network configuration such as enabling secure guest access. Network usage, traffic patterns, and network throughput can be closely monitored, providing a real-time snapshot; this not only provides peace of mind, it virtually ensures optimal user experience. The Cisco Business Mobile app is available for iPhone, iPad, and Android devices.



Power over Ethernet



The Cisco Business 140AC Access Point features a single Gigabit Ethernet uplink port and is powered by Power over Ethernet (802.3af PoE standard).



Mounting



This sleek, compact access point is designed with flexible mounting options in mind. You can mount it directly on the ceiling (including T-bar rail mounting) or a wall. It is easy to install, and the mounting hardware is included.
Antenna gain level (max)4 dBi
Antenna typeinternal
Built-in processorY
Cabling technology10/100/1000Base-T(X)
CertificationUL 60950-1\nCAN/CSA-C22.2 No. 60950-1\nUL 2043\nIEC 60950-1\nEN 60950-1\n\nFCC Part 15.247, 15.407\nRSS-247 (Canada)\nEN 300.328, EN 301.893 (Europe)\nARIB-STD 66 (Japan)\nARIB-STD T71 (Japan)\nEMI and susceptibility (Class B)\nFCC Part 15.107 and 15.109\
Channels quantity29 channels
Compatible operating systemsfilter
Depth150.8 mm
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Flash memory256 MB
Frequency band2.412 - 2.472, 5.18 - 5.32, 5.5 - 5.7 GHz
Height33 mm
Internal memory1024 MB
LED indicatorsY
MAC address filteringY
Maximum data transfer rate867 Mbit/s
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11d,IEEE 802.11g,IEEE 802.11h,IEEE 802.11i,IEEE 802.11n,IEEE 802.11r,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Non-operating altitude0 - 4500 m
Number of products included5 pc(s)
Number of users400 user(s)
Operating altitude0 - 3000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
PlacementCeiling
Power over Ethernet (PoE)Yes
Processor frequency710 MHz
Security algorithms802.1x RADIUS,AES,EAP,EAP-FAST,EAP-GTC,EAP-PEAP,EAP-SIM,EAP-TLS,EAP-TTLS,MSCHAPv2,WPA2,WPA3
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-30 - 70 °C
Transmitting power20 dBmW
VLAN supportY
Weight400 g
Width150.8 mm
2.4 GHzY
5 GHzY
Wi-Fi Multimedia (WMM)/(WME)Y
MIMOY
Dynamic Frequency Selection (DFS)Y
Product colourWhite
Maximum data transfer rate (2.4 GHz)300 Mbit/s
Maximum data transfer rate (5 GHz)867 Mbit/s
Remote Authentication Dial-In User Service (RADIUS)Y
Antenna featuresIntegrated antenna

5-cbw140ac-e.pdf

Cisco CBW140AC Data Sheet

Download (414.39k)

Similar products

  • Cisco CBW140AC
    Cisco CBW140AC
  • Cisco CBW140AC
    Cisco CBW140AC
  • Cisco CBW240AC
    Cisco CBW240AC
  • Cisco CBW240AC
    Cisco CBW240AC

Cisco CBW140AC

CBW140AC 802.11ac 2x2 Wave 2 Access Point Ceiling Mount, E regulatory domain

5-CBW140AC-E

Out of Stock

£455.39
£379.49 Ex VAT.
