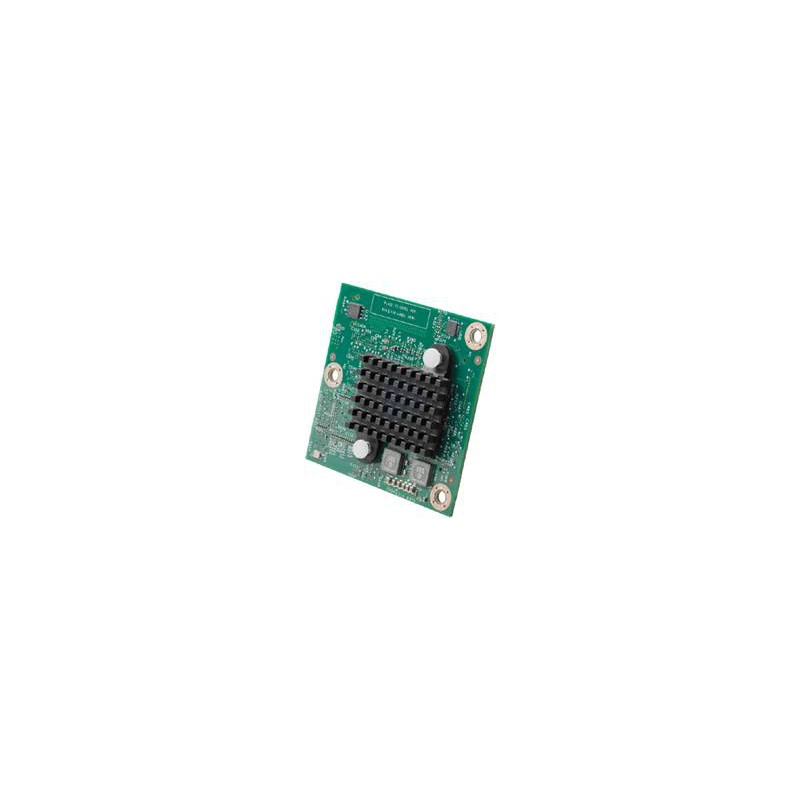

Cisco PVDM4-256
  • Cisco PVDM4-256
  • Cisco PVDM4-256
The Cisco® Packet Voice Digital Signal Processor Modules (PVDMs) enable Cisco 4000 Series Integrated Services Routers (ISRs) to provide rich-media capabilities such as high-density voice connectivity, conferencing, transcoding, media optimization, transrating, and secure voice for Cisco Unified Communications solutions. These new modules support unprecedented scale while allowing for a smaller solution footprint than ever before.



The PVDMs support digital voice connections, conferencing, universal transcoding, and media optimization services:

- T1/E1 voice: One of the primary uses of PVDMs is to packetize digital voice into IP packets to enable time-division multiplexing (TDM) digital voice applications.

- Conferencing: PVDM modules support ad hoc and meet-me conferencing with various codecs in conjunction with Cisco Unified Communications Manager and Cisco Unified Communications Manager Express.

- Universal transcoding: In conjunction with Cisco IOS® Software, the PVDMs support universal transcoding, which allows conversion from any supported codec to any other supported codec.

- Transrating: The PVDMs support transrating, in which the same codec is repacketized in order to connect dissimilar networks that have different codec packetization periods.

- Voice-quality management: The PVDMs perform compression, voice-activity detection, jitter management, and echo cancellation. The echo cancellation offered in the PVDMs has a tail length of 128 milliseconds and complies with ITU-T G.168.

- Energy savings: The motherboard PVDMs (PVDM4s) offer multiple power-saving modes, including a power-saver mode when the module is not in use. In power-saver mode, each PVDM4 can save up to 5 watts of power.



The analog voice modules (FXS, FXO, and E/M) and Basic Rate Interface (BRI) digital voice modules for the 4000 Series ISRs contain built-in, nonconfigurable digital signal processors (DSPs) and do not require any additional PVDMs for voice packetization.
Compatible productsCisco 4331, Cisco 4351, Cisco 4451
Depth67 mm
Height17 mm
Operating temperature (T-T)0 - 50 °C
Weight36 g
Width51 mm
Number of voice channels supported (max)256

Similar products

  • Cisco Unified IP Phone Expansion 7916 Module
    Cisco Unified IP Phone Expansion 7916 Module
  • Cisco PVDM3-128
    Cisco PVDM3-128
  • Cisco PVDM3-192
    Cisco PVDM3-192
  • Cisco PVDM3-256
    Cisco PVDM3-256
  • Cisco PVDM3-64
    Cisco PVDM3-64

Cisco PVDM4-256

256-channel high-density voice DSP module, Spare

PVDM4-256=

Out of Stock

£11,040.31
£9,200.26 Ex VAT.
