Cisco CS-KIT-K9
  • Cisco CS-KIT-K9
  • Cisco CS-KIT-K9

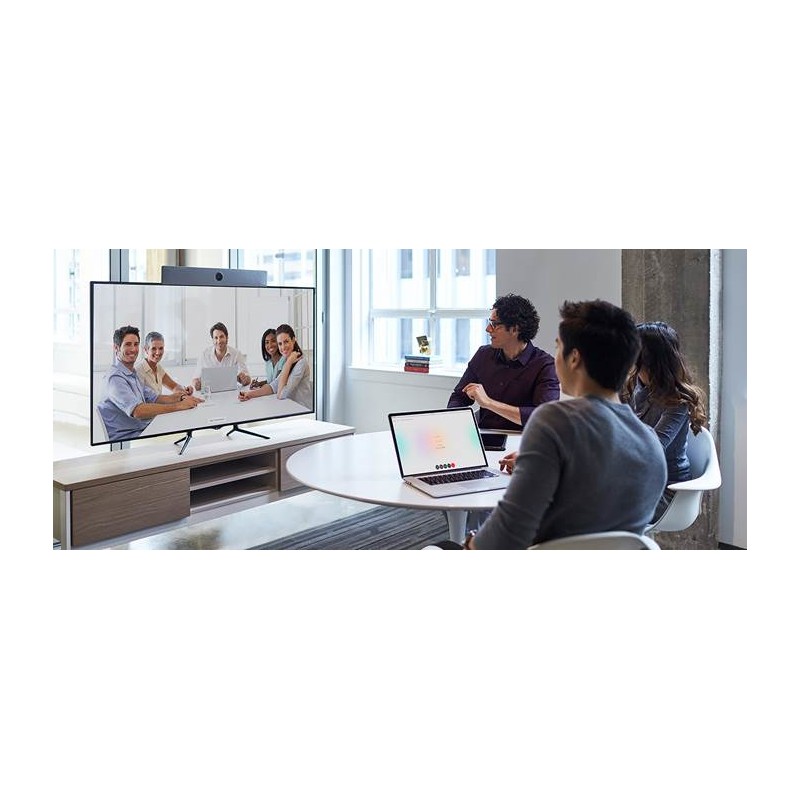

Cisco Spark Room Kit is a powerful collaboration solution that integrates with flat panel displays to bring more intelligence and usability to your small to medium-sized meeting rooms – whether registered on the premises or through the cloud.



Cisco Spark Room Kit overview

Cisco Spark™ Room Kit delivers the unmatched video and audio experience customers have come to expect from Cisco. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations – further removing the barriers to usage and deployment of video in small to medium-sized rooms.



The Room Kit – which includes camera, codec, speakers, and microphones integrated in a single device – is ideal for rooms that seat up to seven people. It offers sophisticated camera technologies that bring speaker-tracking capabilities to smaller rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your small conference rooms and spaces – whether registered on the premises or to Cisco Spark through the Cisco® Collaboration Cloud.
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Aspect ratio16:9
Automatic gain controlY
Built-in speaker(s)Y
Camera includedY
Data link protocolsIPv4/IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ
DC input voltage12 V
Depth88 mm
Effective sensor resolution15.1 MP
Ethernet LANY
Ethernet LAN data rates10,100,1000 Mbit/s
Focus adjustmentAuto
Frequency range70 - 20000 Hz
HD typeFull HD
HDMI ports quantity3
Headphone outputs1
Height106 mm
Line-inY
Maximum frame rate60 fps
Megapixel15.1 MP
Microphone includedY
Noise reductionY
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Power consumption (max)70 W
Power consumption (typical)20 W
Product typeGroup video conferencing system
RMS rated power24 W
Sensor typeCMOS
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-20 - 60 °C
Supported network protocolsH.323/SIP
Supported video modes720i,720p,1080i,1080p
USB 2.0 ports quantity1
Video formats supportedH.264,H.265
Voice codecsG.711,G.722,G.722.1,G.729,OPUS
Weight3200 g
Wi-FiY
Wi-Fi standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Width700 mm
Image sensor size1/1.7 "
Horizontal field of view83 °
Product colourBlack
Optical zoom (normal mode)3 x
Speaker includedY

CS-KIT-K9.pdf

Cisco CS-KIT-K9 Data Sheet

Download (616.96k)
