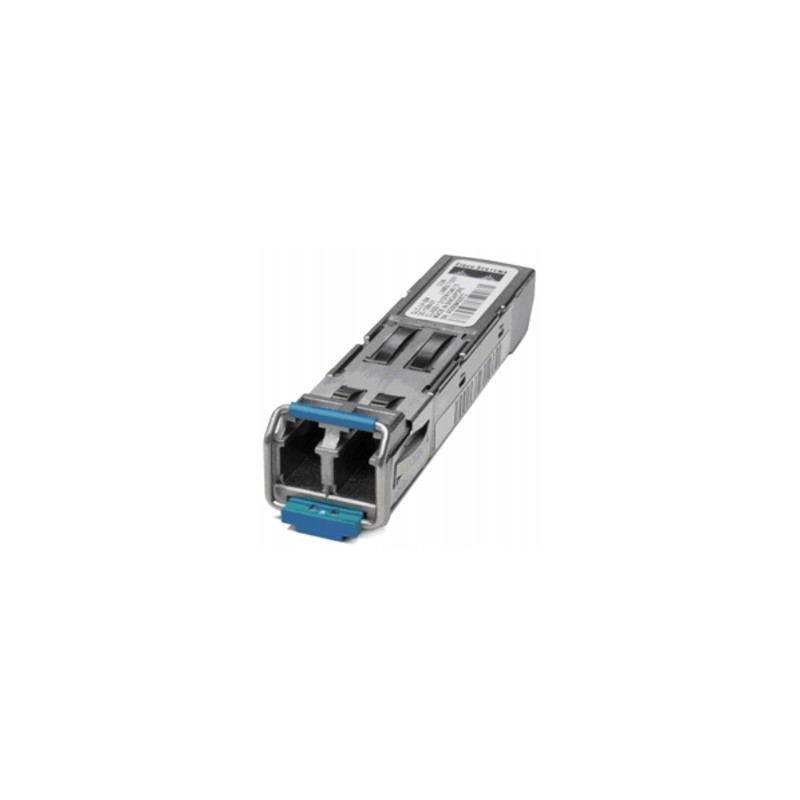

Main features of the Cisco DWDM SFP include:
- Support for International Telecommunication Union (ITU) 100-GHz wavelength grid
- Match for wavelength plan of Cisco 100-GHz ONS product family
- Fixed-wavelength SFP, with 40 different SFP models
- Hot-swappable input/output device that plugs into Gigabit Ethernet SFP ports or slots of a Cisco switch or router, linking the port with the network
Performance
- Supported protocols: Gigabit Ethernet, Fibre Channel 1 Gbps and 2 Gbps.
- Optical link budget of 28 db
Platform Support
The Cisco DWDM SFP module is supported across a variety of Cisco switches, routers, and optical transport devices.
Connectors and Cabling
- Equipment: standard SFP interface network: dual LC/PC connector
Cable type |
fiber optic |
Certification |
IEC 60825-1, 21CFR1040 LN#50 7/2001 |
Depth |
56.5 mm |
Fiber optic connector |
LC |
Height |
8.5 mm |
Hot-swap |
Y |
Input voltage |
3.3 V |
Interface type |
SFP |
Maximum data transfer rate |
1000 Mbit/s |
Maximum transfer distance |
80000 m |
Networking standards |
IEEE 802.3z |
Operating temperature (T-T) |
32 - 158 °F |
Rx power (max) |
-28 dBmW |
Rx power (min) |
-9 dBmW |
Storage temperature (T-T) |
-40 - 85 °C |
Tx power (max) |
4 dBmW |
Wavelength |
1556.55 nm |
Weight |
75 g |
Width |
13.4 mm |
Multi-mode fiber (MMF) supported |
Y |
Specific References
- EAN13
- 0882658136320
