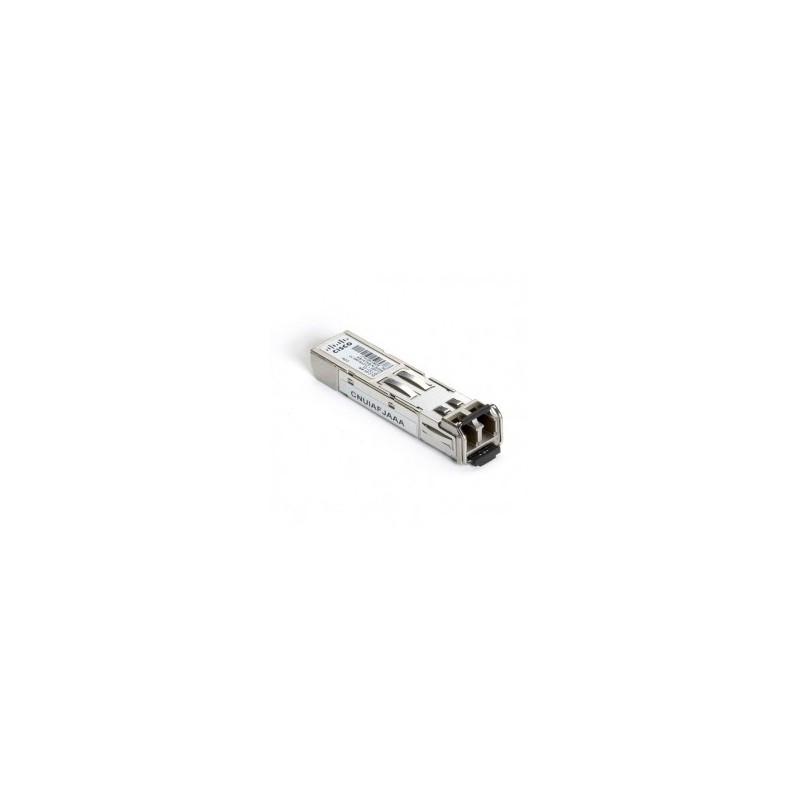

Cisco GLC-SX-MMD network transceiver module
  • Cisco GLC-SX-MMD network transceiver module
The 1000BASE-SX SFP, compatible with the IEEE 802.3z 1000BASE-SX standard, operates on legacy 50 μm multimode fiber links up to 550 m and on 62.5 μm Fiber Distributed Data Interface (FDDI)-grade multimode fibers up to 220 m. It can support up to 1km over laser-optimized 50 μm multimode fiber cable.
Cable type Multi-mode
Data transfer rate (max) 1000 Mbit/s
Fiber cable diameters supported 50/62.5 µm
Fiber optic connector LC
Height 8.5 mm
Interface type SFP
Maximum transfer distance 10000 m
Networking standards IEEE 802.3z
Operating temperature range (T-T) 0 - 70 °C
SFP transceiver type SX
Source data-sheet Icecat.biz
Storage temperature range (T-T) -40 - 85 °C
Wavelength 850 nm

Specific References

EAN13
0882658340895

Cisco GLC-SX-MMD

1000BASE-SX SFP Multimode Fiber Only with DOM
In Stock
£226.26
Tax excluded
Reference: GLC-SX-MMD=
Quantity
