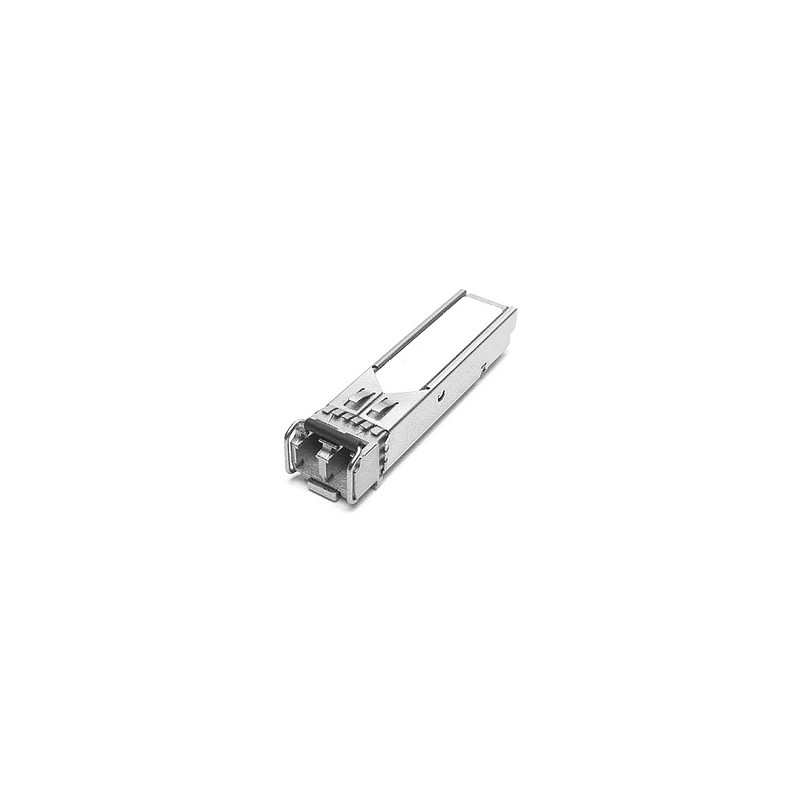

Cisco SFP-10G-ZR-S | Cisco Transceivers & Modules
  • Cisco SFP-10G-ZR-S | Cisco Transceivers & Modules
  • Cisco SFP-10G-ZR-S | Cisco Transceivers & Modules
The Cisco 10GBASE-ZR module supports link lengths of up to about 80 kilometers on standard SMF (G.652). This interface is not specified as part of the 10 Gigabit Ethernet standards and is, instead, built according to Cisco specifications. SFP-10G-ZR-S does not support FCoE.
Cable type Single-mode
Cabling technology 10GBASE-ZR
Certification MSA
Data transfer rate (max) 10000 Mbit/s
Depth 56.5 mm
Fiber cable diameters supported 9/125 µm
Height 8.5 mm
Hot-swap Yes
Interface type SFP+
Maximum transfer distance 80000 m
Operating relative humidity (H-H) 10 - 80 %
Operating temperature (T-T) 32 - 158 °F
Power consumption (typical) 1.5 W
Rx power (max) -7 dBmW
Rx power (min) 24 dBmW
SFP transceiver type ZR
Storage relative humidity (H-H) 10 - 85 %
Storage temperature (T-T) -40 - 85 °C
Tx power (max) 4 dBmW
Wavelength 1550 nm
Weight 75 g
Width 13.4 mm

Specific References

EAN13
0882658782473

Cisco SFP-10G-ZR-S

10GBASE-ZR SFP+ Module for SMF S-Class, Spare
Out of Stock
£8,684.92
£7,237.43 Ex. VAT
Reference: SFP-10G-ZR-S=
