Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
The 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, intelligent transportation systems (ITS), and city surveillance programs. The 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3000, IE 3010, IE 4000, and IE 5000 Series Switching families, as well as the Cisco CGS 2520 Switch.
The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
The 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, intelligent transportation systems (ITS), and city surveillance programs. The 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3000, IE 3010, IE 4000, and IE 5000 Series Switching families, as well as the Cisco CGS 2520 Switch.
The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Certification | RoHS, TAA, CE |
| Colour of product | Black |
| Compatible memory cards | SD |
| Console port | RJ-45 |
| DHCP server | Y |
| Fiber optic connector | SFP |
| Flash memory | 128 MB |
| Form factor | 1U |
| Full duplex | Y |
| IGMP snooping | Y |
| Internal memory | 1000 MB |
| Link aggregation | Y |
| MAC address table | 16000 entries |
| Mean time between failures (MTBF) | 429620 h |
| Memory type | GBDRAM |
| Multicast support | Y |
| Networking standards | IEEE 802.3,IEEE 802.3af,IEEE 802.3at |
| Non-operating altitude | 0 - 4572 m |
| Number of queues | 4 |
| Operating altitude | 0 - 4206.24 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Power consumption (max) | 90 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Security algorithms | 802.1x RADIUS,FIPS 140-2,SNMP,SSH |
| Spanning tree protocol | Y |
| Storage temperature (T-T) | -40 - 85 °C |
| Supported network protocols | IPv4, IPv6, VTPv2, NTP, UDLD, CDP, LLDP, HTTP |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| System event log | Y |
| Throughput | 41.67 mpps |
| USB 2.0 ports quantity | 1 |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 5460 g |
| ARP inspection | Y |
| Private VLAN | Y |
| SFP module slots quantity | 4 |
| BPDU filtering/protection | Y |
| Authentication | Guest VLAN |

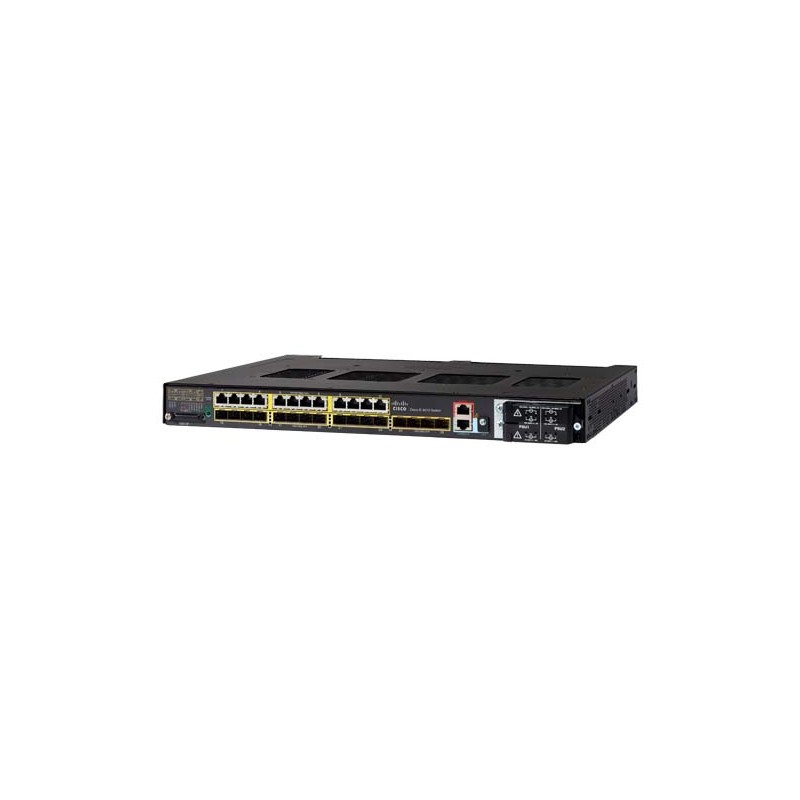

Cisco IE-4010-4S24P
56 Gbps, 41.67 mpps, 24x 10/100/1000 PoE/PoE+, 4x SFP, L2/L3, 445x445x356 mm, 1U, 5.46 kg, RF
£6,083.38
£5,069.48 Ex. VAT
56 Gbps, 41.67 mpps, 24x 10/100/1000 PoE/PoE+, 4x SFP, L2/L3, 445x445x356 mm, 1U, 5.46 kg, RF
