Cisco ASR 1000
  • Cisco ASR 1000

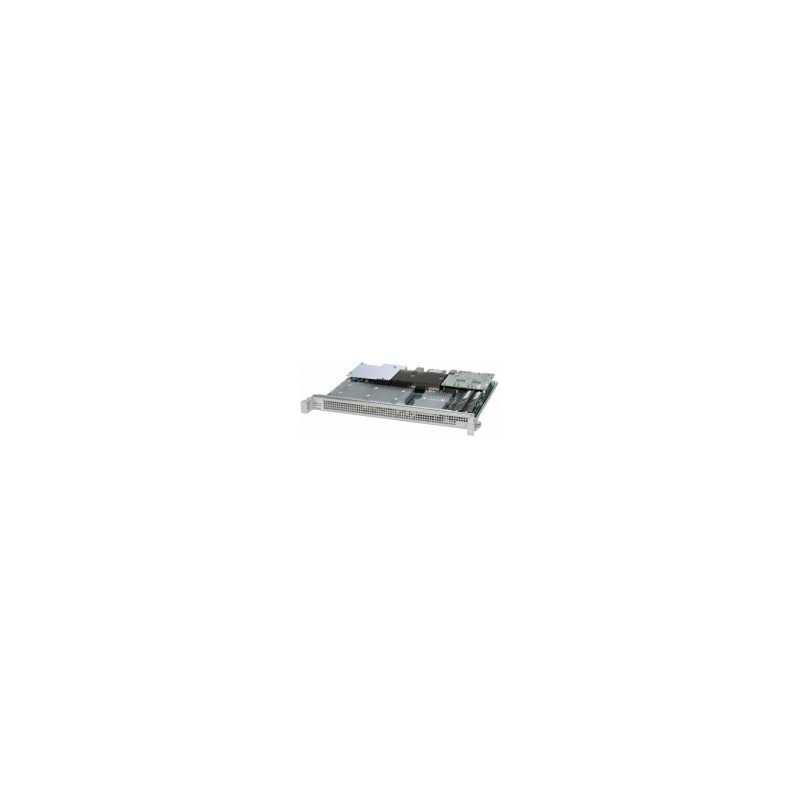

The Cisco ASR 1000 Series Embedded Service Processors (ESPs) are based on the innovative, industry-leading Cisco QuantumFlow Processor for next-generation forwarding and queuing in silicon. These modules use the first generation of the hardware and software of the Cisco QuantumFlow Processor architecture.



The 5-, 10-, 10-N- 20- and 40-Gbps Cisco ASR 1000 Series ESPs (part numbers ASR1000-ESP5, ASR1000-ESP10, ASR1000-ESP10-N, ASR1000-ESP20, and ASR1000-ESP40, respectively) provide five centralized forwarding-engine options for the Cisco ASR 1000 Series Aggregation Services Routers. Additionally, the Cisco ASR 1002 Fixed Router includes a nonmodular, fixed ESP with throughput of 2.5-Gbps and the ASR 1001 comes with a nonmodular, fixed ESP with throughput of 2.5-Gbps which is upgradable with a software activated performance upgrade license to 5-Gbps.



The Cisco ASR 1000 Series 10-N-Gbps ESP (ASR1000-ESP10-N) is the nonencryption version of the Cisco ASR 1000 Series 10-Gbps ESP (ASR1000-ESP10). The Cisco ASR 1000 Series 10-N-Gbps ESP can only support noncrypto Cisco IOS Software images and will never support encryption capabilities such as IP Security (IPsec). In future releases, the Cisco ASR 1000 Series 10-N-Gbps ESP may support secured network management features such as Secure Shell (SSH) Protocol, Secure Sockets Layer (SSL), and Simple Network Management Protocol Version 3 (SNMPv3).



The Cisco ASR 1000 Series ESPs are responsible for the data-plane processing tasks, and all network traffic flows through them. The modules perform all baseline packet routing operations, including MAC classification, Layer 2 and Layer 3 forwarding, quality-of-service (QoS) classification, policing and shaping, security access control lists (ACLs), VPNs, load balancing, and NetFlow. They are also responsible for features such as firewalls, intrusion prevention, Network Based Application Recognition (NBAR), Network Address Translation (NAT), and Cisco IOS Flexible Pattern Matching.
Built-in processor ASR1000
Colour of product Multi
Compatibility Cisco ASR 1002, ASR 1004, ASR 1006
Compatible operating systems Cisco IOS XE 2.1
Connectivity technology Wired
Dimensions (W x D x H) 23.4 x 424.2 x 360.4 mm (0.92 x 16.7 x 14.19 ")
Dimensions (WxDxH) 0.02 x 0.428 x 0.36 mm
Ethernet LAN data transfer rates 10, 100, 1000 Mbit/s
Firewall security IOS
Firmware upgradeable Yes
I/O ports Cisco ASR 1000 SIP - SPA
Management protocols SNMPv3
Maximum data transfer rate 10 Gbit/s
Memory and processor 512-Mbps Cisco QuantumFlow, 2-Gbps DRAM, 10-Mbps TCAM, 128-Mbps
Mounting R
Networking standards IEEE 802.3
Operating altitude -60 - 2000 m
Operating relative humidity range 5 - 85 %
Operating temperature range (T-T) 5 - 40 °C
Rack mounting No
Safety AS/NZS 60950 / IEC/EN 60950
Security algorithms supported 3DES, DES, SSH, WPA-AES
Slot type 2.5/5 - Gbps ESP
Storage relative humidity range 5 - 95 %
Storage temperature range (T-T) -40 - 70 °C
Wireless LAN connection No

Specific References

EAN13
0882658244674

Cisco ASR 1000

ASR1000 Route Processor 2, 8GB DRAM, Spare
Out of Stock
£34,235.22
Tax excluded
Reference: ASR1000-RP2=
Quantity
