Cisco introduces the Cisco® Catalyst® 6500 Enhanced Series Chassis (6500-E Series) delivering up to 2 terabits per second of system bandwidth capacity and 80 Gbps of per-slot bandwidth. In a system configured for VSS, this translates to a system capacity of 4 Tbps. The Cisco® Catalyst® 6500 Enhanced Series Chassis will be capable of delivering up to 180 Gbps of per-slot bandwidth with a system capacity of up to 4 terabits per second. A system configured for VSS will be capable of delivering up to 8 Tbps of system bandwidth.

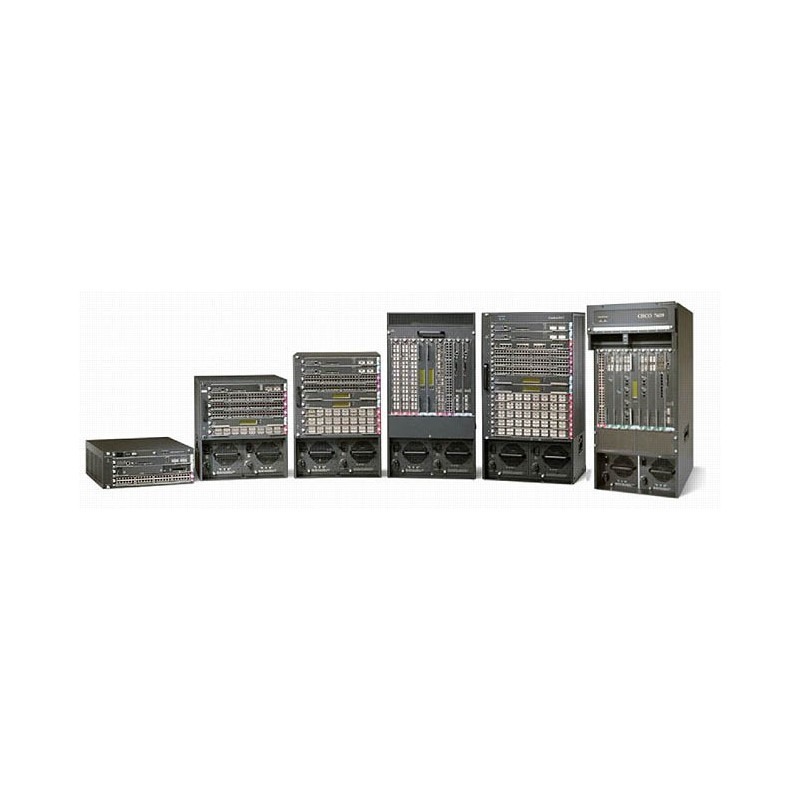

The Cisco Catalyst 6500-E Series Switch offers the broadest range of interface modules with industry-leading performance and advanced feature integration. The Cisco Catalyst 6500-E Series Switch also offers high port densities and comes in 3-, 4-, 6-, 9, 9-Vertical, and 13-slot versions that make it ideal for a range of deployment scenarios.

The Cisco Catalyst 6500-E Series Chassis provides superior investment protection by supporting multiple generations of products in the same chassis, lowering the total cost of ownership. The Cisco Catalyst 6500-E Series Chassis (Figure 1) supports all the Cisco Catalyst 6500 Supervisor Engines up to and including the Cisco Catalyst 6500 Series Supervisor Engine 2T, and associated LAN, WAN, and services modules.



Key Features:



- Supports all Catalyst 6500 modules, including all:

- Supervisor engines

- Switch fabric modules

- Fast Ethernet modules

- Gigabit Ethernet modules

- 10 Gigabit Ethernet modules

- Voice modules

- Flex Wan Modules

- ATM modules

- Multi Gigabit services modules (content services ,firewall, intrusion detection, IPSec/VPN, network analysis, and SSL acceleration)

- Supports both CatOS and IOS software.
AC input voltage100-240 V
Depth552 mm
Height178 mm
Mean time between failures (MTBF)860868 h
Number of slots3
Operating altitude0 - 2000 m
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 40 °C
Rack capacity4U
Required softwareCisco IOS 12.2(18)SXF, 12.2(14)SX, 12.2(33)SXH, 15.0(1)SY
SafetyUL 60950 Second Edition, CAN/CSA-C22.2 No. 60950 Second Edition, EN 60950 Second Edition, IEC 60950 Second Edition, AS/NZS 60950
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-20 - 65 °C
Weight14970 g
Width441 mm
