Cisco VWIC3-2MFT-T1/E1
These flexible interface cards support multiple integrated data, voice and video applications, facilitating the migration from data only as well as circuit-switched voice/video services to a packet voice/video solution

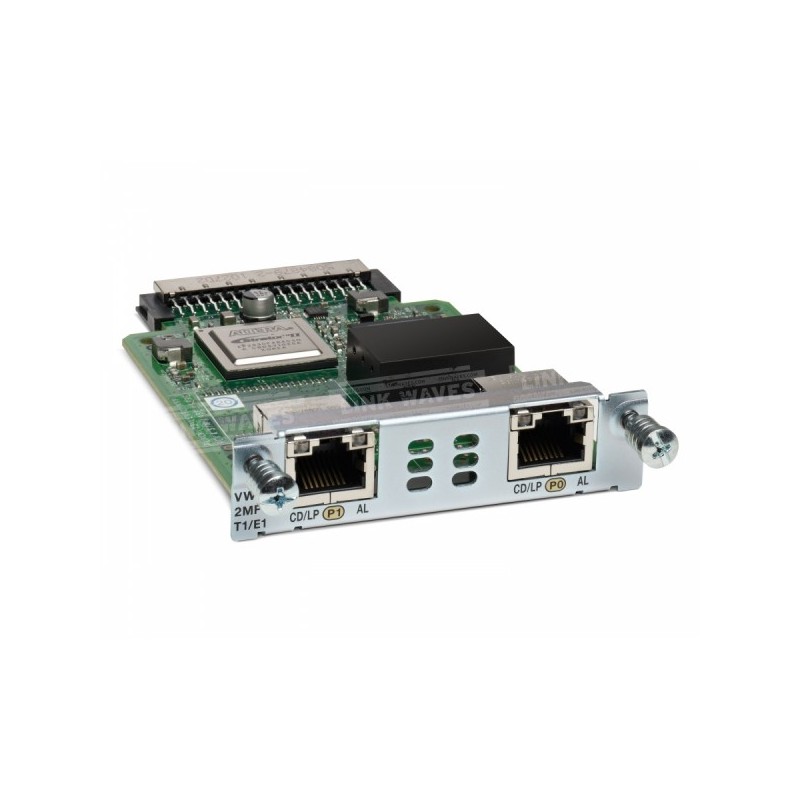

The Cisco® Third-generation 1-, 2-port and 4-port T1/E1 Multiflex Trunk Voice/WAN Interface (MFT VWIC3s) support data and voice applications on the Cisco 1921, 1941 and 1941W (data only), and the Cisco 2901, 2911, 2921, 2951, 3925, 3945, 3925E and 3945E Integrated Services Routers. The Cisco MFT VWIC3 combines WAN-interface-card (WIC) and voice-interface-card (VIC) functions to provide unparalleled flexibility, versatility, and investment protection through its many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface because the Cisco MFT VWIC3 cards can be reused in packet voice applications. The 2 port T1/E1 MFT VWIC3 is shown below.



The Cisco MFT VWIC3 interface cards add improvements over the Cisco Second-generation 1- and 2-port T1/E1 Multiflex Voice/WAN Interface Cards (MFT VWIC2s). The Cisco 2- and 4-port MFT VWIC3s enable each port to be clocked from an independent clock source for data applications. Voice applications can now be clocked independently from data applications, with all ports for voice applications clocked from a single source. The Cisco MFT VWIC3s use the ECAN on the motherboard PVDM cards with up to 128ms echo-tail length for demanding network conditions. MFT VWIC3 cards support up to 2 channel groups per T1/E1 port for serial data applications. Refer to Table 3 for all configuration options offered with the MFT VWIC3 cards.



The Cisco MFT VWIC3 cards can be inserted into the EHWIC slot on the supported Cisco 1921, 1941, 1941W, 2901, 2911, 2921, 2951, 3925, 3945, 3925E and 3945E integrated services routers. The T1/E1 MFT VWIC3 cards support both T1 and E1, providing additional flexibility in configuring the Cisco MFT VWIC3s for supporting T1, fractional T1, E1, and fractional E1 for both voice and WAN applications. All MFT VWIC3 modules include the drop-and-insert multiplexing capability, which eliminates costly external third-party channel service units/data service units (CSUs/DSUs) and drop-and-insert multiplexers.



The Cisco MFT VWIC3 cards are offered in single-, dual- and quadruple-port versions, which can be used and then redeployed as network requirements change, thereby addressing several applications:

- E1/G.703 data: The Cisco 1- and 2- port G.703 MFT VWIC3 versions act as a WIC, supporting T1, fractional T1, E1 (including structured G.703 with G.704 framing), fractional E1, and unstructured E1 (G.703) applications. To simplify remote management, the G.703 version includes a fully managed DSU. The G.703 versions also support all the capabilities on the T1/E1 versions.
Cabling technology10/100BaseT(X)
Colour of productGreen, Metallic
Compatible productsCisco 1921, 1941, 1941W, 2901, 2911, 2921, 2951, 3925, 3945, 3925E, 3945E
Connectivity technologyWired
Connector typeRJ-45
Data transfer rate (max)2048 Mbit/s
Depth1204 mm
Ethernet LAN (RJ-45) ports quantity2
Ethernet LAN connectionYes
Height191 mm
Host interfacePCI
InterfaceEthernet
LED indicatorsYes
Networking standardsIEEE 802.3
Number of connectors2
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
SafetyUL 60950, CAN/CSA C22.2 No. 60950, IEC 60950-1, EN 60950-1, AS/NZS 60950
Source data-sheetIcecat.biz
Storage temperature (T-T)-25 - 70 °C
Storage temperature range (T-T)-25 - 70 °C
Weight86 g
Width782 mm

Similar products

  • Cisco ASA 6-port SFP
    Cisco ASA 6-port SFP
  • Cisco SPA-8X1FE-TX-V2
    Cisco SPA-8X1FE-TX-V2
  • Cisco ASA 6-port GE
    Cisco ASA 6-port GE
  • Cisco 1 Port 10 Gigabit
    Cisco 1 Port 10 Gigabit
  • Cisco ASA 6-port GE
    Cisco ASA 6-port GE

Cisco VWIC3-2MFT-T1/E1

2-Port T1/E1 Multiflex Trunk Voice/WAN Interface Card, Spare

VWIC3-2MFT-T1/E1=

Out of Stock

£2,602.05
£2,168.38 Ex VAT.
