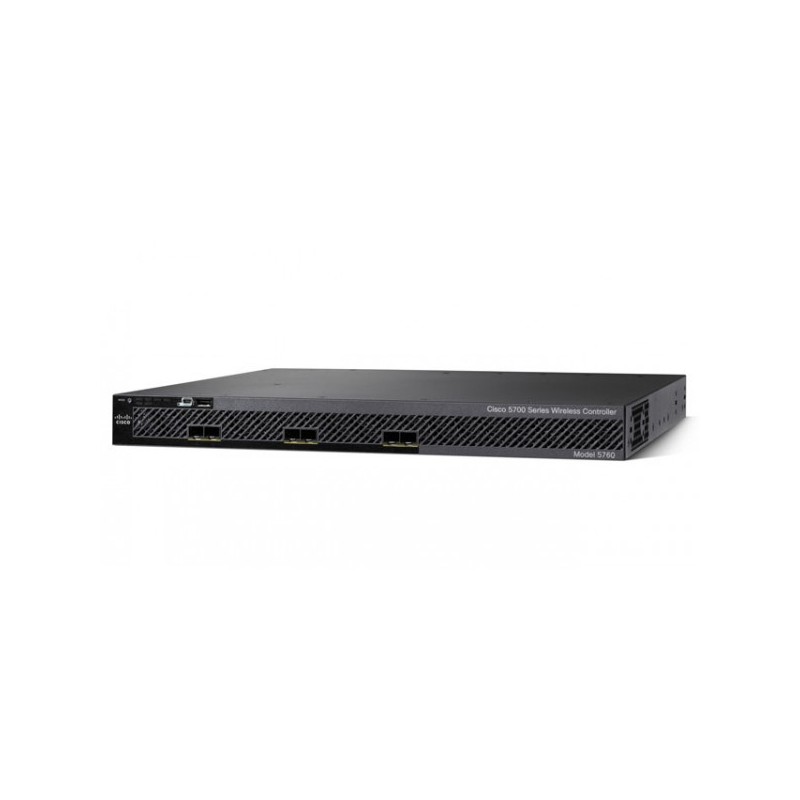

Cisco AIR-CT5760-100-K9
  • Cisco AIR-CT5760-100-K9
The Cisco® 5760 Wireless Controller is an industry-leading platform designed for 802.11ac networks with maximum performance and services at scale, combined with high availability for mission-critical wireless networks. Through the Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC), it delivers wire-speed performance with services such as advanced quality of service (QoS), flexible NetFlow v9, and downloadable ACLs. Delivering on the One Network component of the Unified Access vision, the Cisco 5760 offers:



- Wire-speed 60-Gbps throughput with services

- Up to 1000 access points per controller and 72,000 access points in a cluster

- Up to 12,000 clients per controller and 864,000 clients in a cluster

- Network traffic visibility through flexible NetFlow v9

- RF visibility and protection

- Cisco CleanAir® technology

- ClientLink 2.0

- VideoStream



The 5760 Wireless Controller can operate in both converged access mode and centralized mode. Converged access mode provides hierarchical network design that distributes the wireless data plane at the access layer on Cisco Catalyst® switches for maximum performance and scale. Converged access mode provides maximum resiliency by constraining outages to smaller failure domains. Additionally, converged access mode delivers high availability with access point stateful failover (access point SSO), making sure SSIDs are highly available and have minimal effect on wireless clients.
Cabling technology 10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 10GBASE-LRM, 10GBASE-CX1(1m), 10GBASE-CX1(3m), 10GBASE-CX1(5m), 10/100/1000BASE-T, 1000BASE-SX/LX/LH/EX/ZX, 1000BASE-BX10-D, 1000BASE-BX10-U, 100BASE-FX
Certification 47CFR P. 15 (CFR 47) A
AS/NZS CISPR22 A
CISPR22 A
EN55022 A
ICES003 A
VCCI A
EN61000-3-2
EN61000-3-3
KN22 A
EN55024
CISPR24
KN24
Compatibility Cisco SFP-10G-ER
SFP-10G-LR
SFP-10G-SR
SFP-10G-LRM
SFP-H10GB-CU1M
SFP-H10GB-CU3M
SFP-H10GB-CU5M
GLC-BX-D
GLC-BX-U
GLC-SX-MM
GLC-SX-MMD
GLC-T
GLC-LH-SM
GLC-ZX-SM
CWDM-SFP
DWDM-SFP
SFP-GE-L
SFP-GE-S
GLC-LH-SMD
GLC-EX-SMD
GLC-GE-100FX
Dimensions (WxDxH) 445 x 450 x 44.5 mm
Ethernet LAN (RJ-45) ports quantity 3
Expansion slots 1 x 5760
I/O ports 6 x 10G SFP+
Interface RS-232 (DB-9), mini-USB
LED indicators Yes
Management protocols SNMP v1, v2c, v3, HTTP/HTTPS, Telnet, TFTP, SNTP, HTTP, SSH, SFTP
Networking features IEEE 802.11a, 802.11b, 802.11g, WMM/802.11e, 802.11h, 802.11n
Operating altitude 0 - 3000 m
Operating relative humidity range 5 - 95 %
Operating temperature range (T-T) -5 - 45 °C
Power LED Yes
Power requirements 100 - 240 VAC, 50/60 Hz
Safety UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
Security algorithms supported 3DES, 802.1x RADIUS, DES, EAP-TLS, MD5, SSL/TLS, TKIP, WEP, WPA, WPA2
Source data-sheet Icecat.biz
Storage relative humidity range 5 - 95 %
Storage temperature range (T-T) -40 - 70 °C
Switching protocols IEEE 802.3u 100BASE-TX, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1AX
Wireless LAN connection Yes

Specific References

EAN13
0882658488887

Cisco AIR-CT5760-100-K9

5700 Series Wireless Controller for up to 100 Cisco Access Points
Out of Stock
£40,915.51
£34,096.26 Ex. VAT
Reference: AIR-CT5760-100-K9
Quantity
