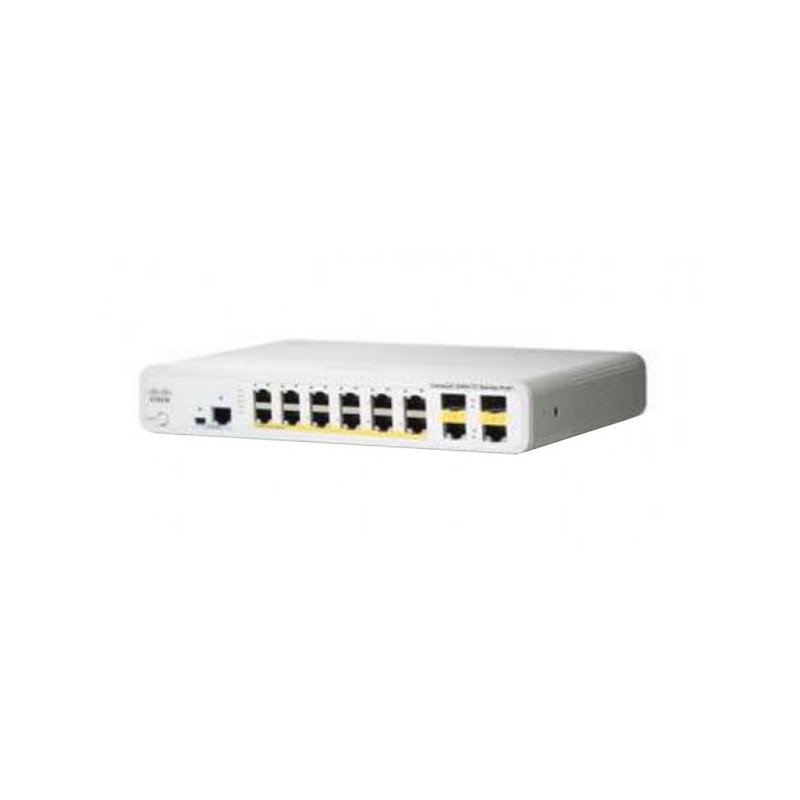

Cisco  Catalyst 2960-C
  • Cisco  Catalyst 2960-C
Cisco Catalyst 2960-C Compact Switches

Cisco® Catalyst® compact switches easily extend an intelligent, fully managed Cisco Catalyst wired switching infrastructure, including end-to-end IP and Borderless Network services, with a single Ethernet cable or fiber from the wiring closet. These attractive, small form-factor Fast Ethernet switches are ideal for connecting multiple devices on the retail sales floor; in classrooms, hotels, and factories; and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.



Cisco Catalyst 2960-C Compact Switches highlights:

- Extend a highly secure, intelligent, managed Cisco Catalyst infrastructure with a single Ethernet cable or fiber from the wiring closet;

- Support for advanced security and services, including voice, video, and Cisco Borderless Network services, to remote endpoints;

- Power over Ethernet (PoE) pass-through enables the compact switch to draw power from the wiring closet and pass it to end devices;

- Attractive, small form factor and fanless operation fit in confined spaces where multiple cable runs could be challenging;

- Easy to deploy, manage and extend the network loop free;

- Enhanced limited lifetime hardware warranty.
10G support No
Access Control List (ACL) Yes
Auto MDI/MDI-X Yes
Bandwidth 10 Gbit/s
Basic switching RJ-45 Ethernet ports quantity 12
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Broadcast storm control Yes
Certification FCC, EN, AS/NZS, VCCI, KCC, ANATEL, CCC, GOST
Colour of product White
Combo SFP ports quantity 2
Connectivity technology Wired
Console port RS-232
Copper ethernet cabling technology 1000BASE-T,1000BASE-TX,100BASE-T,100BASE-TX,10BASE-T
Data link protocols UDLD
Depth 213 mm
DHCP client Yes
DHCP server Yes
Dimensions (WxDxH) 269 x 238 x 44.4 mm
Ethernet LAN (RJ-45) ports quantity 12
Fiber ethernet cabling technology 1000BASE‑LH,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX,100BASE-BX,100BASE-FX,100BASE-LX
Fiber optic connector LC
Flash memory 64 MB
Flow control support Yes
Full duplex Yes
Heat dissipation 91 BTU/h
Height 44.4 mm
IGMP snooping Yes
Input current 1.6 - 8 A
Input voltage 100 - 240 V
Internal memory 128 MB
IP routing Yes
Jumbo frames support Yes
LED indicators LAN,Power,Status
Link aggregation Yes
MAC address table 8000 entries
Management protocols IGMPv3, SNMPv1/2c/3
Mean time between failures (MTBF) 357027 h
MIB support RMON I/II, IF-MIB, Bridge-MIB, Eth-MIB
Multicast support Yes
Networking features Gigabit Ethernet
Networking standards IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Non-operating altitude 0 - 4000 m
Number of power supply units 1
Number of VLANs 255
Operating altitude 0 - 3048 m
Operating relative humidity (H-H) 5 - 95 %
Operating relative humidity range 5 - 95 %
Operating temperature (T-T) -5 - 45 °C
Operating temperature range (T-T) -5 - 45 °C
Packet transfer speed 4.6 mpps
Ports quantity 14
Power consumption (typical) 158 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 12
Power over Ethernet (PoE) support Yes
Power supply included Yes
Quality of Service (QoS) support Yes
Rack mounting No
Routing entries 4000
Safety UL, CAN/CSA, EN, IEC, CE, GB, IEC
Security algorithms 802.1x RADIUS,HTTPS,SSH
Security algorithms supported 802.1x RADIUS, HTTPS, SSH
SFP/SFP+ slots quantity 2
Source data-sheet Icecat.biz
Spanning tree protocol Yes
SSH/SSL support Yes
Stackable No
Static port security Yes
Storage relative humidity (H-H) 5 - 95 %
Storage relative humidity range 5 - 95 %
Storage temperature (T-T) -25 - 70 °C
Storage temperature range (T-T) -25 - 70 °C
Supported data transfer rates 10/100 Mbps
Supported network protocols IPv4, IPv6, TCP, ICMP, UDP, TFTP, ARP, MVR, NTP, LLDP, ICMP, OSPF, BOOTP, Telnet
Switch layer L2
Switch type Managed
Switching protocols SDM
System event log Yes
Total Power over Ethernet (PoE) budget 124 W
USB 2.0 ports quantity 1
VLAN support Yes
Web-based management Yes
Weight 1860 g
Width 269 mm
Wireless LAN connection No
ARP inspection Yes
Private VLAN Yes
BPDU filtering/protection Yes
Traffic classification Yes

Specific References

EAN13
0882658452413

Cisco WS-C2960C-12PC-L

Catalyst 2960-C, PoE, Fast Ethernet, 12 x LAN, 2 x 1Gb Combo SFP , 124W, 1.86kg, White
Out of Stock
£1,006.93
£839.11 Ex. VAT
Reference: WS-C2960C-12PC-L
Quantity
