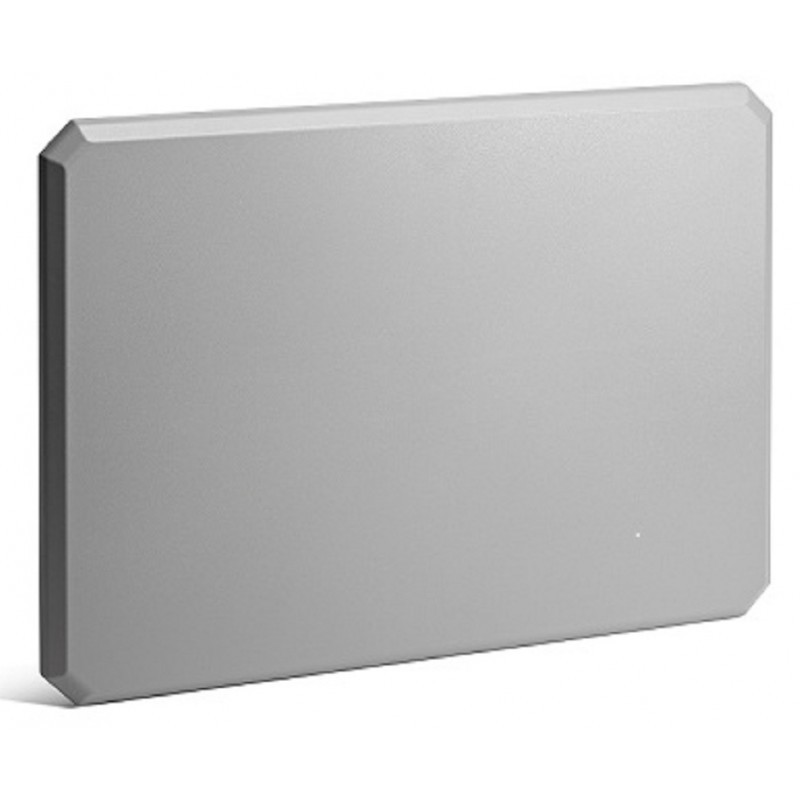

Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna



This document describes the AIR-ANT2513P4M-N antenna and provides electrical specifications and mounting instructions. The antenna is a four-port polarization-diverse patch array that operates over the 2.4-GHz and 5-GHz Wi-Fi bands. It ships with an articulating mount for use on flat surfaces and masts and is adjustable in both the ho

rizontal and vertical planes. The radome is paintable using commonly available non-conductive spray paints, such as Krylon or Rust-Oleum. The antenna is designed for use in indoor and outdoor environments with Cisco Aironet 3702P Access Points.
Antenna connector type N-type
Antenna gain level (max) 13 dBi
Frequency band 2.4 - 2.5 / 5.15 - 5.9 GHz
Gender Female
Height 21.1 mm
Impedance 50 Ω
Operating temperature (T-T) -30 - 70 °C
Polarization Dual Linear
Storage temperature (T-T) -40 - 85 °C

Cisco AIR-ANT2513P4M-N

Four-Port Dual-Band Polarization-Diverse Antenna, 2.4-2.5/5.15-5.925 GHz, 13 dBi, 2.3 kg
Out of Stock
£1,088.04
Tax excluded
Reference: AIR-ANT2513P4M-N=
