- Superb video quality
- Multiple H.264 streams
- 4 audio channels
- Support for balanced microphones
- Intelligent video capabilities
- High-density solution
High-density video encoder rack solution

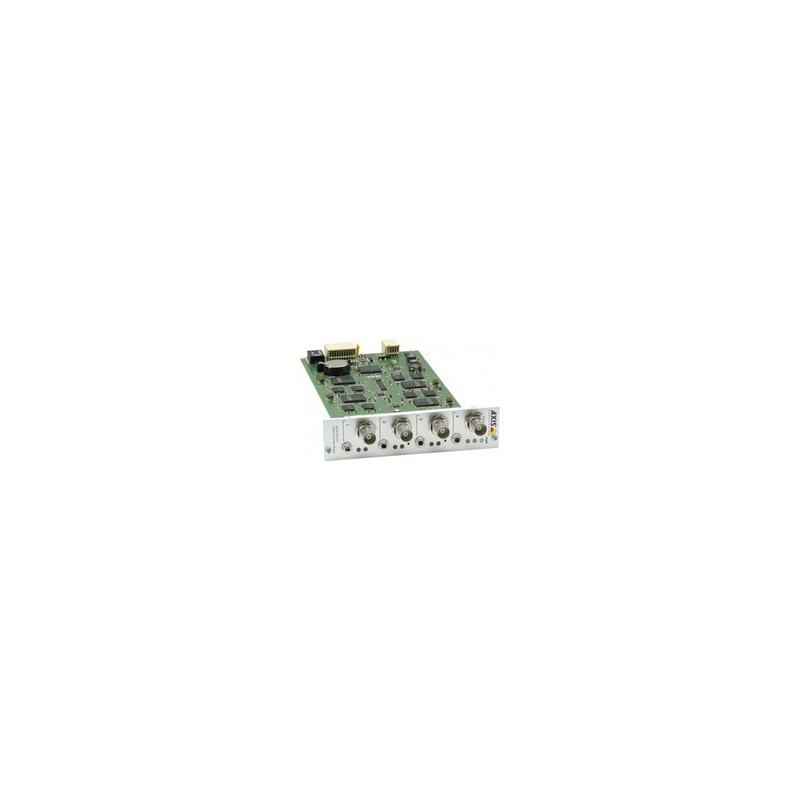

AXIS Q7414 Video Encoder Blade is a 4-channel blade for video encoder rack solutions, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system. When AXIS Q7414 blades are used with AXIS Q7900 Rack, up to 56 analog cameras can be supported in one 4U, 19-inch rack.
Outstanding compression capabilities
AXIS Q7414 supports high performance H.264, with true multi-streaming from each channel. It can provide multiple, individually configurable video streams from each channel at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). Motion JPEG is also supported for increased flexibility.
Intelligent video capabilities
AXIS Q7414 offers intelligent capabilities such as enhanced video motion detection, active tampering alarm and audio detection. The encoder’s external inputs and outputs can be connected to devices such as sensors and relays, enabling the system to react to alarms and activate lights or open/close doors.
- Multiple H.264 streams
- 4 audio channels
- Support for balanced microphones
- Intelligent video capabilities
- High-density solution
High-density video encoder rack solution
AXIS Q7414 Video Encoder Blade is a 4-channel blade for video encoder rack solutions, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system. When AXIS Q7414 blades are used with AXIS Q7900 Rack, up to 56 analog cameras can be supported in one 4U, 19-inch rack.
Outstanding compression capabilities
AXIS Q7414 supports high performance H.264, with true multi-streaming from each channel. It can provide multiple, individually configurable video streams from each channel at full frame rate in all resolutions up to D1 (720x480 in NTSC, 720x576 in PAL). Motion JPEG is also supported for increased flexibility.
Intelligent video capabilities
AXIS Q7414 offers intelligent capabilities such as enhanced video motion detection, active tampering alarm and audio detection. The encoder’s external inputs and outputs can be connected to devices such as sensors and relays, enabling the system to react to alarms and activate lights or open/close doors.
| Built-in processor | 4x ARTPEC-4 |
| Certification | EN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN61000-6-1, EN61000-6-2, FCC Part 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS CISPR 22, KCC Class A, UL/IEC/EN 60950-1 |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| DC-in jack | Yes |
| Dimensions (WxDxH) | 129 x 255 x 30 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Image settings | Brightness, Color, Compression, Contrast, Mirroring, Privacy mask |
| Internal memory | 1024 MB |
| IP address filtering | Yes |
| Line-in | Yes |
| Line-out | Yes |
| Maximum video resolution | 720 x 576 pixels |
| Microphone in | Yes |
| Motion JPEG frame rate | 30 fps |
| NTSC resolutions | 720 x 480 pixels |
| Operating relative humidity (H-H) | 20 - 80 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Password protection type | Yes |
| Power consumption (typical) | 13 W |
| Power requirements | 12V DC |
| PTZ control (Pan/Tilt/Zoom) | Yes |
| Security algorithms | 802.1x RADIUS |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, QoS 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Video motion detection | Yes |
| Weight | 229 g |
Specific References
- EAN13
- 7331021034853
Axis Q7414 Kit
Q7414 H.264, NTSC/PAL, PTZ Video Encoder Blade, 10 pcs
£8,057.12
£6,714.26 Ex. VAT
Q7414 H.264, NTSC/PAL, PTZ Video Encoder Blade, 10 pcs
