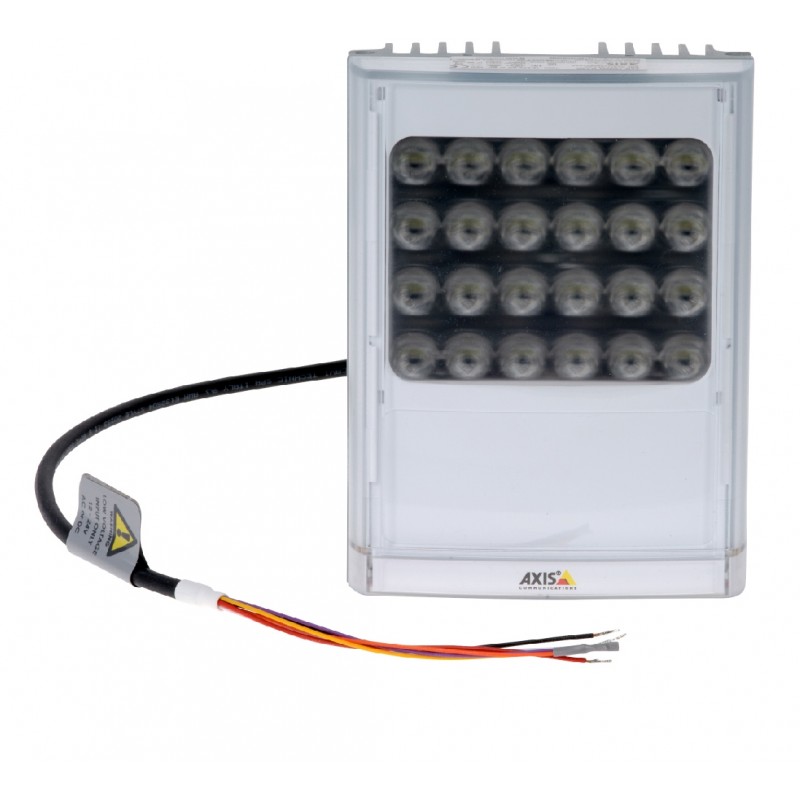

Axis T90D35 W-LED Illuminator
  • Axis T90D35 W-LED Illuminator
  • Axis T90D35 W-LED Illuminator
Optimized to match your camera’s field of view

Based on the latest LED technology, AXIS T90D35 W-LED delivers more light where it is needed. It generates longer white LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D35 W-LED Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120º diverging lens is available.



Installation made efficient, easy and flexible

AXIS T90D35 W-LED Illuminator enhances potential energy savings thanks to integrated green features, such as power adjust and telemetry control. The illuminator can easily be installed on different mounts, for walls or poles.



- High and efficient White LED performance

- AC/DC-powered illuminator

- Flexible angle of white illumination

- Various mounting options
Brand compatibility AXIS
Cable length 2.5 m
Connectivity technology Wired
Depth 68 mm
Height 180 mm
Input voltage 12-24 V
Material Aluminium,Polycarbonate
Maximum operating distance 180 m
Operating relative humidity (H-H) 10 - 100 %
Operating temperature (T-T) -50 - 50 °C
Placement supported Universal
Storage temperature (T-T) -50 - 70 °C
Type Illuminator
Wall mountable Y
Weight 1650 g
Width 135 mm
Product colour Silver,White

Specific References

EAN13
7331021062238

Download

01217-001.pdf

Axis T90D35 W-LED Data Sheet

Download (709.4KB)

Axis T90D35 W-LED

High-performance white LED illuminator with ease of installation
Out of Stock
£746.82
Tax excluded
Reference: 01217-001
