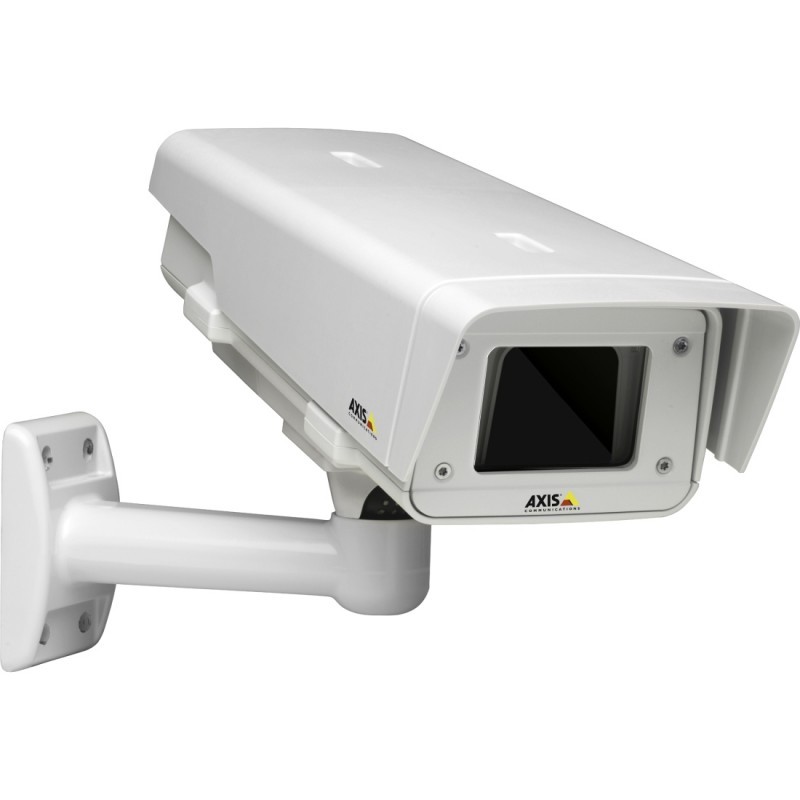

Axis T92E20
  • Axis T92E20
- Dual shell

- IP66- and NEMA 4X-rated

- IK10-rated

- Arctic Temperature Control

- One cable installation



Features to protect what you value

AXIS T92E Housing Series has IP66 and NEMA 4X protection rating against the ingress of dust, windblown dust, rain, high pressure water jets from any direction, hose-directed water, and damage from external ice formation. IK10-rated for protection against impact and vandal acts. In addition, the cables are vandal protected and the front window is replaceable.



For arctic or tropical environments

AXIS T92E20 Outdoor Housing features a dual shell technology, where an internal shell stores heat in cold environments. Fan ventilation for hot environments, where the heat is transferred to the outer chassis for efficient cooling. Operating conditions ranges between -30 °C to 50 °C (-22 °F to 122 °F) with PoE (IEEE802.3af) and down to -40 °C (-40 °F) with High PoE (IEEE802.3at). The Arctic Temperature Control allows the camera not only to function at -40 °C (-40 °F), but can also power up at that temperature following a power failure.



Ease of installation

A broad list of included accessories make AXIS T92E Series easy to mount in all situations, thanks to one cable installation, wall bracket, 5 m Ethernet cable with pre-mounted gaskets, captive screws and it is prepared for mounting of IR or White LED illuminators.
Certification IEC 60529 IP66, NEMA 250 Type 4X, IEC 62262 IK10
EN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 60950-22, IEC 60068-2-6, IEC 60068-2-27, FCC Part 15 B B, VCCI B ITE, C-tick AS/NZS CISPR 22, ICES-003 B
Colour of product White
Connectivity technology Wired
Depth 405 mm
Height 142 mm
International Protection (IP) code IP66
Material Aluminium
Placement supported Indoor
Type Housing
Weight 2500 g

Specific References

EAN13
7331021034211

Axis T92E20

T92E20, PoE, f/ M11, P13 Series & Q1755, White
Out of Stock
£256.76
Tax excluded
Reference: 0433-001
Quantity
