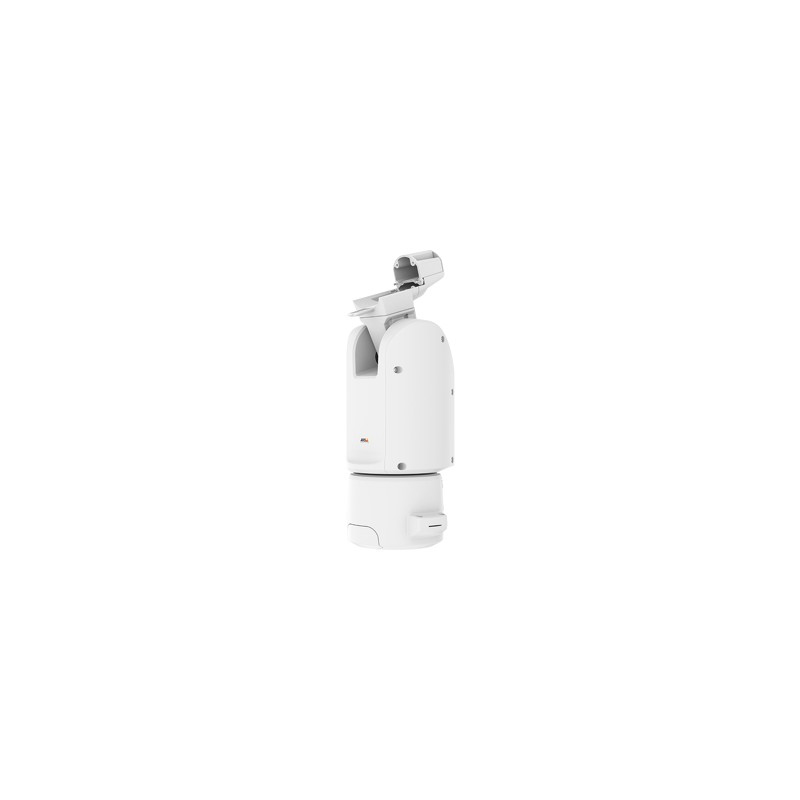

AXIS T99A11 Positioning Unit 24 V AC/DC is a highly responsive and reliable positioning unit, designed for both high-speed and ultra-slow, jerk-free pan and tilt movements – putting operators on the spot in an instant or providing smooth panoramic viewing.

When the positioning unit is column-mounted, it enables a 360° unobstructed field of view for the PT mount thermal camera and a ground-to-sky view of 135°. The positioning units are easy to mount in a variety of ways, thanks to optional mounts for wall and pole installations.

AXIS T99A11 unit includes both RJ45 and SFP interfaces, enabling a long fiber-optic connection with a failover network link. They operate in extreme temperatures, thanks to the de-icing control that heats up the unit, ensuring a constant operational temperature. The positioning unit is specially designed to be reliable, robust and weatherproof.

Certification	EN 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, VCCI Class A ITE, ICES-003 Class A, RCM AS/NZS CISPR 32 Class A, EN 50121-4, IEC 62236-4\nIEC/EN/UL 62368-1, IEC/EN/UL 60950-22\nEC/EN 60529
Colour of product	White
Connectivity technology	Wired
Depth	289 mm
Height	557 mm
Input voltage	24 V
International Protection (IP) code	IP66
Material	Aluminium
Operating relative humidity (H-H)	10 - 100 %
Operating temperature (T-T)	-50 - 60 °C
Output voltage	12 V
Quick installation guide	Y
RoHS compliance	Y
Storage temperature (T-T)	-40 - 70 °C
Weight	10200 g
Width	229 mm
Tilt angle range	-90 - 45 °
