Simplify your solution with PoE-powered illuminator
AXIS T90D30 PoE IR-LED Illuminator offers a quick and reliable installation with a plug-and-play twisted pair cable. Create a flexible and cost-effective system by connecting the PoE illuminator with any PoE midspans or switches from Axis.
Optimized to match your camera’s field of view
Based on the latest LED technology, AXIS T90D30 PoE IR-LED delivers more light where it is needed. It generates longer infrared LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D30 PoE IR-LED Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120º diverging lens is available.
Installation made easy and flexible
AXIS T90D30 PoE IR-LED Illuminator can easily be installed on different mounts, for walls or poles:
AXIS T90D30 PoE IR-LED Illuminator offers a quick and reliable installation with a plug-and-play twisted pair cable. Create a flexible and cost-effective system by connecting the PoE illuminator with any PoE midspans or switches from Axis.
Optimized to match your camera’s field of view
Based on the latest LED technology, AXIS T90D30 PoE IR-LED delivers more light where it is needed. It generates longer infrared LED illumination distance, minimize light wastage, and prevent overexposure of foreground objects. With interchangeable lenses, the angle of illumination can be optimized to match your network camera's field of view. AXIS T90D30 PoE IR-LED Illuminator comes with a pre-mounted 10º diverging lens, and it includes diverging lenses of 35º, 60º and 80º beam angle. Moreover, an optional 120º diverging lens is available.
Installation made easy and flexible
AXIS T90D30 PoE IR-LED Illuminator can easily be installed on different mounts, for walls or poles:
| Brand compatibility | AXIS |
| Certification | FCC Part 15.107 and 15.109 Class B, ICES-003 Issue 6 Class B, EN 55032 Class B, RCM AS/NZS CISPR 32 Class B, VCCI Class B, EN 55015, EN 55024, EN 50130–4, EN 61547, KCC KN15, KN 61547, IEC/EN 60598-1, IEC/EN 62471 (risk group 2), C22.2 No 250.0–08, UL |
| Colour of product | Black |
| Compatibility | 01219-001, 01220-001, 01221-001 |
| Connectivity technology | Wired |
| Depth | 68 mm |
| Height | 180 mm |
| International Protection (IP) code | IP66 |
| Material | Aluminium,Polycarbonate |
| Operating relative humidity (H-H) | 10 - 100 % |
| Operating temperature (T-T) | -50 - 50 °C |
| Storage temperature (T-T) | -50 - 70 °C |
| Type | IR LED unit |
| Wall mountable | Y |
| Weight | 1650 g |
| Width | 135 mm |
Specific References
- EAN13
- 7331021062191

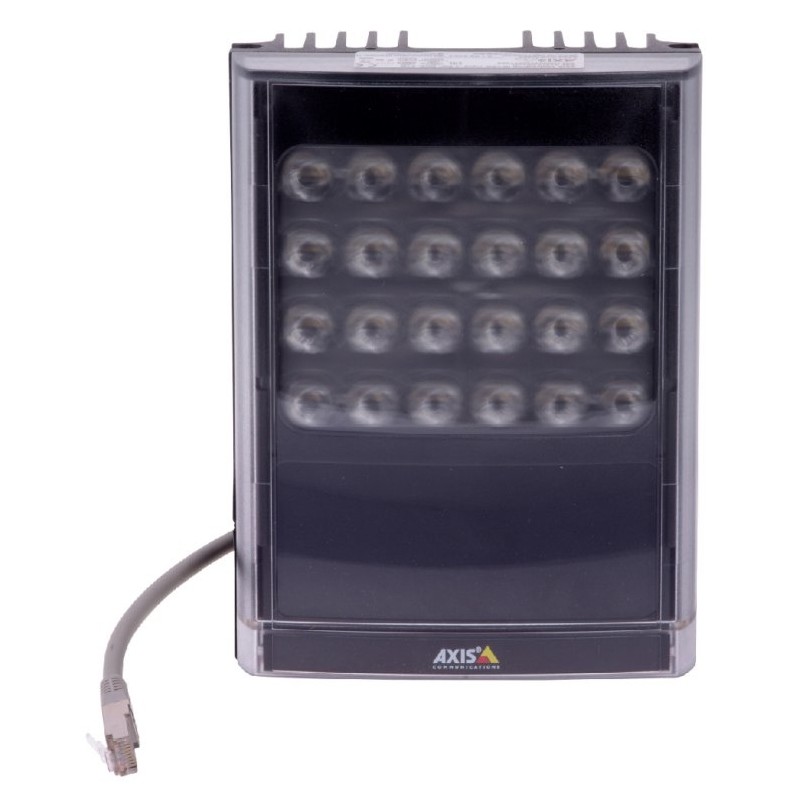

Axis T90D30
IR LED Unit, IP66, 135x68x180mm, 1650g, Black
£905.05
£754.21 Ex. VAT
IR LED Unit, IP66, 135x68x180mm, 1650g, Black
