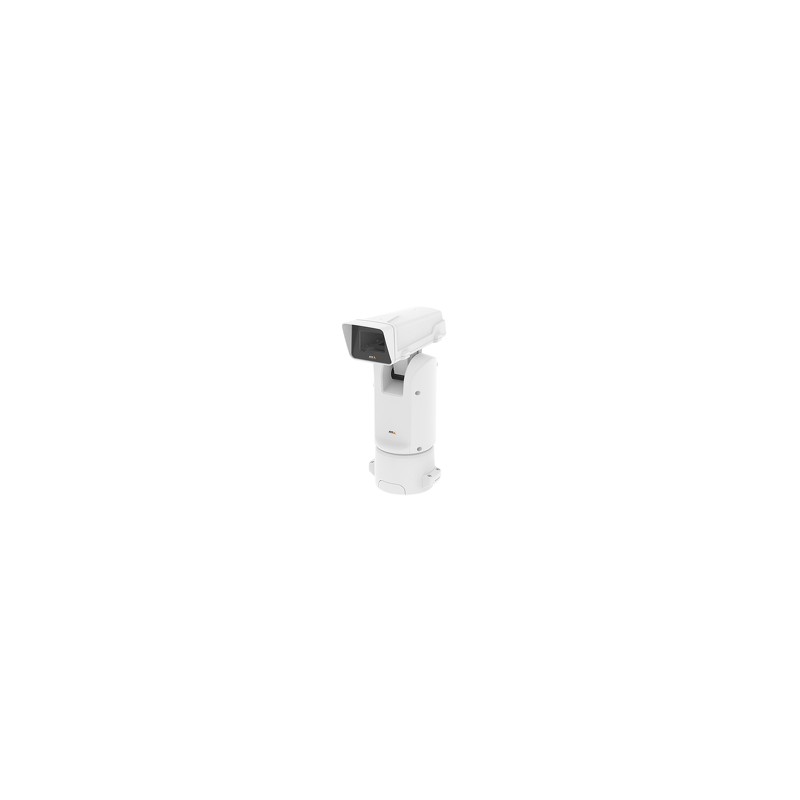

AXIS T99A10 Positioning Unit 24 V AC/DC
AXIS T99A10 Positioning Unit 24 V AC/DC is a highly responsive and reliable positioning unit, designed for both high-speed and ultra-slow, jerk-free pan and tilt movements – putting operators on the spot in an instant or providing smooth panoramic viewing. Selected Axis fixed box network cameras can be installed in its protective housing. When the positioning unit is column-mounted, it enables a 360° unobstructed field of view for the camera and a ground-to-sky view of 135°. The positioning units are easy to mount in a variety of ways, thanks to optional mounts for wall and pole installations. AXIS T99A10 unit includes both RJ45 and SFP interfaces, enabling a long-distance fiber-optic connection with a failover network link. They operate in extreme temperatures, thanks to the de-icing control that heats up the unit, ensuring a constant operational temperature. The positioning unit is specially designed to be reliable, robust and weatherproof.
Brand compatibility |
AXIS |
Certification |
EN 55032 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, VCCI Class A ITE, ICES-003 Class A, RCM AS/NZS CISPR 32 Class A, EN 50121-4, IEC 62236-4, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC/EN 60529 IP66, IEC 62262 IK10, NEMA |
Colour of product |
White |
Compatibility |
M1124, P1357, P1365 Mk II, Q1615 Mk II, M1125, P1364, P1367, Q1635 |
Connectivity technology |
Wired |
Depth |
385 mm |
Height |
563 mm |
Input voltage |
24 V |
International Protection (IP) code |
IP66 |
Operating relative humidity (H-H) |
10 - 100 % |
Operating temperature (T-T) |
-50 - 60 °C |
Placement supported |
Universal |
RoHS compliance |
N |
Storage temperature (T-T) |
-40 - 70 °C |
Turn angle |
360 ° |
Type |
Base unit |
Weight |
11400 g |
Width |
229 mm |
Tilt angle range |
-90 - 45 ° |
Specific References
- EAN13
- 7331021062320
