- Versatile connection with IDC connector
- Built-in IP66 RJ45 connector
- For wall and pole mounting
- Protection against impact, water, dust, and corrosion
Versatile connection with RJ45 or IDC

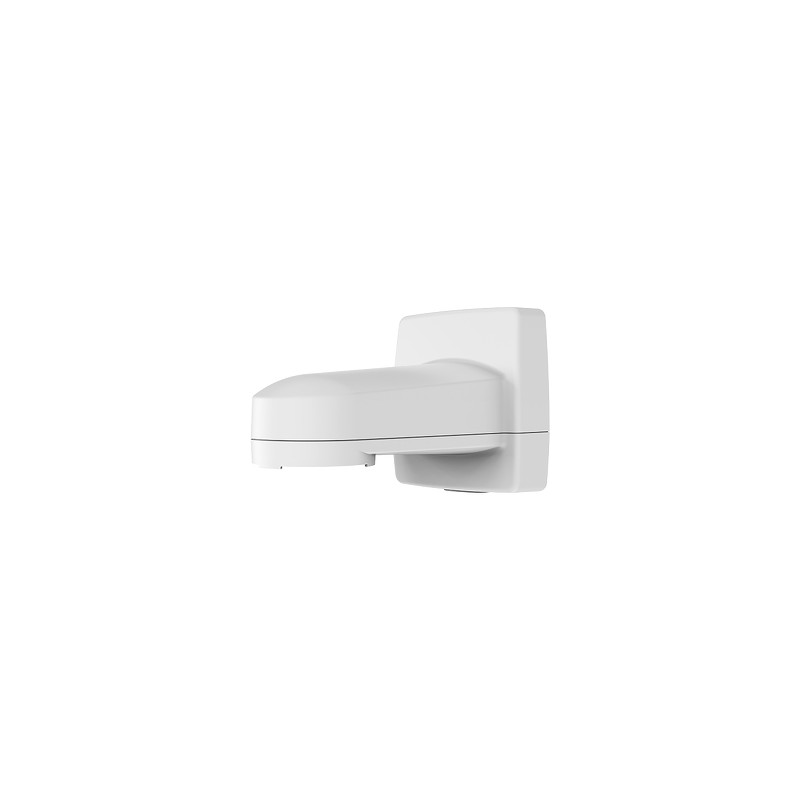

AXIS T91L61 Wall-and-Pole Mount gives the installer a choice of using either RJ45 or IDC (insulation-displacement contact) connector for the installation. It comes with a built-in cable with an Ethernet IP66 RJ45 connector, which facilitates the installation and prevents water and dust to enter the network camera.
Flexible installation
Thanks to its impact-resistant and outdoor proven material, AXIS T91L61 Wall-and-Pole Mount suits both indoor and outdoor environments. Flipping the mounting bracket makes it possible to turn AXIS T91L61 from a wall mount to a pole mount (stainless steel straps are required, a choice of either 1450 mm/57 in or 700 mm/28 in). The mount is also suitable for corner mounting with an optional accessory.
Certification |
IEC/EN/UL 60950-1, IEC/EN/UL 60950-22, IEC 60721, IEC 60721-4 Class 4M3, MIL-STD 810G 509.5, IP66, NEMA 250 Type 4X, RoHS, WEEE, IEC 62262 IK10 |
Colour of product |
White |
Compatibility |
AXIS P5514\nAXIS P5514-E\nAXIS P5515\nAXIS P5515-E\nAXIS P5624-E\nAXIS P5624-E Mk II\nAXIS P5635-E\nAXIS P5635-E Mk II\nAXIS Q3708-PVE\nAXIS Q3709-PVE\nAXIS Q6000-E\nAXIS Q6000-E Mk II\nAXIS Q6032\nAXIS Q6032-E\nAXIS Q6034\nAXIS Q6034-E\nAXIS Q6035\nAXIS |
Connectivity technology |
Wired |
Depth |
174 mm |
Height |
152 mm |
International Protection (IP) code |
IP66 |
Material |
Aluminium |
Operating temperature (T-T) |
-50 - 65 °C |
Placement supported |
Universal |
Storage temperature (T-T) |
-40 - 65 °C |
Type |
Mount |
Weight |
1850 g |
Width |
280 mm |
Maximum weight capacity |
30 kg |
Specific References
- EAN13
- 7331021055568
