Easy-to-install, recessed dome

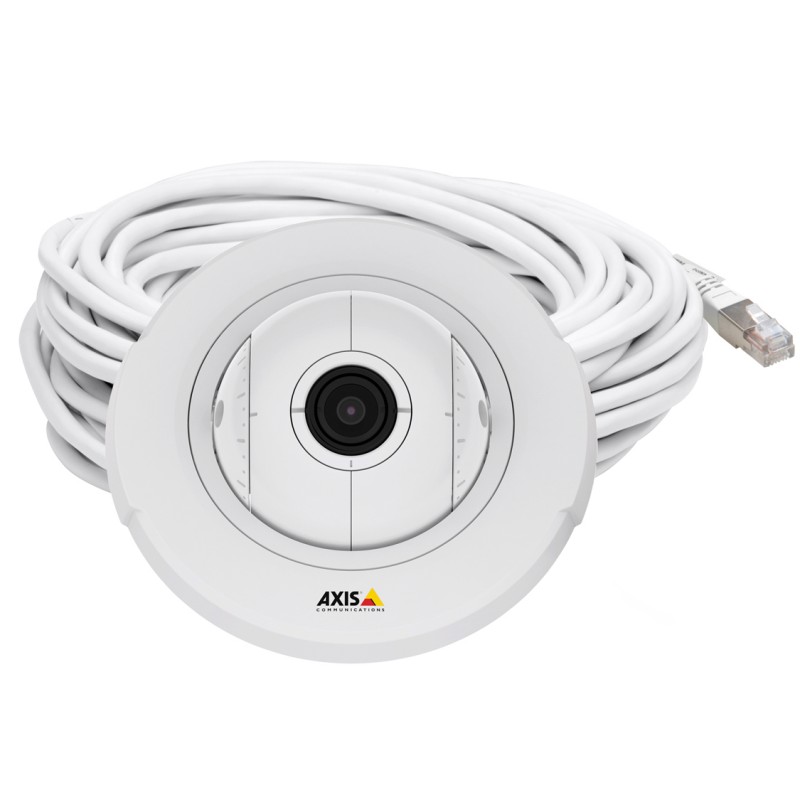

AXIS F4005 is a compact, easy-to-install recessed dome sensor unit for discreet video surveillance indoors in retail, office and banking environments.
For use with an AXIS F Main Unit, AXIS F4005 provides a 1080p resolution and a wide 113º horizontal field of view. It has a tilt range of 120°, enabling the sensor unit to be directed to the desired viewing area. AXIS F4005 also supports Axis’ Corridor Format to suit more vertically oriented areas such as staircases, hallways and aisles. A rotation tool is supplied for leveling the image. The sensor unit comes with a 12-m (39 ft.) cable for connection to a main unit.
WDR – Forensic Capture
AXIS F4005 supports Wide Dynamic Range (WDR) – Forensic Capture, which can be activated when the sensor unit is connected to a main unit that supports this feature. WDR – Forensic Capture enables a high level of detail to be visible in both the bright and dark areas of a scene. AXIS F4005 has the same video performance as AXIS F1005-E Sensor Unit.
Certification |
ECE R10 rev.04, EN 50121-4, IEC/EN/UL 60950-1,\nIEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14,\nIEC 60068-2-30, IEC 60068-2-60, IEC 60068-2-78, IEC 62236-4,\nEN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3,\nEN 61000-6-1, EN 61000-6-2, FCC Part 15 S |
Colour of product |
White |
Connectivity technology |
Wired |
Depth |
38 mm |
Diameter |
112 mm |
Housing material |
Plastic |
Operating relative humidity (H-H) |
10 - 85 % |
Operating temperature (T-T) |
-30 - 55 °C |
Placement supported |
Indoor |
Resolution |
1920 x 1200 pixels |
Storage temperature (T-T) |
-40 - 65 °C |
Tilt angle |
0 - 120 ° |
Type |
Sensor unit |
Viewing angle, horizontal |
113 ° |
Viewing angle, vertical |
62 ° |
Weight |
530 g |
Specific References
- EAN13
- 7331021049482
