Axis T93F05
  • Axis T93F05

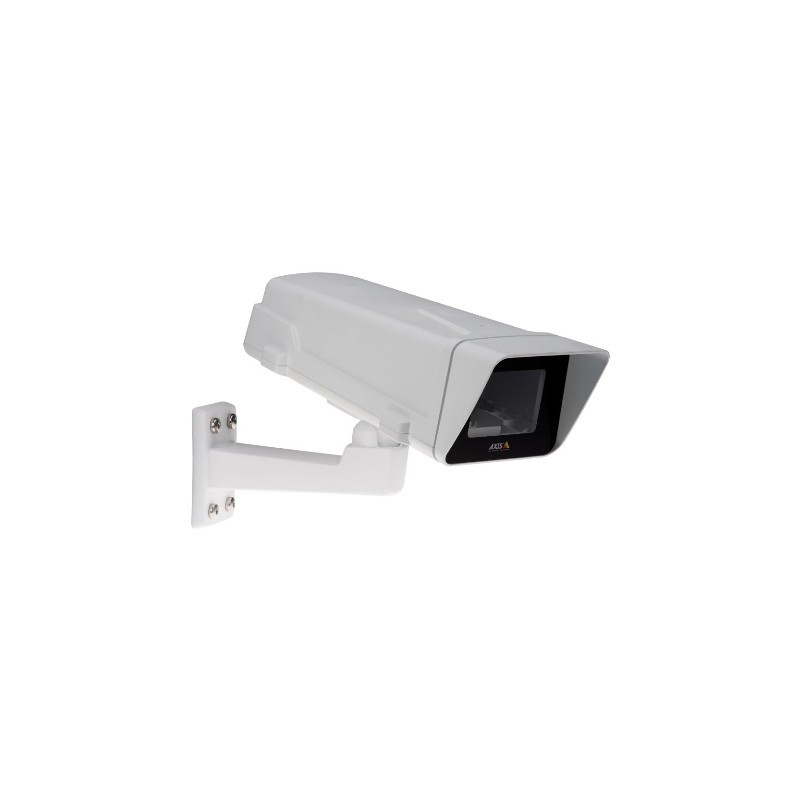

AXIS T93F05 Protective Housing is a pure protective enclosure and does not have any electronics inside. Therefore, the lower temperature specification is 0 ºC.

Features to protect what you value

AXIS T93F Housing Series has IP66 and NEMA 4X protection rating against the ingress of dust, windblown dust, rain, high pressure water jets from any direction, hose-directed water, and damage from external ice formation. IK10-rated for protection against impact and vandal acts.

In addition, the cables are vandal protected and it is prepared to accommodate an optional alarm switch that triggers at vandal attempts.

Corridor format

As optional accessory, AXIS Corridor Format Bracket A can be purchased if the fixed camera needs to be installed in a Corridor Format, but keeping the housing straight. The Corridor Format installation is particularly suitable for surveillance of narrow alleys or perimeters.

Ease of installation

AXIS T93F Series is out-of-the-box ready for installation outdoors. AXIS T94Q01A Wall Mount is included. For installations involving protective pipes, AXIS T94R01P Conduit Back Box (optional accessory) should be used. Threaded holes underneath the housing simplify installation of Axis Illuminators.
Colour of product White
Compatibility AXIS P13 Series, AXIS Q16 Series
Connectivity technology Wired
Height 120 mm
International Protection (IP) code IP66
Operating temperature (T-T) 0 - 40 °C
Placement supported Outdoor
Tilt angle 25 - -65 °
Type Housing
Weight 1200 g

Specific References

EAN13
0493212495441

Axis T93F05

Protective Housing, 1200 g
Out of Stock
£129.17
Tax excluded
Reference: 5900-261
Quantity
