- Dual shell - IP66- and NEMA 4X-rated - IK10-rated - Arctic Temperature Control - One cable installation Features to ... Read More
This product is no longer in stock
- Dual shell
- IP66- and NEMA 4X-rated
- Arctic Temperature Control
- One cable installation
Features to protect what you value
AXIS T92E Housing Series has IP66 and NEMA 4X protection rating against the ingress of dust, windblown dust, rain, high pressure water jets from any direction, hose-directed water, and damage from external ice formation. IK10-rated for protection against impact and vandal acts. In addition, the cables are vandal protected and the front window is replaceable.
For arctic or tropical environments

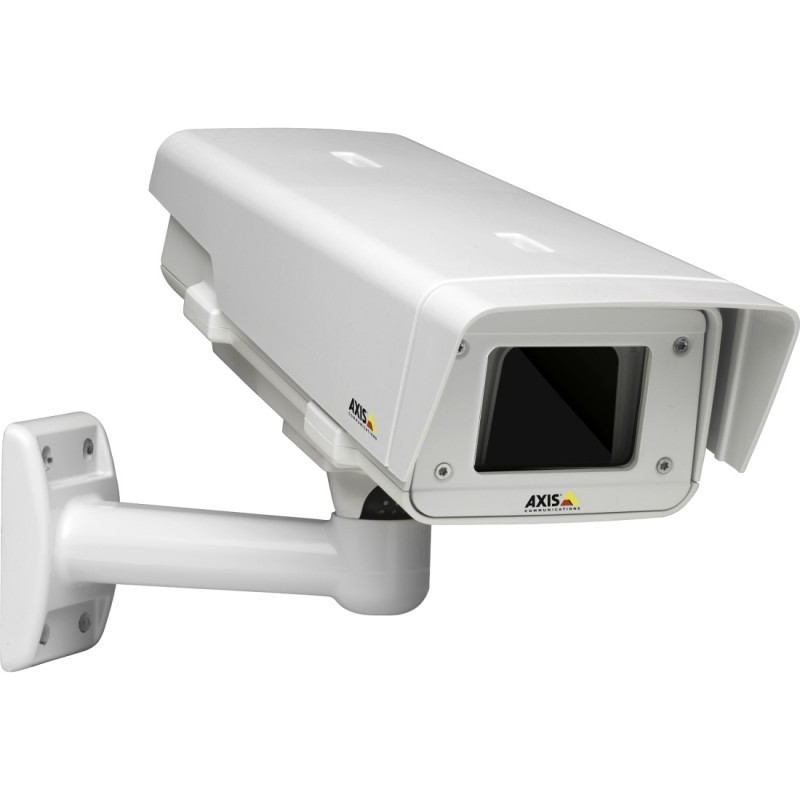

AXIS T92E20 Outdoor Housing features a dual shell technology, where an internal shell stores heat in cold environments. Fan ventilation for hot environments, where the heat is transferred to the outer chassis for efficient cooling. Operating conditions ranges between -30 °C to 50 °C (-22 °F to 122 °F) with PoE (IEEE802.3af) and down to -40 °C (-40 °F) with High PoE (IEEE802.3at). The Arctic Temperature Control allows the camera not only to function at -40 °C (-40 °F), but can also power up at that temperature following a power failure.
Ease of installation
A broad list of included accessories make AXIS T92E Series easy to mount in all situations, thanks to one cable installation, wall bracket, 5 m Ethernet cable with pre-mounted gaskets, captive screws and it is prepared for mounting of IR or White LED illuminators.
Pure protection for indoors
AXIS T92E05 Protective Housing is stripped down from the electronics components, maintaining the protection rating to defend the network camera in those environments where temperature management is not a demand, e.g. in subways or shopping malls.
IEC 60529 IP66, NEMA 250 Type 4X, IEC 62262 IK10 IEC 60068-2-6, IEC 60068-2-27
