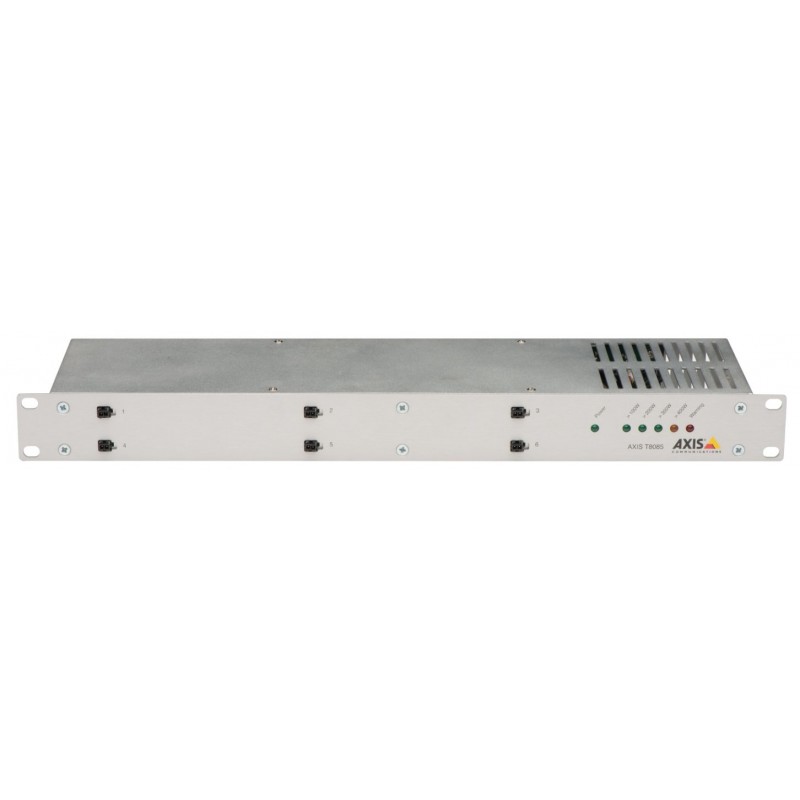

AXIS T8085 PS57 500 W 1U



AXIS T8085 PS57 500 W 1U is a 19" rack-mountable 500 W power supply in a 1U rack. For use with AXIS T8646 PoE+ Over Coax Blade in combination with AXIS T8642 Ethernet over Coax devices. Both the device unit and the network camera can receive power over the coax cable using AXIS T8085 500 W power supply making the installation and maintenance very effective.
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Certification EN 55024, EN 55022 Class A, FCC, ICES-003, C-tick AS/NZS CISPR 22 Class A, IEC/EN 60950-1
Colour of product White
Depth 130 mm
Height 44.5 mm
Input current 5 A
LED indicators Y
Mounting type Rack mounting
Operating temperature (T-T) 0 - 40 °C
Power over Ethernet (PoE) Yes
Storage temperature (T-T) -10 - 70 °C
Weight 1860 g
Width 480 mm
Total power 500 W
Power supply unit (PSU) form factor 1U

5504-863.pdf

Axis T8085 Data Sheet

Axis T8085

500W, 100-240V, 50/60Hz, 5A, 480x130x44.5mm, 1.86kg, White
Out of Stock
£886.08
Tax excluded
Reference: 5504-863
Quantity
