Axis T8124-E

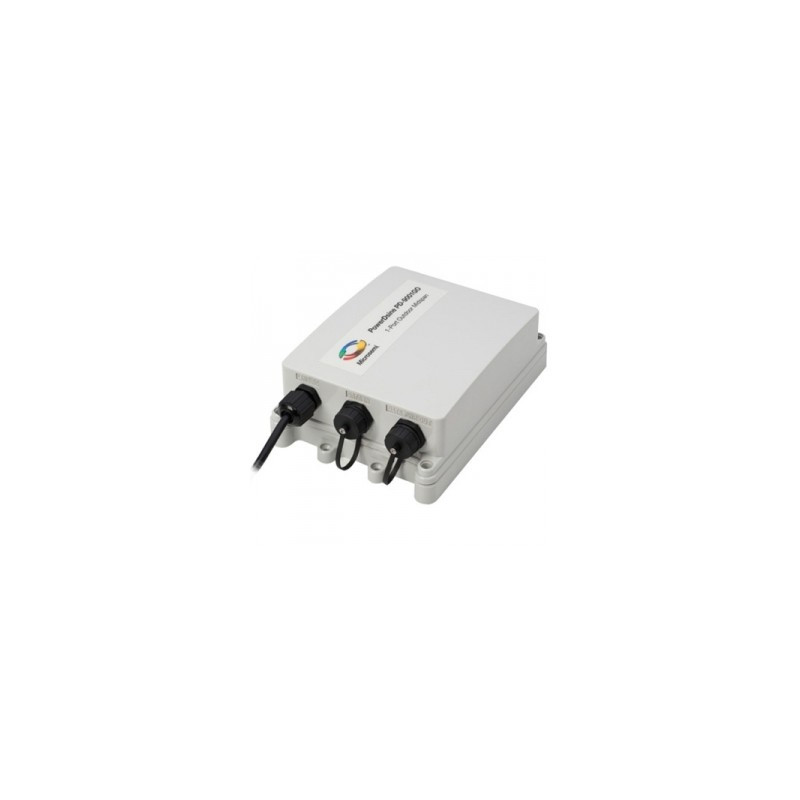

T8124-E Outdoor Midspan 60W

More details

5031-241

Out of Stock

Axis network video compatibility The midspans and splitters conform to the IEEE 802.3at for powering devices with high ... Read More

Free tester with every 5 boxes of cable

New product

£301.74 Inc. VAT

£251.45

This product is currently out of stock. We update our stock levels throughout the day so check back soon for more information.
  • More Info

  • Details

  • Spec Sheet

Axis network video compatibility



The midspans and splitters conform to the IEEE 802.3at for powering devices with high power requirements on a network. The midspans are also IEEE 802.3af compliant, which means that they can be used with all Axis network video products with built-in PoE support.



The function of a midspan is to inject power into a network cable. A splitter, which separates data and power coming over an Ethernet cable, is used for a network video product without built-in support for PoE.



Outdoor-ready from -40 °C to 65 °C





The outdoor-ready midspans are IP66- and NEMA 4X-rated, with extended temperature range from -40 °C to 65 °C (-40 °F to 149 °F) at certain output power. AXIS T8123-E and AXIS T8124-E also offer surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges. Thanks to the IP66-rated RJ-45 connectors, the installer does not have to open the outdoor midspan, just connect the mains cable and the network video produc
AC adapter frequency50/60 Hz
AC adapter input voltage100 - 240 V
Cabling technology10/100/1000BaseT(X)
CertificationFCC part 15, Class B with FTP cabling, EN 55022\nClass B, EN 55024, EN 61000-4-5 Class 5\n(6kV CM), VCCI, ICES-003, KCC, C-tick, CQC,\nUL 60950-1, UL 60950-22 (UL/cUL), GS Mark, CB, KC, S-mark, IEC 60529 IP66, NEMA 250 Type 4X,\nASTM B-117, GR-1089-CORE,
Compliance industry standardsIEEE 802.3af, IEEE 802.3at
Dimensions (WxDxH)70 x 150 x 214 mm
Electromagnetic compatibilityIP66
Ethernet interface typeFast Ethernet
Ethernet LAN (RJ-45) ports3
Ethernet LAN data rates10,100,1000 Mbit/s
LED indicatorsNo
Operating relative humidity (H-H)10 - 100 %
Operating temperature (T-T)-40 - 85 °C
Power consumption (typical)60 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) supportYes
SafetyFCC
Storage temperature (T-T)-40 - 85 °C
Weight1000 g
Power over Ethernet (PoE) voltage55 V
EAN7331021002135
ManufacturerAxis
