Features
- Integrated KVM console with 17" or 19" LCD monitor in a Dual Rail housing
- A single console controls up to 16 computers
- Space-Saving RJ-45 connectors and Cat 5e/6 cabling
- KVM adapter cables designed with automatic conversion to allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
- OSD tree structure makes finding and managing computers easy
- Conveniently located station and port selectors with LED displays to quickly switch to target computers
- Dual Rail housing is slightly less than 1U with top and bottom clearance for smooth operationmm in U of rack space
- Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB or PS/2 keyboard, and USB or PS/2 mouse)
- Supports external USB mouse
- Dual Rail - LCD monitor slides independently of the keyboard/touchpad
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console lock - enables the console drawer to remain securely locked away in position when not in use
- Dedicated Hotkey Mode and OSD Invocation Keys reduce the number of keystrokes and provide quick access to these functions
- Daisy chain up to 31 additional KVM switches to control up to 512 computers
- Auto Scan mode enables continuous monitoring of user-selected computers
- Multiplatform support: PC, Mac, Sun and Serial
- Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters
- Configure port access rights for users on a port - by - port basis
- Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
- Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
- Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
- LCD power button helps save energy and prolong displays’ life
- Broadcast Mode sends commands from the console to all computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
- Adapter ID
- Firmware Upgradeable
Package Contents

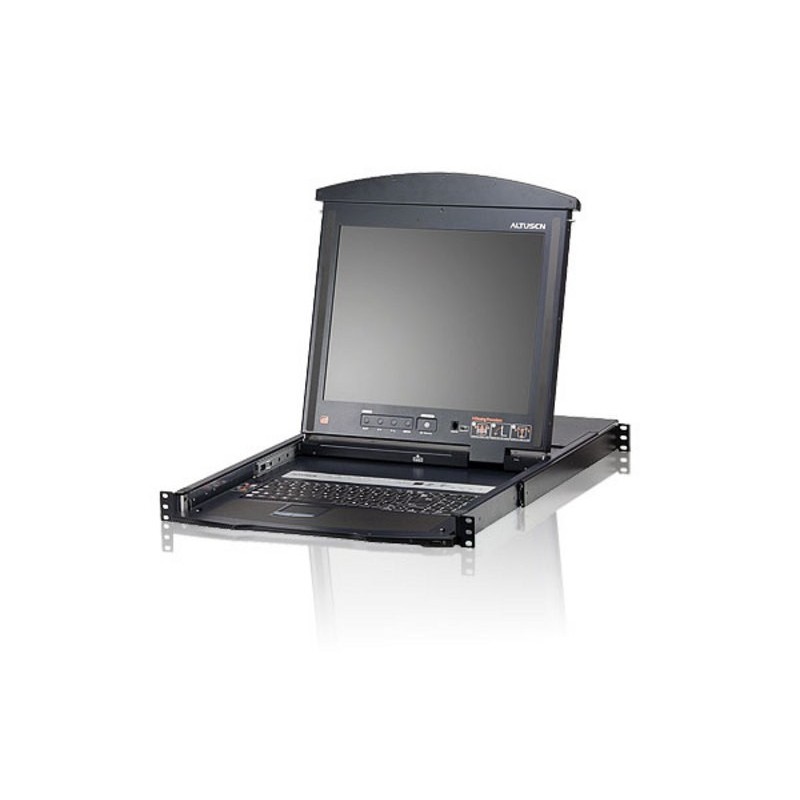

- 1x KL1516A 16-Port Cat 5 High-Density Dual Rail LCD KVM Switch with Standard Rack Mount Kit
- 1x Firmware Upgrade Cable
- 1x 1ADP-0005-005G Power Cord
- 1x User Instructions
AC input frequency |
50/60 Hz |
AC input voltage |
100-240 V |
Colour of product |
Black |
Compliance industry standards |
TAA |
Connectivity technology |
Wired |
Display |
LED |
Display diagonal |
482.6 mm (19 ") |
Height |
44 mm |
I/O ports |
1 x SPHD-18 M
2 x USB Type A
16 x SPHD-15/17
1 x DB-25 M
1 x RJ-11 F
1 x 3-prong AC |
Keyboard port type |
PS/2 |
LED indicators |
Yes |
Material |
Metal |
Maximum resolution |
1280 x 1024 pixels |
Operating temperature range (T-T) |
0 - 40 °C |
Ports quantity |
16 |
Power consumption (typical) |
28 W |
Rack mounting |
Yes |
Relative humidity |
0 - 80 % |
Scan interval |
255 s |
Storage temperature range (T-T) |
-20 - 60 °C |
USB 2.0 ports quantity |
2 |
USB powered |
No |
Width |
482 mm |
Specific References
- EAN13
- 0672792400582
