Convert an RS232 data signal to either RS485 or RS422

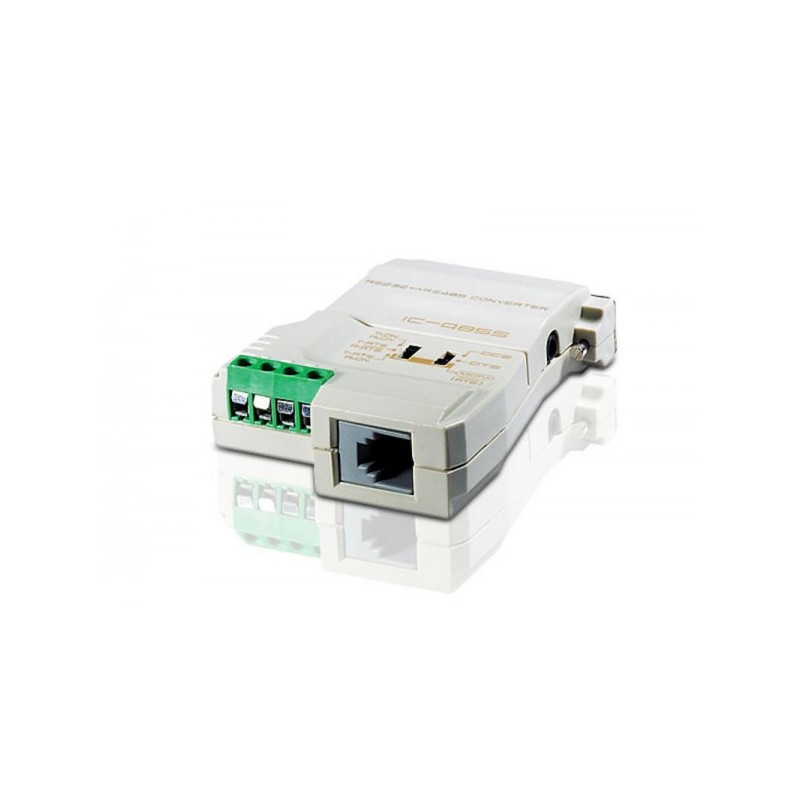

IC485S [IC485SIS] converts RS-232 serial interfaces to RS-485/422 serial interfaces for trouble-free data transmission. This 2-in-1 converter converts RS232C to either the RS-485 or RS-422 interface, and is DCE/DTE mode selectable at the flip of a switch, making it easy to change line signals! The RS232 serial interface converter offers several convenient features including mode selection, point-to-point multidrop configuration and RS 485/422 monitor mode, and is constructed of high grade plastic for enhanced durability. The converter supports connections of up to 4000 ft, with data transfer rates of up to 1MB/sec. Suitable for a broad range of operating environments, this adapter includes an optional 9V power adapter or can draw power on its own, and is backed by StarTech.com’s 2-year warranty and FREE lifetime tech support.
The StarTech.com Advantage
- Can be used to monitor RS-485/422 signals
- 2-in-1 converter! Converts RS232C to either RS-485 or RS-422 with cable length up to 4000 ft!
- Supports point-to-point multidrop configuration and full or half duplex operation
- 2-year warranty and FREE LIFETIME technical support
Host interface |
Serial |
I/O ports |
1x DB-25 F
4x RS-485 / RS-422
1x RJ-11 F |
Mac compatibility |
No |
Maximum operating distance |
1200 m |
Operating temperature range (T-T) |
0 - 50 °C |
Output interface |
RS-232/RS-485/RS-422 |
Power consumption (typical) |
1.35 W |
Power supply type |
DC9V |
Source data-sheet |
Icecat.biz |
Weight |
60 g |
Width |
74.5 mm |
