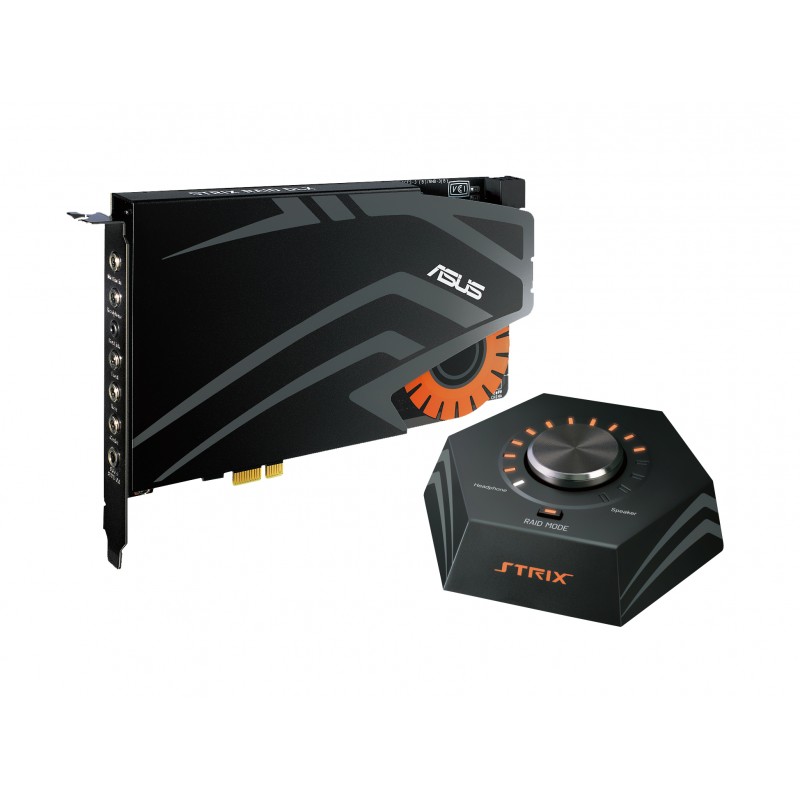

ASUS STRIX RAID DLX
  • ASUS STRIX RAID DLX
  • ASUS STRIX RAID DLX
7.1 PCIe gaming sound card set with an audiophile-grade DAC and 124dB SNR



- Instant-on Raid Mode: Customize in-game audio with one click

- 124dB signal-to-noise ratio (SNR) and audiophile-grade DAC: Enjoy high-fidelity, immersive sound

- Sonic Studio utility: Take full control over loads of sound technologies via an intuitive, one-page interface

- Sonic Radar Pro: Lets you pinpoint the exact location of in-game sounds and enhances critical audio details like enemy footsteps for an aural advantage

- 600ohm headphone amplifier: For enhanced bass and clear, detailed sound



SHARPEN YOUR HEARING

TAKE CONTROL



Strix Raid DLX is a premium sound card set built with audiophile-grade components to satisfy gamers who demand ultimate audio performance. Strix Raid DLX features rich, immersive, and clear sound with an incredible 124dB signal-to-noise ratio (SNR), and a 600ohm headphone amplifier for deep, tight bass. The simple yet powerful Sonic Studio sound utility and control box provides complete sound card control and allows instant in-game audio adjustments.



GAMER-FRIENDLY DESIGN



Instant in-game audio adjustment with Raid Mode

ASUS exclusive Raid Mode can be turned on right in the heat of gaming action with just one-click on the audio control box to provide the exact audio adjustment you want. With this powerful combination of Raid Mode and the audio control box, gamers no longer need to pause the game and open sound software to adjust their audio, ensuring they never miss a single moment of gaming action.



Gamers can save their favorite or most frequently-used audio adjustments — Equalizer, Bass Boost, Virtual Surround, and Mic Volume — into custom presets that they can instantly turn on or off with the dedicated Raid Mode button on the audio control box. It also has a convenient knob to adjust the Raid Mode intensity level.



TOTAL AUDIO CONTROL



Take complete control of your audio with Sonic Studio



Strix Raid DLX features the latest Sonic Studio software suite for full control over every sound technology, from equalization (EQ) to 7.1-speaker level-balancing. Sonic Studio has a single navigation page that puts everything in front of you, with an intuitive point-and-click interface that allows you to pre-set audio profiles to suit different audio requirements.



Hearing is Believing



Put on your headset and choose one of the modes below to experience Sonic Studio's sound effects.



Gain the gaming edge with Sonic Radar Pro!



Modern games are more than graphics – precise audio positioning gives gamers a distinct edge over enemies. That's why Strix Raid DLX includes Sonic Radar Pro, an ASUS exclusive technology that visualizes and enhances in-game sounds, giving you a vital edge in first-person shooters.



Fire up your favorite game and Sonic Radar Pro displays a ‘radar' HUD (heads-up display) that pinpoints in-game actions relative to your position, so you'll know exactly where you are on the battlefield and what's happening around you!



Multiple radar-enhancers can be enabled in order to visualize and boost specific sounds such as footsteps, gunshots, and call-outs. Sounds are plotted on the 360-degree HUD, even when there's no clear line of sight, so invisibility is no barrier to pinpointing opponents, giving you a distinct advantage over other players!



What's more, Sonic Radar's on-screen appearance and position is completely customizable, so you can make it work just the way you want, with whatever game you want!



124dB signal-to-noise ratio (SNR) for extraordinary audio clarity



High-fidelity grade ES9016S DAC delivers unrivalled, jitter-free sound and an exceptional 124dB signal-to-noise ratio (SNR) for 64 times greater clarity than average onboard audio.



Sound detail boost with 600ohm integrated headphone amplifier



The powerful TI LME49600 headphone amp lets you experience the full potential of your gaming headset. A 600ohm headphone amplifier provides enhanced bass and clear, detailed sound.



Hyper Grounding Technology



Noise-blocking multi-layer PCB developed with decades of ASUS professional layout expertise.



Lighting effects



Express your gaming style with Strix Raid DLX. Its owl-eye design even lights up in the dark.



Unleash your gaming instincts



Taken from the ancient Roman and Greek word for owl, Strix means the keenest hearing and sharpest eyesight. Strix means feeling your environment so that you detect and react to the slightest movement. Strix means survival on the very edge of instinct. Strix is in your blood, as it is in ours.
Audio output channels7.1
Audio quality24 bit
Depth190 mm
Digital-to-Analog Conversion (DAC)24-bit/192KHz
Frequency range10 - 48000 Hz
Full-Scale voltage5.65 V
Headphone outputs1
Height22 mm
Host interfacePCI-E
InternalYes
Line-inYes
Line-in Signal-to-Noise Ratio (SNR)124 dB
Line-in Total Harmonic Distortion (THD)0.000316 %
Line-out Signal-to-Noise Ratio (SNR)117 dB
Line-out Total Harmonic Distortion (THD)0.0009 %
Microphone inYes
Minimum hard disk space60 MB
Minimum RAM256 MB
Processor modelHigh-Definition Sound
Quick start guideYes
S/PDIF out portYes
Subwoofer outYes
Volume controlRotary
Width130 mm
Windows operating systems supportedWindows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Wind

90YB00H0-M1UA00.pdf

ASUS STRIX RAID DLX Data Sheet

Download (678.64k)

Similar products

  • ASUS STRIX SOAR
    ASUS STRIX SOAR
  • ASUS STRIX RAID PRO
    ASUS STRIX RAID PRO
  • ASUS Xonar U7 MKII
    ASUS Xonar U7 MKII

ASUS STRIX RAID DLX

124dB SNR, 384KHz/24bit, Channel 8, Sonic Studio,1-In/5-Out 3.5mm jack, S/PDIF, Box Link

90YB00H0-M1UA00

In Stock

£204.71
£170.59 Ex VAT.
