Industry’s most space-optimized modular UPS solutions
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
| Battery type | Lead-Acid |
| Colour of product | Black, Silver |
| Compatibility | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE |
| Dimensions (WxDxH) | 472 x 688 x 838 mm |
| Emergency Power Off (EPO) | Yes |
| I/O ports | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) |
| Input connection type | Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Interface | DB-9 RS-232, Smart-Slot |
| Nominal input voltage | 230 V |
| Nominal output voltage | 16000 V |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating relative humidity range | 0 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output connections | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 |
| Output power | 11200 W |
| Output power capacity (VA) | 16000 VA |
| Output voltage note | 220: 230, 240 |
| Package dimensions (WxDxH) | 599 x 997 x 1054 mm |
| Package weight | 340450 g |
| Power supply input frequency | 45 - 65 Hz |
| Replacement battery cartridge | SYBT5 |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage relative humidity range | 0 - 95 % |
| Storage temperature (T-T) | -15 - 45 °C |
| Storage temperature range (T-T) | -15 - 45 °C |
| Typical backup time at full load | 7.5 min |
| Typical backup time at half load | 20.3 min |
| Weight | 286820 g |
| Output power capacity | 16000 VA |
| Audible alarm(s) | Yes |
Similar products
-
APC 60kW 400V MAIN SERV. BYPASS PANEL
-
APC 80KW 400V MAIN SERV. BYPASS PANEL
-
APC SY16K48H-PD
-
APC Symmetra PX 32kW Scalable to 160kW, 400V
-
APC SY32K48H-PD

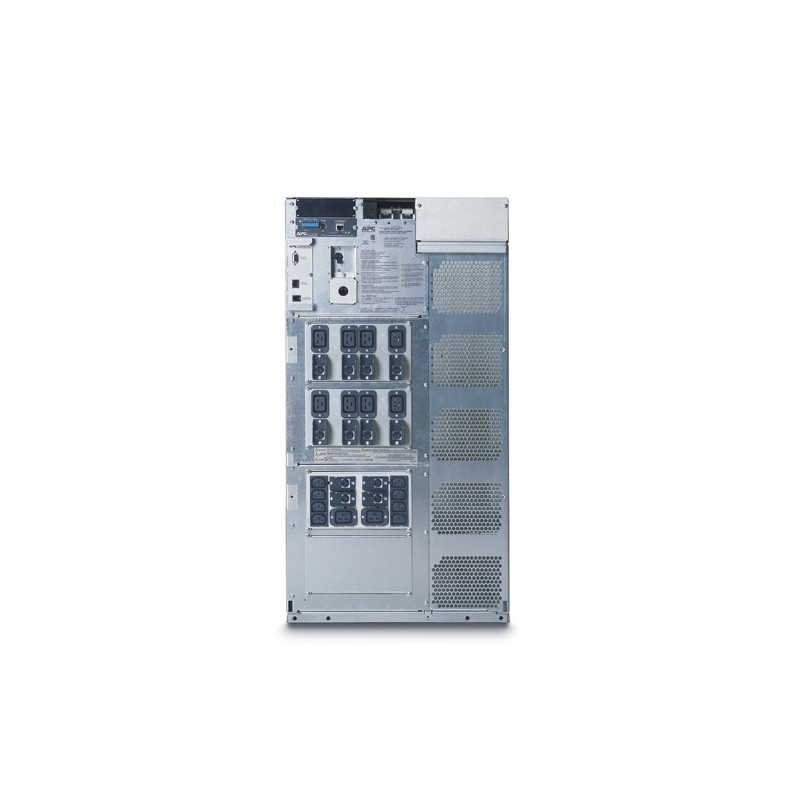

APC Symmetra LX 16KVA on-line
APC Symmetra LX 16kVA Scalable to 16kVA N+1 Rack-mount 220 230 240V or 380 400 415V
SYA16K16RMI
Out of Stock
£20,006.96
£16,672.46 Ex VAT.
