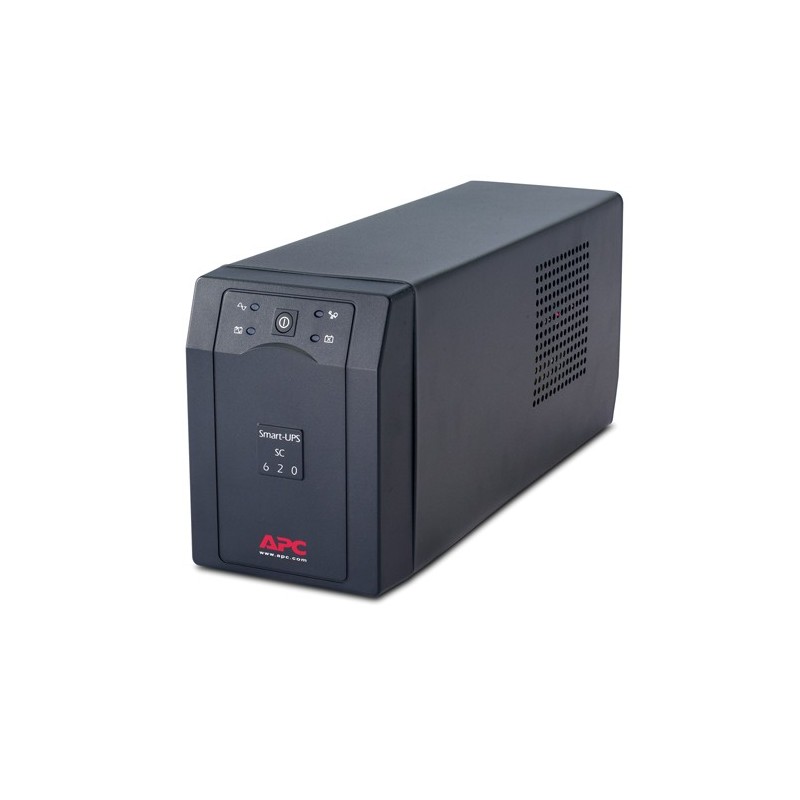

APC SC620I Smart-UPS SC 620VA 230V
  • APC SC620I Smart-UPS SC 620VA 230V
  • APC SC620I Smart-UPS SC 620VA 230V

Please Note, this product is not for consumer use in the European Union.

APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.
AC outlet types C13 coupler
AC outlets quantity 4 AC outlet(s)
Auto-restart Yes
Automatic battery test Yes
Automatic Voltage Regulation (AVR) Yes
Battery capacity 132 VAh
Battery life (max) 5 year(s)
Battery recharge time 5.5 h
Battery replacement alarms LED
Battery technology Sealed Lead Acid (VRLA)
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Cables included RS-232
Certification REACH, PEP, EOLI
Colour of product Grey
Depth 375 mm
Dimensions (WxDxH) 119 x 368 x 168 mm
Efficiency 97.4 %
Emergency Power Off (EPO) No
Form factor Tower
Height 168 mm
Input connection type IEC-320-C14 inlet
Input connections IEC-320-C14
Interface DB-9 RS-232
LED indicators Yes
Manual Yes
Noise level 45 dB
Nominal input voltage 230 V
Nominal output voltage 230 V
Non-operating altitude 0 - 15000 m
Number of output IEC jumpers 2
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 0 - 95 %
Operating relative humidity range 0 - 95 %
Operating temperature (T-T) 0 - 40 °C
Operating temperature range (T-T) 0 - 40 °C
Output connections IEC 320 C13
IEC 320 C13
IEC Jumpers
Output power 390 W
Output power capacity (VA) 620 VA
Package depth 508 mm
Package dimensions (WxDxH) 262 x 508 x 318 mm
Package height 318 mm
Package weight 13180 g
Package width 262 mm
Power supply input frequency 50/60 Hz
Quantity per pallet 12 pc(s)
Replacement battery cartridge RBC4
RoHS compliance Yes
Serial interface type RS-232
Serial ports quantity 1
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 0 - 95 %
Storage relative humidity range 0 - 95 %
Storage temperature (T-T) -15 - 45 °C
Storage temperature range (T-T) -15 - 45 °C
Surge energy rating 320 J
Surge protection Yes
Surge protection features Digital Subscriber Line (DSL),Fax,Modem,Network
Typical backup time at full load 5.5 min
Typical backup time at half load 15.8 min
Waveform Sine
Weight 12270 g
Width 119 mm
Output power capacity 620 VA
UPS topology Line-Interactive
Audible alarm(s) Yes
Hold time (max) 2 ms
Software CD Yes
Audible alarm modes Low battery alarm,Overload alarm
Serial interface Yes

Specific References

EAN13
7313042226370

APC Smart-UPS SC620I

APC Smart-UPS SC, 620VA/390W, Input 230V/Output 230V, Interface Port DB-9 RS-232
Out of Stock
£302.76
Tax excluded
Reference: SC620I
Quantity
