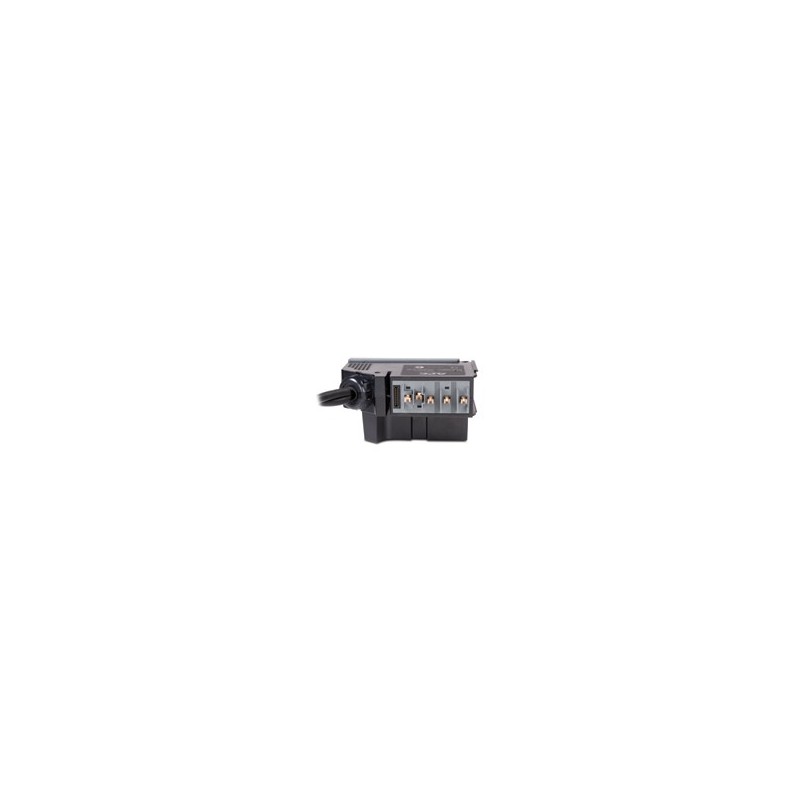

APC PDM2316IEC-3P30R-1

400V In/230V Out, 3PH, 16A, 3 x IEC 309, 1 x 300cm & 1 x 360cm & 1 x 420cm Cord, Web/SNMP

More details

PDM2316IEC-3P30R-1

Out of Stock

Power Dist. Mod. 3X1 Pole 3 Wire RCD 16A 3XIEC309 300cm, 360cm, 420cm A touch-safe Power Distribution Module (including ... Read More

Free tester with every 5 boxes of cable

New product

£908.24 Inc. VAT

£756.86

Checkout

  • More Info

  • Details

  • Spec Sheet

Power Dist. Mod. 3X1 Pole 3 Wire RCD 16A 3XIEC309 300cm, 360cm, 420cm



A touch-safe Power Distribution Module (including circuit breaker, power cord, power connection, and circuit monitoring) that eliminates the need for hot work or shutdowns during expansion of the power distribution system.



Built-in Web/SNMP management

Full-featured management via a Web browser as well as comprehensive management from a Network Management System.



Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.



Smallest footprint

Minimizes your real estate expenses



System mobility

PDU equipment can easily be relocated to accommodate a changing data center environment.



Local and web-based monitoring

Status available to customers both in the data center and remotely



Multiple distribution options

Superior design flexibility enables a wide range of customer requirements to be addressed.



LED status indicators

Quickly understand unit and power status with visual indicators.



Modular Power Accessories Features & Benefits



Safety

Enhance user safety with isolation at all touch points and with positive locking mechanisms that reduce the risk of accidental disconnection



Manageability



Power monitoring

Measure and monitor power consumption and usage with branch circuit monitoring and output metering, which are included at no extra cost



Quick status information LEDs

Access status information about the performance of the Power Distribution Module



Convenience



Toolless installation of breakers



Install factory-assembled Power Distribution Modules in under ten minutes - no tools are required



Global product offering

Standardization of the power distribution system across all corporate locations is easy - a variety of 1-phase and 3-phase Power Distribution Modules address the unique power requirements of data centers around the world
CertificationCE,VDE
Colour of productBlack
Dimensions (WxDxH)432 x 406 x 254 mm
Input frequency50 Hz
LED indicatorsYes
Management platformWeb/SNMP
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Nominal output voltage230 V
Non-operating altitude0 - 4500 m
Operating altitude0 - 3000 m
Operating relative humidity range0 - 95 %
Operating temperature range (T-T)0 - 30 °C
Output connections3 x IEC 309
Package weight7700 g
PDU typesMetered, Monitored
Source data-sheetIcecat.biz
Storage relative humidity range0 - 95 %
Storage temperature range (T-T)-15 - 40 °C
EAN0731304285915
ManufacturerAPC
