The SPBD20DUAL is a hot-swappable, 2 channel bi-directional transceiver module offering connectivity in a flexible, small form-factor. It is compliant with the latest Gigabit Ethernet standards, as well as the CSFP Multisource Agreement (MSA).
| Cable type | fiber optic |
| Colour of product | Metallic |
| Data transfer rate (max) | 1000 Mbit/s |
| Fiber optic connector | LC |
| Fiber ports quantity | 2 |
| Full duplex | Y |
| Hot-swap | Y |
| Interface type | SFP |
| Maximum transfer distance | 20000 m |
| Number of products included | 1 pc(s) |
| Operating temperature (T-T) | -40 - 185 °F |
| Plug and Play | Y |
| Tx power (max) | -3 dBmW |
| Tx power (min) | -8 dBmW |
| Digital Diagnostics Monitoring (DDM) | Y |
| RX sensitivity | -23 dB |
| Tx wavelength (max) | 1490 nm |
| Link budget | 15 dB |
| Rx wavelength (max) | 1310 nm |
| Single-mode fiber (SMF) supported | Y |

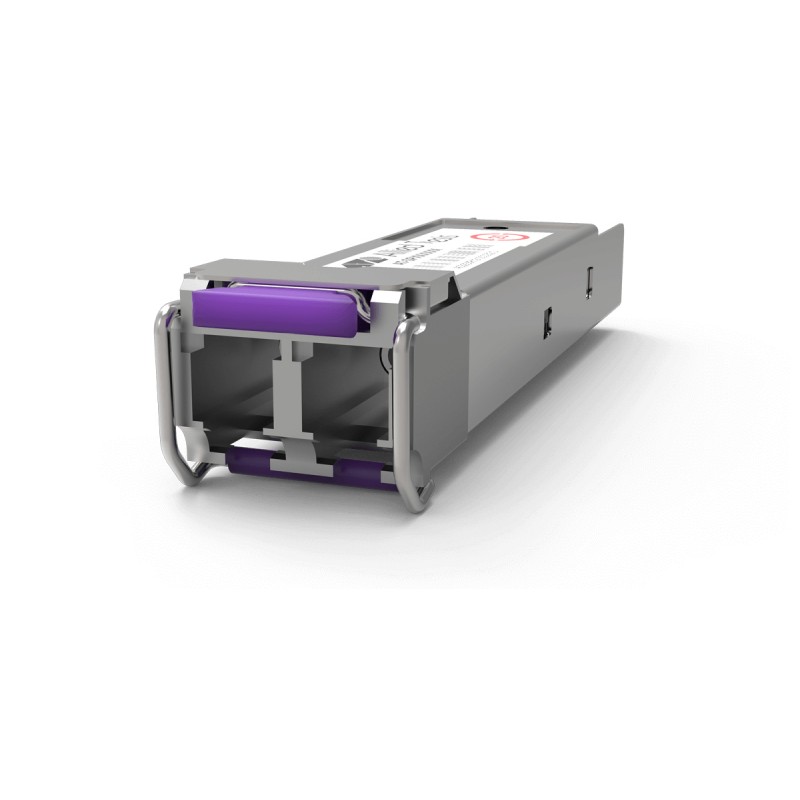

Allied Telesis AT-SPBD20DUAL-14
1000BX (LC) single-mode, 2 channel BiDi CSFP, 1490Tx/1310Rx, 20km
£621.94
£518.28 Ex. VAT
1000BX (LC) single-mode, 2 channel BiDi CSFP, 1490Tx/1310Rx, 20km
