  4. Allied Telesis AT-XEM-24T

Images are for illustrative purposes only.

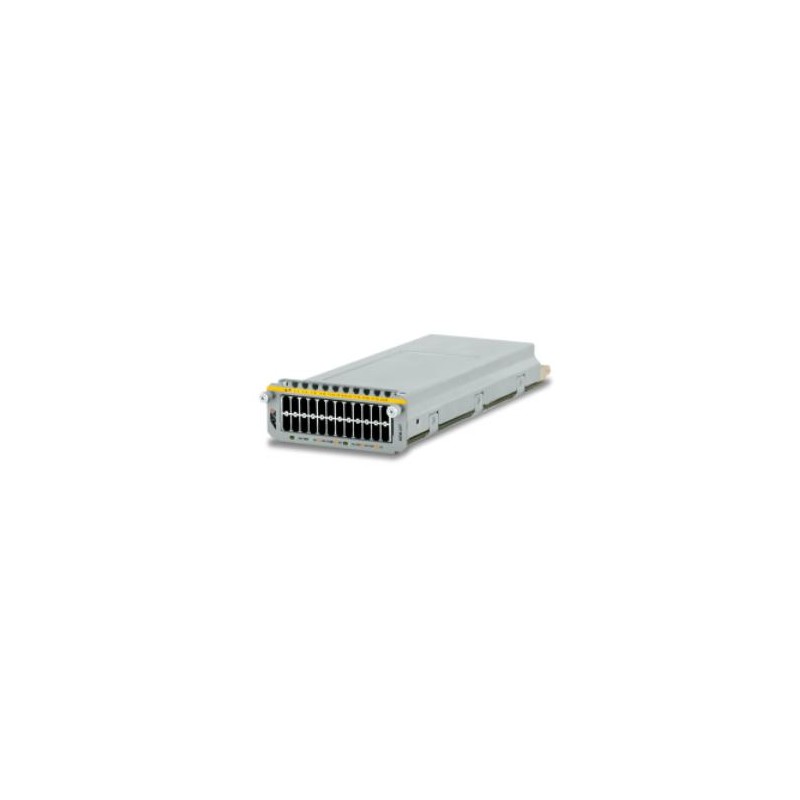

Allied Telesis AT-XEM-24T

Expansion Module, 24 x 10/100/1000T RJ.5, f / SwitchBlade x908 / x900 Series

More details

AT-XEM-24T

Out of Stock

Extended Mode is a new feature on the SwitchBlade x908 (available from Allied Telesis AlliedWare Plus TM version 5.4.2) to ... Read More

Free tester with every 5 boxes of cable

New product

£2,227.47 Inc. VAT

£1,856.23

Checkout

  • More Info

  • Details

  • Spec Sheet

Extended Mode is a new feature on the SwitchBlade x908 (available from Allied Telesis AlliedWare Plus TM version 5.4.2) to increase the performance of the switch. These improvements make the product more suitable for large Layer 2 networks or core routing applications.



XEM expansion modules can be used in a variety of configurations to provide tailored solutions that meet wide-ranging physical networking requirements. Whatever the network requirements, Allied Telesis has a XEM that is ideal for the job.
CertificationUL, cUL, TUV\nRoHS
CompatibilityAllied Telesis SwitchBlade x908 / x900
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Dimensions (WxDxH)109 x 253 x 45 mm
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
I/O ports24 x RJ.5
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Operating relative humidity (H-H)5 - 80 %
Operating temperature (T-T)0 - 40 °C
Package weight1400 g
SafetyUL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-25 - 70 °C
Weight820 g
ManufacturerAllied Telesis

AT-XEM-24T.pdf PDF
