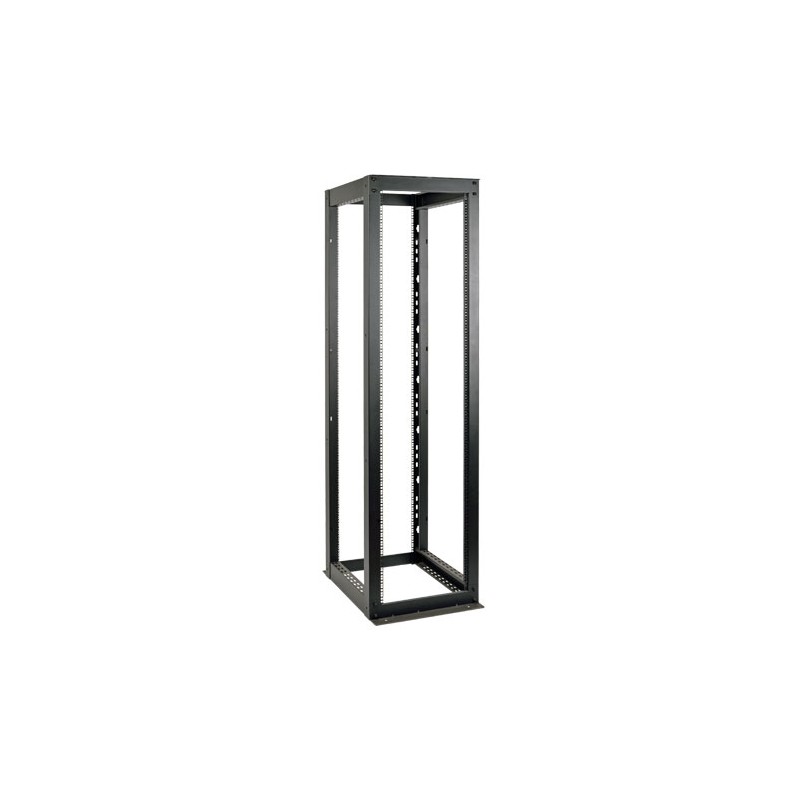

Tripp Lite's 52U Heavy-Duty 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST52HD is a simple solution for housing IT equipment in secure environments and other areas that don’t require a lockable rack solution. This 52U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 1360 kgs (3000 lbs.) The SR4POST52HD comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side. The open design of the SR4POST52HD provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST52HD supports equipment depths up to 35 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers. The optional SRCASTERHDKIT Heavy-Duty Rolling Caster Kit adds mobility to the SR4POST52HD. The rack supports rolling loads of 1360 kgs (3000 lbs) The SR4POST52HD also supports optional side panels with the SR52SIDE4PHD, a set of two half-size side panels that add a finished look to end-of-row racks in your data center.



- 52U Heavy-Duty 4-post open frame rack

- Black steel with square, numbered mounting holes

- Toolless button holes to accept PDUs or cable managers



- Weight capacity of 1360 kgs (3000 lbs) stationary

- Supports equipment depths up to 35 inches

- Textured, black powder coat finish

- Heavy-duty cold-rolled steel construction

- Numbered mounting positions

- Bolt down provisions

- Self-squaring design

- Easy assembly

- Optional SRCASTERHDKIT heavy-duty caster kit permits mobile use of 1360 kgs (3000 lbs) rolling loads

- Optional SR52SIDE4PHD side panels for end-of-the-row aesthetics
