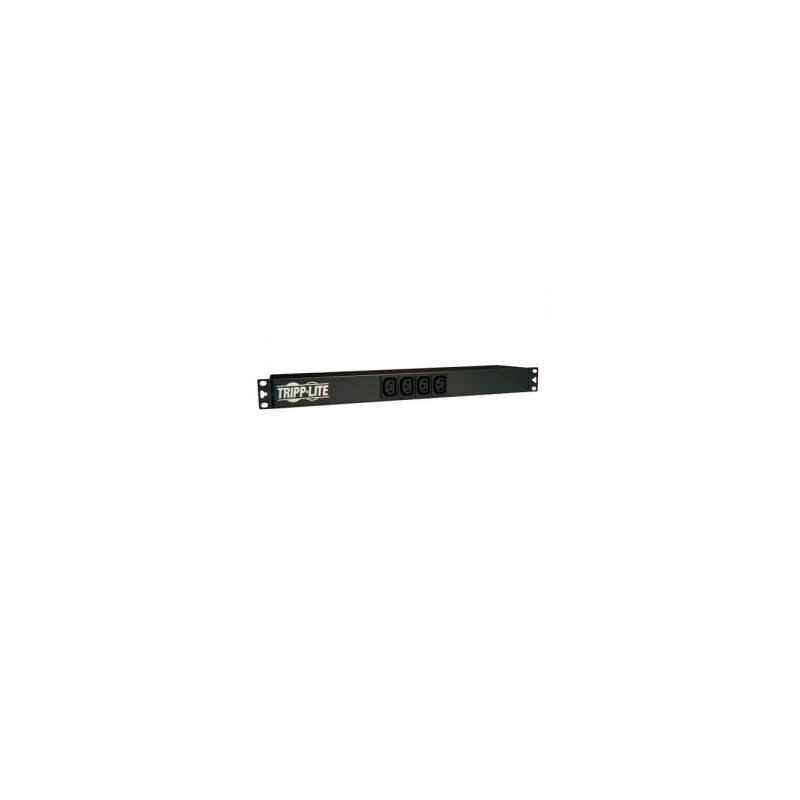

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution. Supplies equipment with continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 16A single phase 100-240V Basic Power Distribution Unit / PDU
- Attached C20 input plug with 15 ft. / 4.5m line cord (connects to C19 100-240V)
- Pack of 5 included C19 adapters with locking retainer clip enables plug conversion to C14 (connects to C13 100-240V), L6-20P (connects to L6-20R 20A 208/240V), L5-20P (connects to L5-20R 20A 120V), 5-20P (connects to 5-20R 20A 120V) and 5-15P (connects to 5-15R 15A 120V)
- 1U horizontal rackmount format installs in one rack space
- 14 outlets (4 C13 front-facing / 2 C19 & 8 C13 rear-facing)
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks
- Back panel grounding lug
Package Includes
- 1U rackmount PDU
- Mounting hardware
- Set of 5 plug adapters
- User manual with warranty information
| Cable length | 3 m |
| Colour of product | Black |
| Dimensions (WxDxH) | 444.5 x 108 x 44.4 mm |
| Input connection type | IEC-C14, NEMA L6-20P, NEMA L5-20P, NEMA 5-20P & NEMA 5-15P |
| Maximum current | 16 A |
| Mounting | Horizontal |
| Operating relative humidity (H-H) | 0 - 95 % |
| Output voltage | 100 V |
| Size | 25.4 mm (1 ") |
| Weight | 1.45 kg |
Specific References
- EAN13
- 0037332127204
Tripp-Lite PDUNV Basic PDU
Tripp-Lite PDUNV, Horizontal, Black, 16 A, 100 V, IEC-C14, NEMA L6-20P, NEMA L5-20P, NEMA 5-20P & NEMA 5-15P, 3 m
£242.66
£202.21 Ex. VAT
Tripp-Lite PDUNV, Horizontal, Black, 16 A, 100 V, IEC-C14, NEMA L6-20P, NEMA L5-20P, NEMA 5-20P & NEMA 5-15P, 3 m
