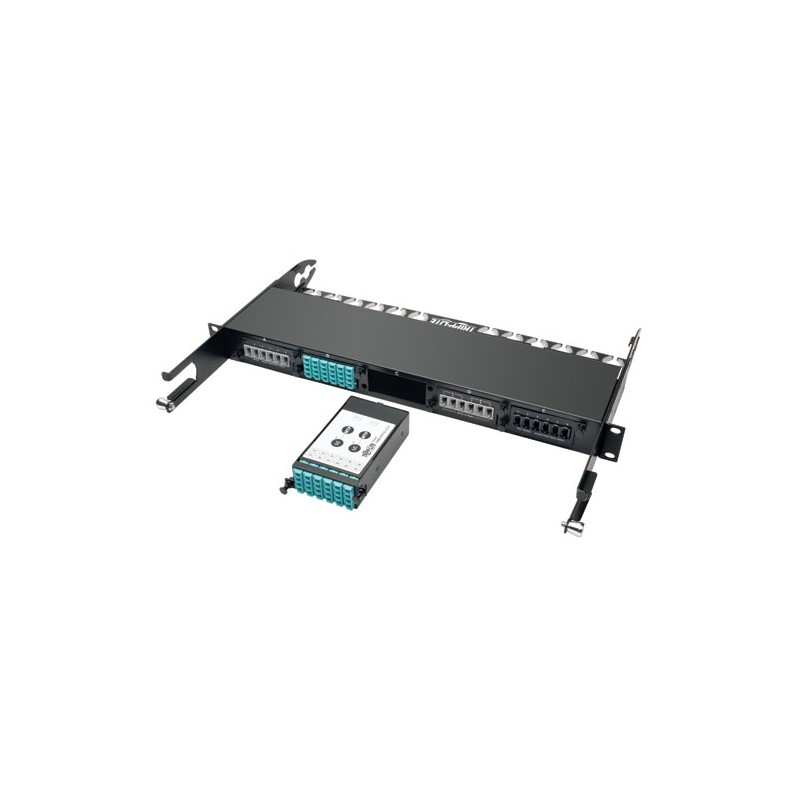

Tripp Lite's N482-2M12-LC12 is a High Density 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. For use with Tripp Lite's N482-01U and N482-02U High Density Fiber Enclosure Panels; up to 5 cassettes per N482-01U, or up to 14 cassettes per N482-02U. Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Complies with IEEE 802.3ae (10Gbe) and ANSI T11.2 (Fibre Channel) requirements, with a maximum insertion loss of 0.35dB falling well under the IEEE 802.3ae maximum channel loss spec of <25dB. Constructed of heavy-duty steel housing.



- High Density Fiber Cassette for use with Tripp Lite N482-01U and N482-02U High Density Fiber Enclosure Panels

- 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber MTP/MPO connections

- Internal OM4 wiring

- Factory terminated connectors reduce the time and labor required of field connector terminations

- Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements

- Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB



- High Density Fiber Cassette for use with Tripp Lite N482-01U and N482-02U High Density Fiber Enclosure Panels

- 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber OM4 MTP/MPO connections

- Installation is simple, with the cassette being easily installed or removed using push / pull tabs to lock or unlock it from the panel; no tools required.

- Factory terminated connectors reduce the time and labor required of field connector terminations

- Complies with IEEE 802.3ae (10GbE) and ANSI T11.2 (Fibre Channel) requirements

- Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB

- Constructed of heavy-duty steel housing
Colour of product Black
Connector(s) LC
Data transfer rate (max) 40000 Mbit/s
Depth 119.4 mm
Ethernet interface type 10 Gigabit Ethernet,40 Gigabit Ethernet
Height 30.5 mm
Material Steel
Networking standards IEEE 802.3ae
Ports quantity 12
Quantity per pallet 1 pc(s)
RoHS compliance Yes
Weight 250 g
Width 88.9 mm

Specific References

EAN13
0037332184542

N482-2M12-LC12.pdf

Tripp Lite 40Gb to 10Gb Breakout Cassette - (x2) 12-Fiber OM4 MTP/MPO to (x12) LC Data Sheet

Tripp Lite 40Gb to 10Gb Breakout Cassette - (x2) 12-Fiber OM4 MTP/MPO to (x12) LC

40Gb to 10Gb Breakout Cassette - (x2) 12-Fiber OM4 MTP/MPO to (x12) LC
Out of Stock
£494.74
£412.28 Ex. VAT
Reference: N482-2M12-LC12
