No Configuration Needed Simply Plug and Play!
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.
Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Robust Parental Controls
If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.
Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
Reliable Access for Up to 32 Devices Simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 1 LAN ports stand ready to provide internet for wired devices like desktop computers.
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.
Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Robust Parental Controls
If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.
Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
Reliable Access for Up to 32 Devices Simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 1 LAN ports stand ready to provide internet for wired devices like desktop computers.
| 3G | Y |
| 4G | Y |
| 4G bands supported | 800,900,1800,1900,2100,2300,2500,2600 MHz |
| AC adapter included | Y |
| Antenna connector type | N-type |
| Antennas quantity | 2 |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Cables included | LAN (RJ-45) |
| Cabling technology | 10/100Base-T(X) |
| Certification | CE, RoHS |
| DC-in jack | Y |
| Depth | 114 mm |
| DHCP client | Y |
| DHCP server | Y |
| DMZ support | Y |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Firewall | Y |
| Firmware upgradeable | Y |
| Height | 36 mm |
| IP address filtering | Y |
| Linux operating systems supported | Y |
| MAC address filtering | Y |
| Mac operating systems supported | Y |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| On/off switch | Y |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Output current | 0.85 A |
| Output voltage | 9 V |
| Package depth | 161 mm |
| Package height | 66 mm |
| Package weight | 450 g |
| Package width | 293 mm |
| Port forwarding | Y |
| Power source type | DC |
| Product type | Tabletop router |
| Quality of Service (QoS) support | Y |
| Quick installation guide | Y |
| Receiver sensitivity | 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm |
| Reset button | Y |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Supported network protocols | IPv4, IPv6 |
| UMTS bands supported | 850,900,2100 MHz |
| Universal Plug and Play (UPnP) | Y |
| USB port | N |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Width | 154 mm |
| Windows operating systems supported | Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP |
| WPS push button | Y |
| Guest access | Y |
| Memory card slot(s) | N |
| Ethernet LAN interface type | Fast Ethernet |
| WAN connection type | RJ-45 |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi band | Single-band (2.4 GHz) |
| Dynamic DNS (DDNS) | Y |
| Product colour | Black |
| Stateful Packet Inspection (SPI) | Y |
| Wireless radio | Y |
| Wireless statistics | Y |
| Port triggering | Y |
| Mobile network generation | 4G |
| Harmonized System (HS) code | 85176990 |
| Antenna design | External |
| Schedule access | Y |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 dBmW |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
Specific References
- EAN13
- 6935364088804

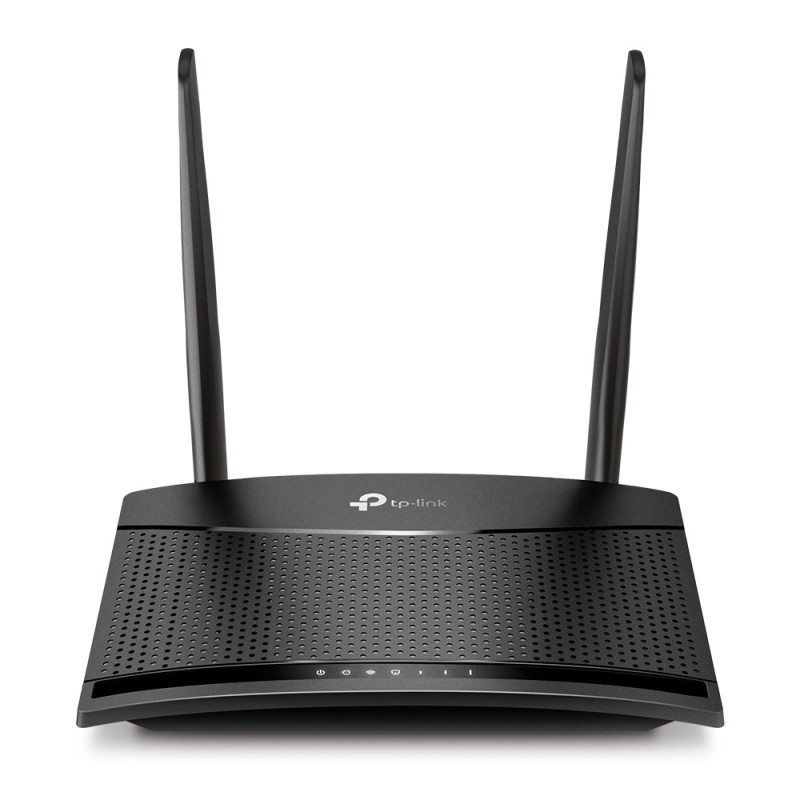

TP-Link TL-MR100
2.4 GHz, 300 Mbps, IEEE 802.11b/g/n, 10/100Mbps LAN RJ-45, 10/100Mbps LAN/WAN RJ-45, 1x Nano SIM, 154×114×36 mm
£61.86
£51.55 Ex. VAT
2.4 GHz, 300 Mbps, IEEE 802.11b/g/n, 10/100Mbps LAN RJ-45, 10/100Mbps LAN/WAN RJ-45, 1x Nano SIM, 154×114×36 mm
