Synology RX1217
  • Synology RX1217
  • Synology RX1217
  • Synology RX1217
  • Synology RX1217
  • Synology RX1217
  • Synology RX1217
  • Synology RX1217
  • Synology RX1217
Synology gives you the flexibility to start with a smaller storage capacity and expand as your business starts to grow. RX1217 and RX1217RP are 12-bay storage expansion units designed to provide seamless capacity expansion for select Synology RackStations.



Volume expansion & backup



When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.



When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations.



Reliable plug-and-use design



Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.



Green & easy to manage



Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.
AC input frequency50/60 Hz
AC input voltage100-240 V
Cables includedAC,InfiniBand
CertificationFCC A, CE A, BSMI A
Chassis typeRack (2U)
Colour of productBlack
Compatible productsSynology RS3617xs
Data transfer rate6 Gbit/s
Depth664 mm
Height88 mm
Host interfaceInfiniBand
Hot-swap drive baysYes
Installed storage drive typeNo
Maximum supported storage capacity120 TB
Noise level54.6 dB
Number of fans3 fan(s)
Number of power supply units1
Number of storage drives supported12
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)5 - 35 °C
Power consumption (typical)68.6 W
Power supply unit (PSU) capacity500 W
RoHS complianceYes
Storage drive interfaceSerial ATA III
Storage drive size2.5/3.5 "
Storage drives installedNo
Storage temperature (T-T)-20 - 60 °C
Supported storage drive typesHDD,SSD
Weight12700 g
Width430.5 mm

RX1217.pdf

Synology RX1217 Data Sheet

Download (436.67k)

Similar products

  • Synology RX1216SAS
    Synology RX1216SAS
  • Synology RX1217RP
    Synology RX1217RP
  • Synology DX517
    Synology DX517
  • Synology RX1217sas
    Synology RX1217sas

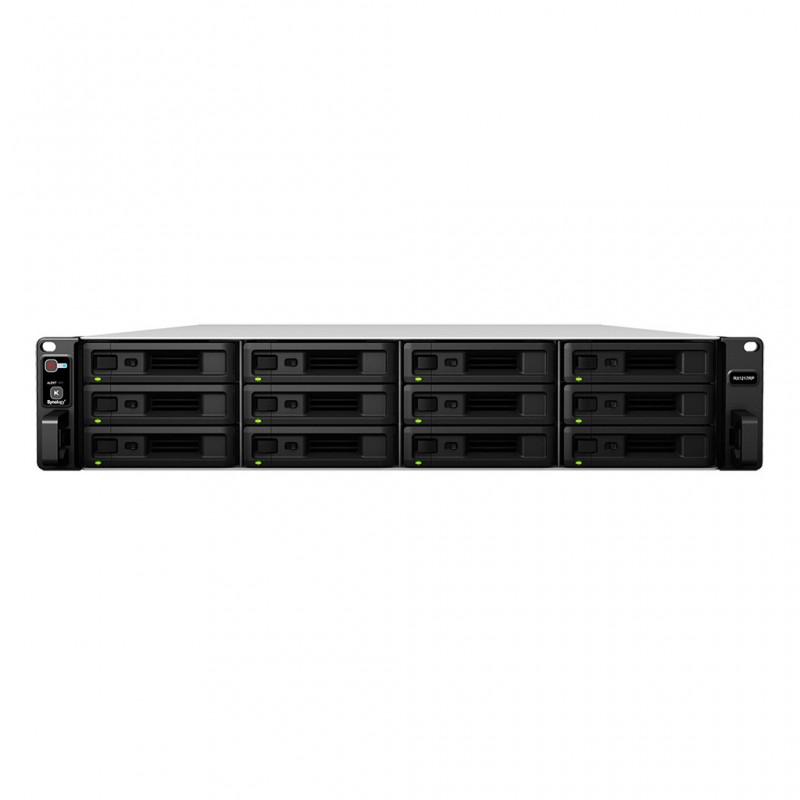

Synology RX1217

12x 3.5"/2.5" HDD/SSD, 88 x 430.5 x 664 mm, 12.7 kg, 500 W

RX1217

Out of Stock

£1,414.67
£1,178.89 Ex VAT.
