Effortless capacity expansion for Synology DiskStation solutions on-the-fly.
5-bay 3.5”/2.5” SATA expansion
Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5” and 3.5” SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.
Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.
Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.
5-bay 3.5”/2.5” SATA expansion
Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5” and 3.5” SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.
Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.
Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.
| AC input frequency | 50/60 Hz |
| AC input voltage | 100-240 V |
| Cables included | AC,eSATA |
| Certification | FCC B, CE B, BSMI B |
| Chassis type | Desktop |
| Colour of product | Black |
| Compatible products | Synology DS1817+, DS1517+ |
| Depth | 233 mm |
| Device class | Small & Medium Business |
| eSATA ports quantity | 1 |
| Height | 157 mm |
| Host ports | 1 |
| Hot-swap drive bays | Yes |
| Installed storage drive type | No |
| LED indicators | Alarm,Power,Status |
| Maximum supported storage capacity | 50 TB |
| Noise level | 21.5 dB |
| Number of fans | 2 fan(s) |
| Number of power supply units | 1 |
| Number of storage drives supported | 5 |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 5 - 40 °C |
| Power consumption (typical) | 29.9 W |
| Power supply unit (PSU) capacity | 200 W |
| RoHS compliance | Yes |
| Storage drive interface | Serial ATA |
| Storage drive size | 2.5/3.5 " |
| Storage drives installed | No |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -10 - 70 °C |
| Supported storage drive types | HDD,SSD |
| Weight | 3910 g |
| Width | 248 mm |
Specific References
- EAN13
- 4711174722679

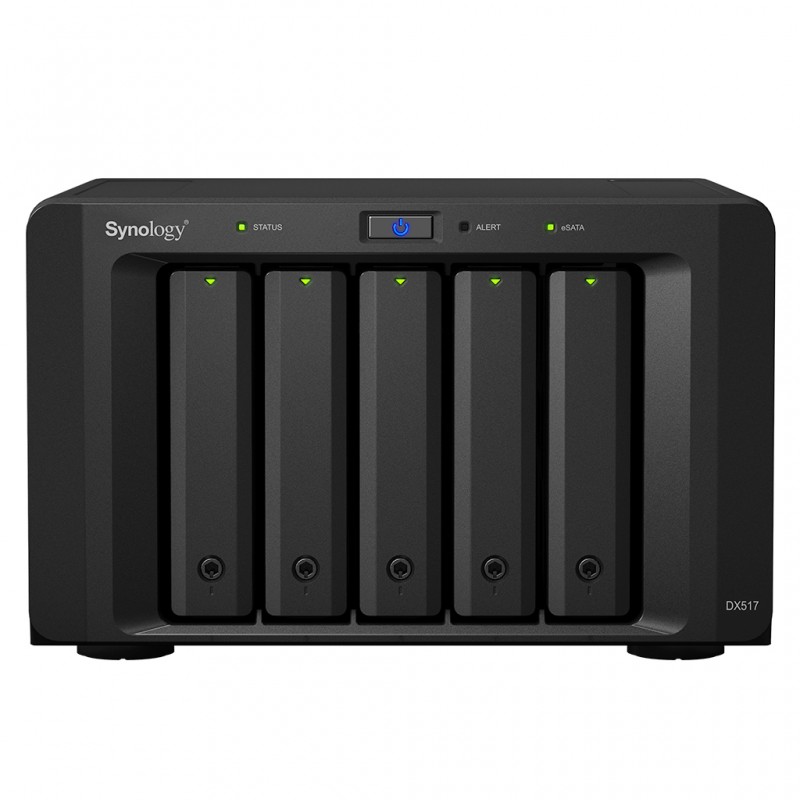

Synology DX517
5x 2.5/3.5" SATA HDD/SSD, eSATA, 21.5 dB, 100-240 V, 50/60 Hz, 200 W, 157 x 248 x 233 mm, 3910 g
£504.98
£420.82 Ex. VAT
5x 2.5/3.5" SATA HDD/SSD, eSATA, 21.5 dB, 100-240 V, 50/60 Hz, 200 W, 157 x 248 x 233 mm, 3910 g
