NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management
The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXM can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.
- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- Quiet desktop operation or rack mounting.
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Easy-to-use Web browser-based management GUI.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.
| 10G support | Yes |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Broadcast storm control | Y |
| Built-in processor | Y |
| Cables included | AC |
| Depth | 206 mm |
| Firmware upgradeable | Y |
| Flash memory | 64 MB |
| Heat dissipation | 160.458 BTU/h |
| Height | 43 mm |
| IGMP snooping | Y |
| Internal memory | 256 MB |
| Jumbo frames support | Y |
| LED indicators | Activity,Fan fail,Link,Power,Speed |
| MAC address table | 32000 entries |
| Mean time between failures (MTBF) | 1059519 h |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x |
| Noise level | 25 dB |
| Non-operating altitude | 0 - 3000 m |
| Number of fans | 2 fan(s) |
| Number of multicast groups filtered | 256 |
| Number of queues | 8 |
| Number of VLANs | 256 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Packet buffer memory | 2 MB |
| Password protection | Y |
| Port mirroring | Y |
| Power consumption (max) | 47 W |
| Power over Ethernet (PoE) | No |
| Power supply included | Y |
| Processor frequency | 1000 MHz |
| Quality of Service (QoS) support | Y |
| Rack mounting | Yes |
| Rack rails | Y |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 140 Gbit/s |
| System event log | Y |
| User guide | Y |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 2080 g |
| Width | 330 mm |
| Jumbo frames | 10000 |
| Installed SFP+ modules quantity | 2 |
| Queue scheduling algorithms | WRR+SP |
| Product colour | Grey |
| DHCP features | DHCPv6 snooping |
| Cloud-managed | Y |

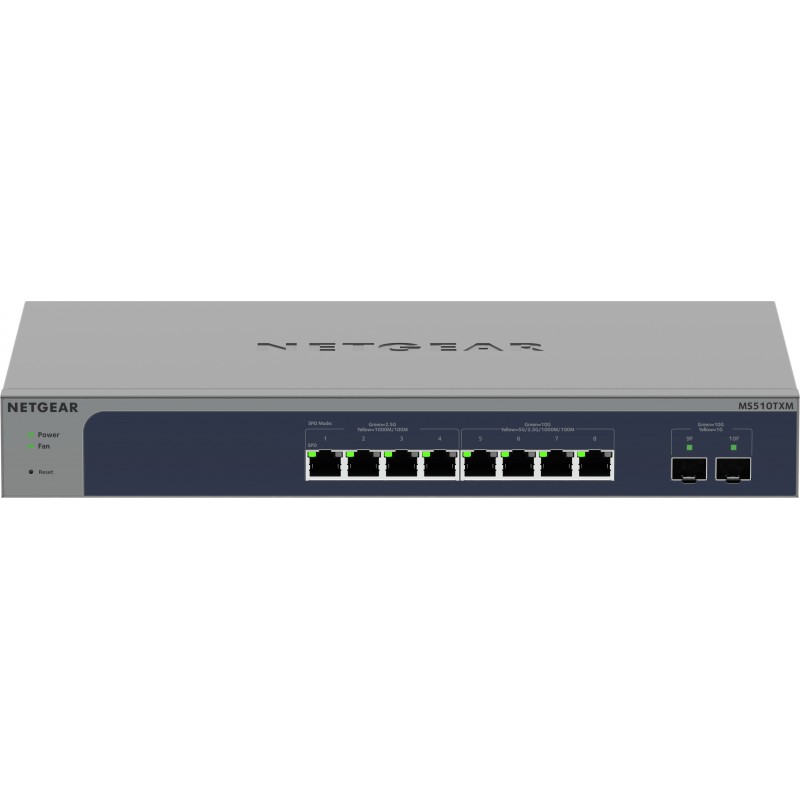

Netgear 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)
Managed, L2+, 4x 1G/2.5G, 4x 1G/2.5G/5G/10G, 2x SFP+, 330.2 x 206.3 x 43.2 mm
£574.14
£478.45 Ex. VAT
Managed, L2+, 4x 1G/2.5G, 4x 1G/2.5G/5G/10G, 2x SFP+, 330.2 x 206.3 x 43.2 mm
