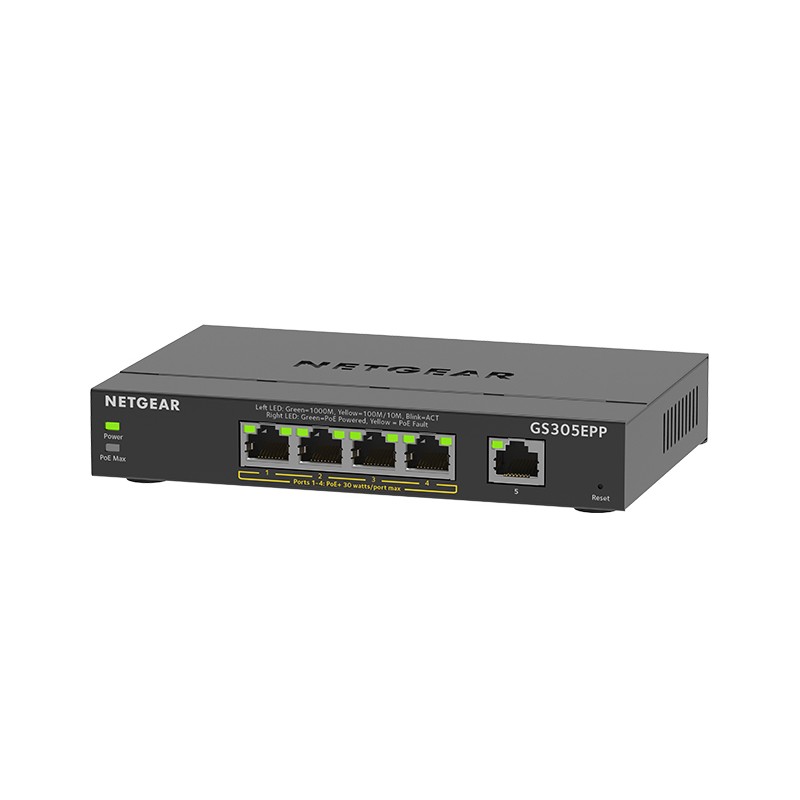

Netgear GS305EPP
  • Netgear GS305EPP
  • Netgear GS305EPP
  • Netgear GS305EPP
  • Netgear GS305EPP
  • Netgear GS305EPP
  • Netgear GS305EPP
  • Netgear GS305EPP
Easy to manage, fundamental network features at an affordable cost for SMBs. GS305EPP offers 120W total power budget to power devices PoE devices such as VoIP phones, IP cameras, wireless access points, etc. New and improved Smart Managed Plus switches Along with the already great Smart Managed Plus features, GS305EPP enhances your business networking experience even more with exciting new features: advanced PoE controls with uninterrupted PoE and more, business-friendly GUI, simplified VLAN and QoS set-up, and multi-language supportWhy GS305EPP? - Cost-effective business networking management features: VLAN, QoS, advanced PoE controls, etc. - Data security and network separation to safeguard your business. - Advanced per port PoE controls (including power allocation override) and remote enable/disable/power cycle. - Smart Managed Plus switch that now provides PoE+ to power devices such as wireless APs, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices.Why 300 Series NETGEAR Smart Managed Plus? - NETGEAR has the largest PoE switch portfolio in the market. - Provides both basic and advanced management features at a cost-effective price for SMBs. - Uninterrupted PoE and PoE controls in a Smart Plus switch. - Reliability of the NETGEAR switches.
10G supportN
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
CertificationCE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
Depth101 mm
Height27 mm
Housing materialMetal
IGMP snoopingY
Input current1.25 A
LED indicatorsActivity,Link,PoE,Power,Speed,System
Link aggregationY
MAC address table4000 entries
Mean time between failures (MTBF)853770 h
Multicast supportY
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Non-operating altitude0 - 3000 m
Number of VLANs64
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory0.192 MB
Password protectionY
Port mirroringY
Power over Ethernet (PoE)Y
Power over Ethernet (PoE) ports quantity4
Power over Ethernet plus (PoE+) ports quantity4
Power supply includedY
Quality of Service (QoS) supportY
Quick start guideY
Rate limitingY
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-20 - 70 °C
Store-and-forwardY
Switch layerL3
Switch typeManaged
Switching capacity10 Gbit/s
Total Power over Ethernet (PoE) budget120 W
VLAN supportY
Wall mountableY
Web-based managementY
Weight400 g
Width158 mm
Jumbo frames9216
Loop protectionY
Queue scheduling algorithmsWeighted Round Robin (WRR)
Product colourBlack
DHCP featuresDHCP client
FanlessY

gs305epp-100uks.pdf

Netgear GS305EPP Data Sheet

Download (587.33k)
