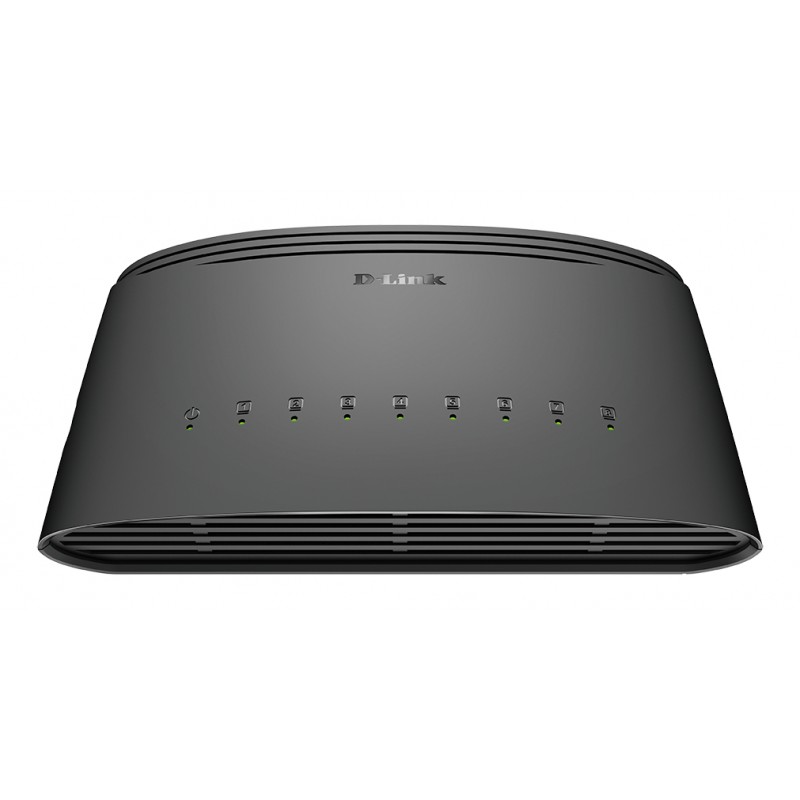

D-Link DGS-1008D/E
  • D-Link DGS-1008D/E
  • D-Link DGS-1008D/E
  • D-Link DGS-1008D/E
  • D-Link DGS-1008D/E
  • D-Link DGS-1008D/E
The DGS-1008D 8-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings, reduces heat, and a longer product life without sacrificing performance or functionality.The DGS-1008D 8-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings, reduces heat, and a longer product life without sacrificing performance or functionality. DGS-1008D provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (Energy Star Level V qualified), minimised use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.Fast and Reliable NetworkingThe D-Link DGS-1008D 8-Port Gigabit Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to eight PCs or other devices. The DGS-1008D also features QoS, which prioritises network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.Conserve EnergyThe 8-Port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports. It also adjusts the amount of power supplied to a port according to the length of the connected Ethernet cable.Environmentally-friendlyThe 8-Port Gigabit Desktop Switch was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimise the use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive.
10G supportN
Auto MDI/MDI-XY
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
DC input voltage5 V
Depth85 mm
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexY
Height34 mm
Housing materialPlastic
Input current1 A
Jumbo frames supportY
LED indicatorsY
MAC address table4000 entries
ManualY
Mean time between failures (MTBF)1046472 h
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Packet buffer memory0.128 MB
Power consumption (max)2.55 W
Power over Ethernet (PoE)N
Quality of Service (QoS) supportY
Rack mountingN
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-10 - 70 °C
Store-and-forwardY
Switch typeUnmanaged
Switching capacity16 Gbit/s
Weight400 g
Width138 mm
Jumbo frames9216
MAC address auto-learning supportedY
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps
Product colourBlack

dgs-1008d.pdf

D-Link DGS-1008D/E Data Sheet

Download (152.39k)
