POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
| 10G support | Yes |
| Access Control List (ACL) | Y |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Built-in processor | Y |
| Cables included | AC,USB Type-C |
| Depth | 400 mm |
| DoS attack prevention | Y |
| Flash memory | 512 MB |
| Flow control support | Y |
| Form factor | 1U |
| Full duplex | Y |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Height | 43.2 mm |
| IGMP snooping | Y |
| Internal memory | 2048 MB |
| Jumbo frames support | Y |
| Latency (1 Gbps) | 2.2 µs |
| Latency (10 Gbps) | 0.7 µs |
| LED indicators | Y |
| Link aggregation | Y |
| MAC address filtering | Y |
| MAC address table | 16000 entries |
| Management protocols | SNMP V1, V2, V3 |
| Memory type | DDR4-SDRAM |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qav,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ak,IEEE 802.3bz,IEEE 802.3u |
| Non-operating altitude | 0 - 3000 m |
| Number of VLANs | 4093 |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 45 °C |
| Packet buffer memory | 32 MB |
| Password protection | Y |
| Power consumption (max) | 348 W |
| Power consumption (typical) | 99 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Power source | AC |
| Power supply | 550 W |
| Power supply included | Y |
| Processor frequency | 1800 MHz |
| Processor model | ARM Cortex-A57 |
| Quality of Service (QoS) support | Y |
| Quick start guide | Y |
| Rack mount kit | Y |
| Rack mounting | Yes |
| Rate limiting | Y |
| Routing protocols | OSPF,OSPFv2,OSPFv3,RIP,RIP-1,RIP-2 |
| Spanning tree protocol | Y |
| Stackable | Yes |
| Static port security | Y |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Store-and-forward | Y |
| Switch layer | L3 |
| Switch type | Managed |
| Switching capacity | 176 Gbit/s |
| Throughput | 130.94 Mpps |
| Total Power over Ethernet (PoE) budget | 1440 W |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 7190 g |
| Width | 440 mm |
| ARP inspection | Y |
| Jumbo frames | 12000 |
| SFP+ module slots quantity | 4 |
| BPDU filtering/protection | Y |
| Loop protection | Y |
| Authentication | Guest VLAN,MAC-based authentication |
| Power over Ethernet (PoE) power per port | 30 W |
| Included power plug types | EU,UK,NA |
| Multicast listener discovery (MLD) snooping | Y |
| Power connector | AC-in jack |
| Root protection | Y |
| GARP VLAN Registration Protocol (GVRP) | Y |
| Access Control List (ACL) egress | 1023 |
| Access Control List (ACL) ingress | 511 |
| Authentication type | RADIUS,TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ),Weighted random early detection (WRED) |
| Product colour | Black |
| Policy-based routing | Y |
| Airflow direction | Front-to-back airflow |
| sFlow | Y |
| Virtual LAN features | MAC address-based VLAN,Private VLAN,Voice VLAN |
| DHCP features | DHCP Option 150,DHCP Option 66,DHCP Option 67,DHCP relay,DHCP server,DHCP snooping |
| Sustainability compliance | Y |
| IGMP proxy | Y |
| IPv4 routes | 512 |
| IPv6 routes | 256 |
| Compliance certificates | BSMI,CCC,CE,Federal Communications Commission (FCC),Low Voltage Directive (LVD) |
| 6to4 tunnel | Y |
Specific References
- EAN13
- 0606449161953

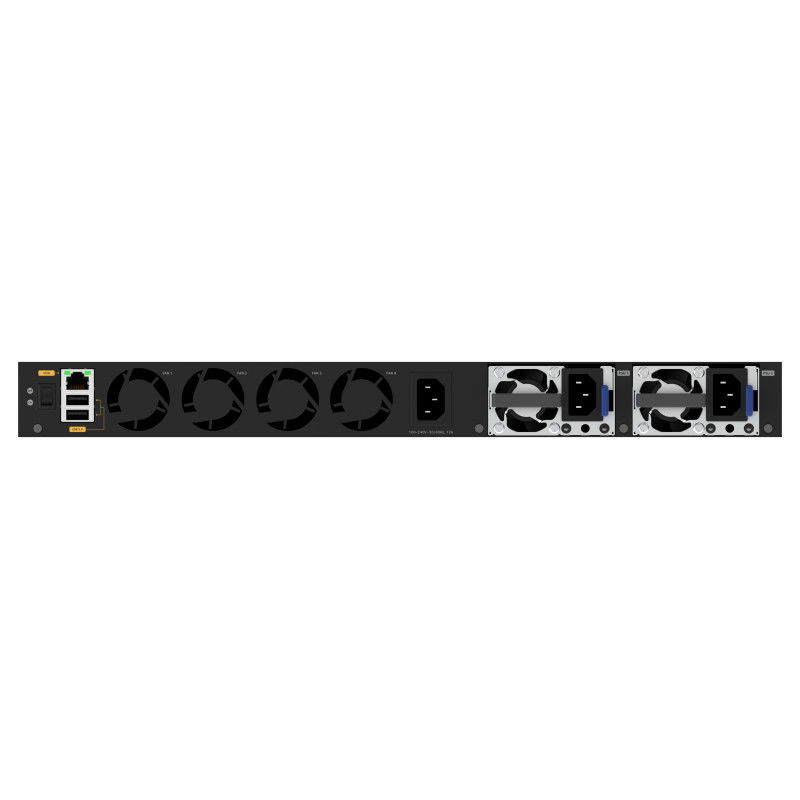

NETGEAR M4350-48G4XF
48 x 1G PoE+, 4 x 10G SFP+, 440 x 400 x 43.2 mm, 7.19 kg
£3,270.36
£2,725.30 Ex. VAT
48 x 1G PoE+, 4 x 10G SFP+, 440 x 400 x 43.2 mm, 7.19 kg
